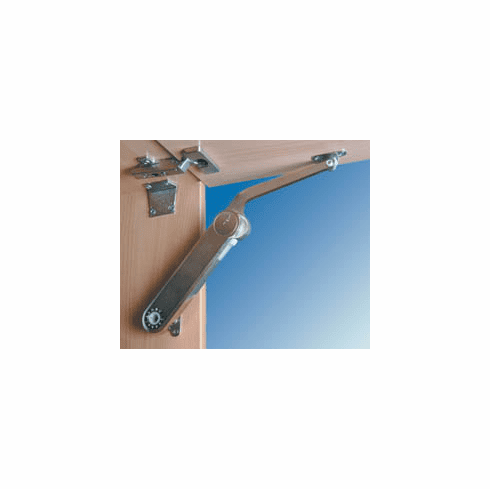

Hafele 373.69.901 Swing-Up Individual Fitting, Maxi For doors made of wood or with aluminum frame, Model C

Product Information

• Description

  Manufacturer: Hafele
  Item: 373.69.901

  Product Title: Swing-Up Individual Fitting, Maxi, For doors made of wood or with aluminum frame, Model C

  Category: Swing-Up Individual Fitting, Maxi, For doors made of wood or with aluminum frame

  Item Details …

  - MAXImal talent: Many different applications can be achieved by varying the mounting point of just a single fitting, e.g. front panels without handles or effortless opening of even large and heavy flaps up to 50 kg (depending on flap height and mounting situation)

  - Multi position stop function: The fitting can be adjusted so that the flap stops in any position.

  - separate soft closing mechanism available as accessory

  - can also be used in combination with Häfele Metalla 510 Push self-opening concealed hinges or concealed hinges with integrated soft-closing mechanism (trial mounting required)

  - Area of application : For doors made of wood or with aluminum frame

  - Version : Individual fitting

  - Material : Zinc alloy

  - Color/Finish cover :

  - Lid material : Wood, Glass, Aluminum frame

  - For cabinet height : 300?–?1,000 mm

  - For lid weight : ?27.3 kg

  - Mounting : right and left hand use

  - Adjustment facility : Holding power adjustment

  - Installation : Without tools (clip system)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Maxi Stay flap fitting installation instructions

  Installation instructions for Maxi stay flap fitting

  LGA quality certificate

  Door Weight Calculation Chart



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.122-9.130.pdf

  Hafele 373.69.901, 373-69-901, 37369901, 373.69


  Specifications/Hafele Catalog - Page# FC9.127: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
