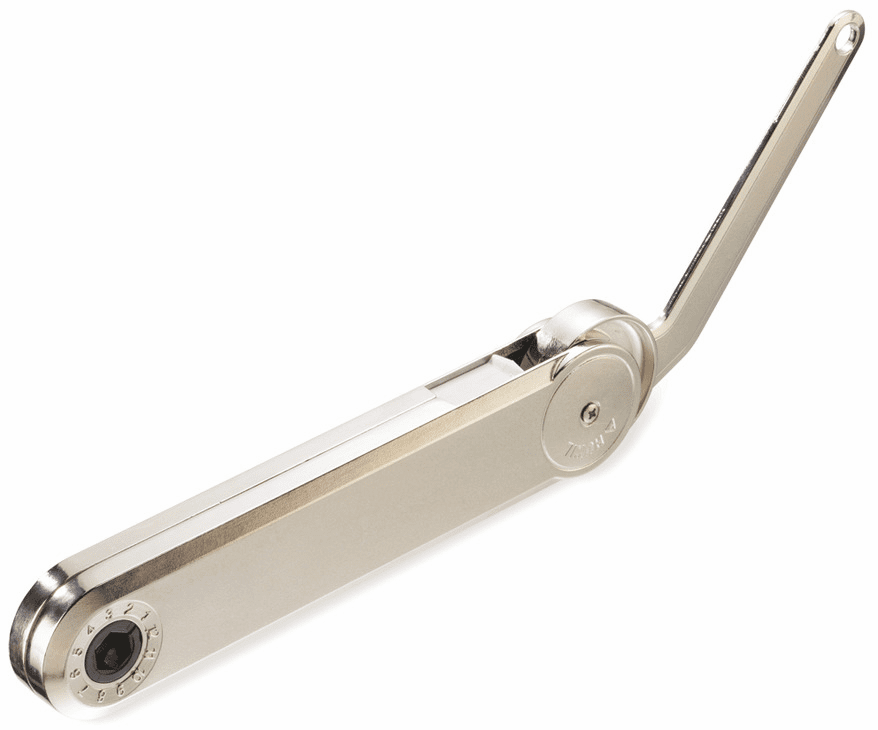

Hafele 373.85.700 Maxi Chest Stay Individual fitting, order cabinet bracket and door bracket separately, Version F

Product Information

• Description

  Manufacturer: Hafele
  Item: 373.85.700

  Product Title: Maxi Chest Stay, Maxi up, for lids made of wood or with aluminum frame, Individual fitting, order cabinet bracket and door bracket separately, Version F

  Category: Maxi Chest Stay, Maxi up, for lids made of wood or with aluminum frame, Individual fitting, order cabinet bracket and door bracket separately

  Item Details …

  - Area of application : For wood or aluminum doors

  - Material : Zinc

  - Color/finish : Nickel plated, safety cap: Grey

  - Lid material : Wood, Aluminum frame

  - Flap type : one-piece

  - Opening angle : 75 °

  - For series drilled holes : System 32

  - Mounting : right and left hand use

  - Installation : Concealed hinges and mounting plates are required for installation. Soft-closing mechanism is recommended. For lids over 600 mm (23 5/8”) wide, use 2 fittings and 2 soft closing mechanisms. Adjust with a 10mm hex key.

  - Installation reference : Trial mounting is recommended.

  - Order reference

  - Cabinet mounting bracket, soft closing mechanism, 10mm hex key, concealed hinges and plates are sold separately.


  Additional Information …

  Piano or other hinges are not recommended.
