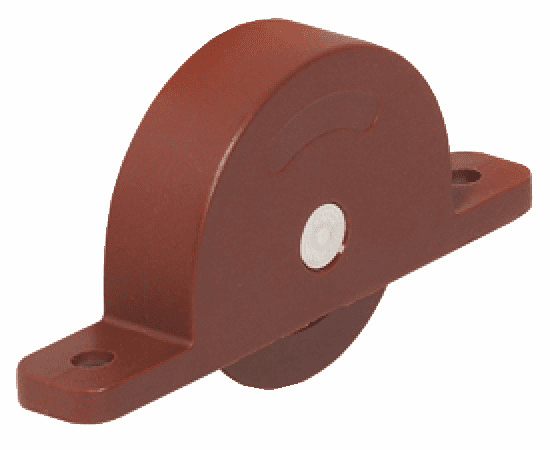

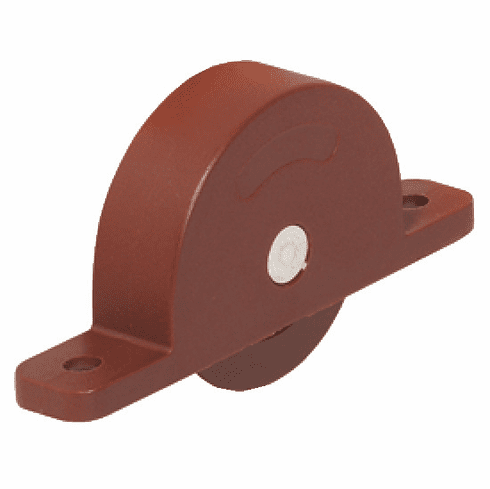

Hafele 404.29.105 Bottom Glide, Recess Mounted Maximum door weight: 44 lbs.

Product Information

• Description

  Manufacturer: Hafele
  Item: 404.29.105

  Product Title: Lower Roller, Recess Mounted, Maximum door weight: 44 lbs.

  Category: Lower Roller, Recess Mounted, Maximum door weight: 44 lbs.

  Item Details …

  - With plastic-coated ball bearing roller

  - Recess mounted

  - For door weight : ?20 kg

  - For door thickness : ?16 mm

  - Color/finish : Brown

  - Door weight max. : 44 lbs

  - Area of application : for small door leaves

  - Material : Plastic

  - Door position : Infront

  - Running gear guided by : Ball bearing

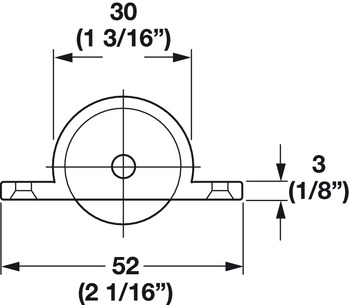

  - Width : 52.00 mm

  - Height : 27.00 mm

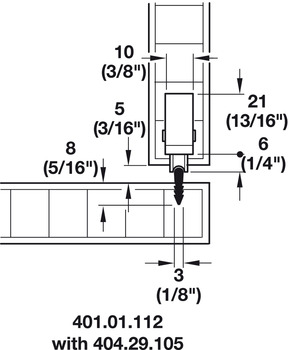

  - Installation : Recess mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.9



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.4-7.4.pdf

  Hafele 404.29.105, 404-29-105, 40429105, 404.29


  Specifications/Hafele Catalog - Page# FC7.4: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Guide Bolt, with Spring Loaded Pin
  • Glide, for press fitting into groove
  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
