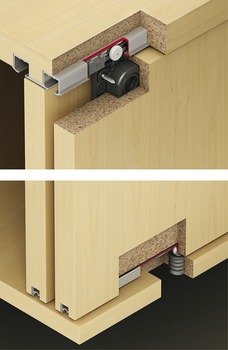

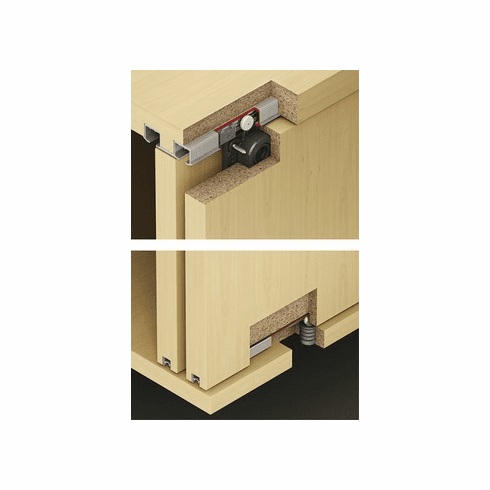

Hafele 405.02.404 Sliding Door Hardware, EKU Clipo 36 H Inslide, Set, Max door weight: 79 lbs (36 kg) For 2 wood doors

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.02.404

  Product Title: Sliding Door Hardware, Hawa Clipo 36 H IF, set, For 2 wood doors

  Category: Sliding Door Hardware, Hawa Clipo 36 H IF, set, For 2 wood doors

  Item Details …

  - Optional soft close mechanism can be inconspicuously integrated into the track so it is not visible and is protected from damage

  - Rattle-free floor guide

  - No guide rails in the bottom of the cabinet

  - Tool-less clip-on hardware allows for quick and easy door mounting

  - Number of doors : 2.00

  - Soft closing mechanism : with clip-in door stopper

  - For door thickness : 19?–?25 mm

  - For door width : ?1,000 mm

  - For door weight : ?36 kg

  - Running position : Top

  - Number of rollers : 4.00

  - Height adjustment : ±2 mm

  - Running gear guided by : Friction bearing

  - For door material : wood

  - For door thickness max. : 1"

  - For door height (inches) : Max: 7' 2 5/8"

  - For door width (inches) : Max: 3' 3 3/8"

  - For door thickness min. : 3/4"

  - Height adjustable :

  - Weight (pound) : Max. door: 79 lbs.

  - Cabinet version : with sliding doors with zero clearance

  - Set : Set without tracks

  - Area of application : For 2 doors

  - For door height : ?2,200 mm

  - Door stopper : Top clip-in door stopper, for sliding into running track

  - Material/finish : Housing: PlasticRunning gear: Zinc alloyGuide: PlasticRollers: PlasticAxis: Steel

  - Adjustment facility : Height adjustment: ±2 mm, Height adjustment +/- 2 mm (1/16")

  - Door adjustment via : eccentric screw

  - Type of opening : linear

  - Number of doors per system max. : 2 to 3

  - Order reference

  - Please order running and guide tracks separately. Please note the door thickness specification with double running tracks.

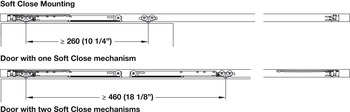

  - Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.

  - Supplied with:

  - 4 Running gears

  - 4 Housing pieces

  - 1 soft stop

  - 2 guides

  - 4 track stoppers
