Hafele 405.90.032 Dual Top Track, EKU Clipo 16 H Inslide & Mixslide Aluminum, 8' 2 7/16"

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.90.032

  Product Title: Dual Top Track, Hawa Clipo 16 H Inslide & Mixslide, for Hawa Clipo, Aluminum, 8' 2 7/16"

  Category: Double running track, top, for screw fixing, for Hawa Clipo

  Item Details …

  - Color/finish : blank

  - Cabinet top panel thickness min. : 19.00 mm

  - Cabinet top panel thickness min. : min. 1 3/16"

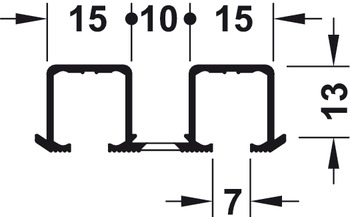

  - Dim. (W x H) : 40 x 13 mm

  - For door weight : ?16 kg

  - Area of application : Top

  - Track version : Double

  - Position : top

  - Material : Aluminum

  - For door width : ?1,000 mm

  - For door height : ?1,400 mm

  - Installation : For screw fixing

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.25

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.31

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.32

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.33



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.20-7.21.pdf

  Hafele 405.90.032, 405-90-032, 40590032, 405.90


  Specifications/Hafele Catalog - Page# FC7.27: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Sliding Door Hardware, Hawa Clipo 16 IF, set
