Hafele 408.24.342 Pocket Door System, XL Slide Length: 536 mm (21 1/8")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.24.342

  Product Title: Pocket Door System, Häfele Slido F-Park 71 16A, Length: 536 mm (21 1/8")

  Category: Pocket Door System, Häfele Slido F-Park 71 16A,

  Item Details …

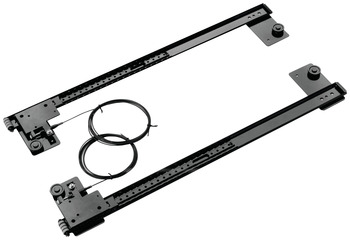

  - Steel cable is black nylon coated to reduce friction and enhance appearance

  - Jigs or fixtures are not required to locate slide top and bottom, integral location tabs locate slides in cabinet

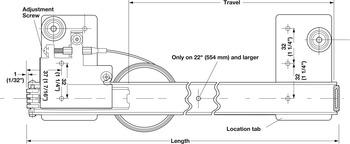

  - Adjustment screws allow maximum adjustability, cable tensioning adjustment is located at the slide front

  - Easily accessible from front of cabinet

  - Soft rubber roller on slide front protects door front from scratches and marring

  - Minimal installation and adjustment time for lower production costs

  - For door thickness max. : 1 1/4"

  - For door height (inches) : 32"

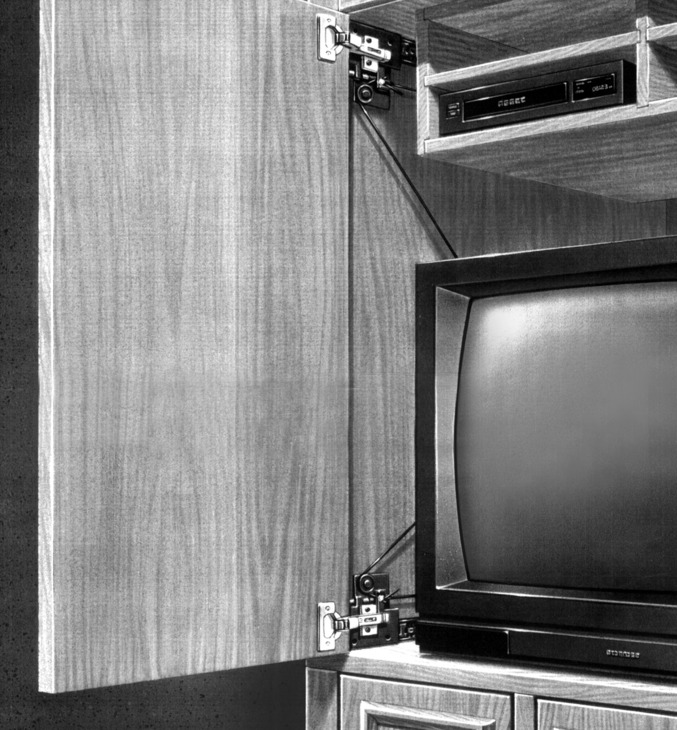

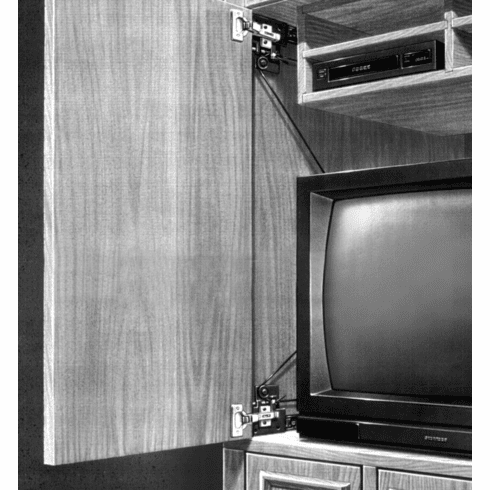

  - Area of application : Especially suited for use in larger door cabinets such as home theater applicationsFor use with doors up to 60” high, 24” wide & weighing up to 35 lbs.Accommodates doors up to 1 1/4” thick

  - Material : Steel, Zinc-electroplated and plasticCable: Steel, nylon coated

  - Color/finish : Black

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Slido F-Park71 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.120



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.103-7.104.pdf

  Hafele 408.24.342, 408-24-342, 40824342, 408.24


  Specifications/Hafele Catalog - Page# FC7.164: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
