Hafele 408.24.541 Pocket Door System, Accuride 1432 (Hinges not Included) Length: 405 mm (16")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.24.541

  Product Title: Pocket Door System, Accuride 1432 (Hinges not Included), Vertical use as pivot sliding door fitting and horizontal use as pivot sliding door runner, Length: 405 mm (16")

  Category: Pocket Door System, Accuride 1432 (Hinges not Included), Vertical use as pivot sliding door fitting and horizontal use as pivot sliding door runner

  Item Details …

  - Pocket width: 51–64 mm (2"–2 1/2") depending on door thickness

  - for swivelling up and sliding in door flaps, e.g. with media furniture

  - no obstruction caused by open flap or hinged door

  - excellent running characteristics due to synchronised guides

  - Area of application : For pivot sliding doors

  - For door material : wood

  - Number of doors : 1.00

  - For door width : 255?–?660 mm

  - For door height : 915?–?2,300 mm

  - For door weight : ?34 kg

  - Version : Hinge carrier strip set can be shortened, with cable system for synchronous running of top and bottom runners

  - Load bearing capacity : 75 lbs.

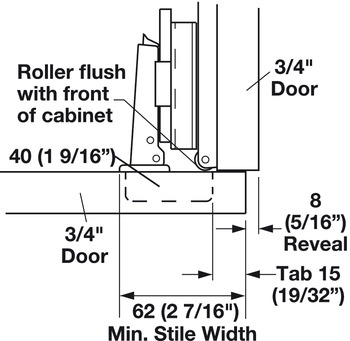

  - For door thickness min. : 3/4" for doors 13/16" or thicker, please order the optional 40 mm hinge kit

  - For door thickness max. : 1 1/4" for doors 13/16" or thicker, please order the optional 40 mm hinge kit

  - For door width (inches) : Up to 26"

  - For door height (inches) : Up to 78" (for doors 36 - 78" tall), addtional hinges required

  - For door thickness : 19?–?32 mm

  - Material/finish : Steel, Black, Zinc-plated

  - Installation : Vertically mounted concealed doors

  - Order reference

  - Hinge carrier strip set and door fixing set are not supplied. Please order separately.

  - Supplied with:

  - Slide mounting hardware kit

  - Mounting instructions


  Additional Information …

  Installation length = min. cabinet depth that is required for installing the fittingRetraction distance = max. door width that can be retracted into the cabinet

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride CB1332 and CB1432 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.122



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.105-7.106.pdf

  Hafele 408.24.541, 408-24-541, 40824541, 408.24


  Specifications/Hafele Catalog - Page# FC7.166: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  35 mm (1 3/8") Hinge Kit, for Accuride 1332/1432 Pivot Pocket Door (choose one):


  • Zinc Black

    408.24.071 408.27.070

    Click to order Click to order



  40 mm (1 5/8") Hinge Kit, for Accuride 1332/1432 Pivot Pocket Door (choose one):


  • For inset for doors 13/16” – 1 1/4” 7/16” overlay for doors up to 3/4”

    408.24.074 408.24.075

    Click to order Click to order



  Hinge Carrier Strip Kit, for Accuride 1332/1432 Pivot Pocket Door (choose one):


  • Black Zinc

    408.24.060 408.24.061

    Click to order Click to order



  Connector Clip Kit, for Accuride 1332/1432 Pivot Pocket Door (choose one):


  • undefined

    408.24.062

    Click to order
