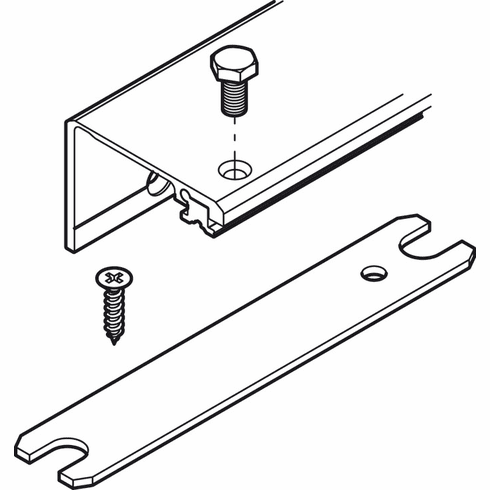

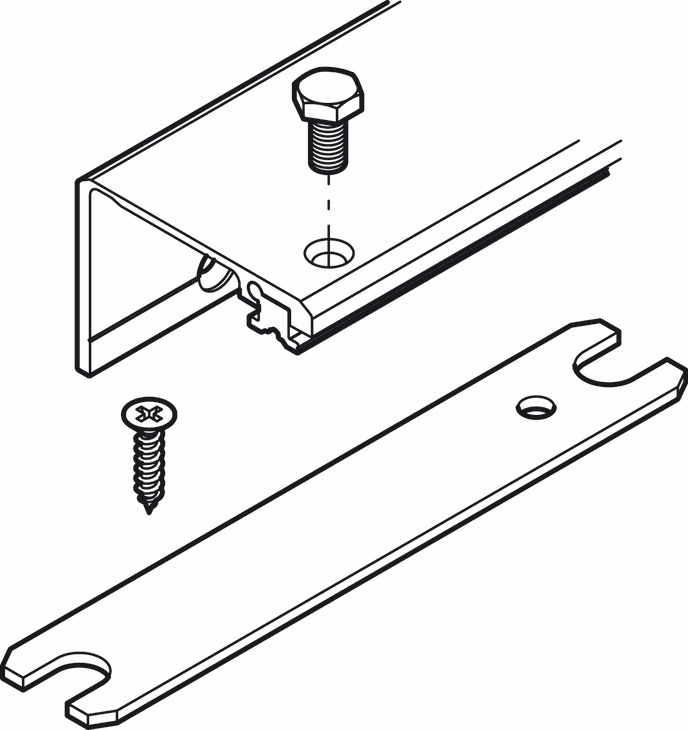

Hafele 408.30.092 Connector Connecting Profile, for HAWA Concepta 25/30/40/50 For half overlay application, length: (2' 11 7/16") 900 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.30.092

  Product Title: Connector Connecting Profile, for HAWA Concepta 25/30/40/50, For half overlay application, length: (2' 11 7/16") 900 mm

  Category: Connector Connecting Profile, for HAWA Concepta 25/30/40/50, For half overlay application

  Item Details …

  - Area of application : for 1 pivot sliding doorfor 1 doors

  - Material : Aluminum

  - Color/finish : Silver colored, anodized

  - Width : 55.00 mm

  - Width (inch) : 2 3/16"

  - Height : 40.00 mm

  - Order reference

  - Pocket for 1 pivot sliding door: To connect the outer side panel to the cabinet with a cabinet depth of 650 mm (25 9/16") order 1 set of 408.30.243. For cabinet depth between 651 - 900 mm (25 5/8" - 35 7/16"), order 2 pieces of 408.30.092.


  Additional Information …

  Pocket for 1 pivot sliding door:To connect the outer side panel to the cabinet with a cabinet depth of 650 mm (25 9/16") order 1 set of 408.30.243, for cabinet depth between 651 - 900 mm (25 5/8" - 35 7/16") order 2 pieces of 408.30.092.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.131



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.110-7.115.pdf
