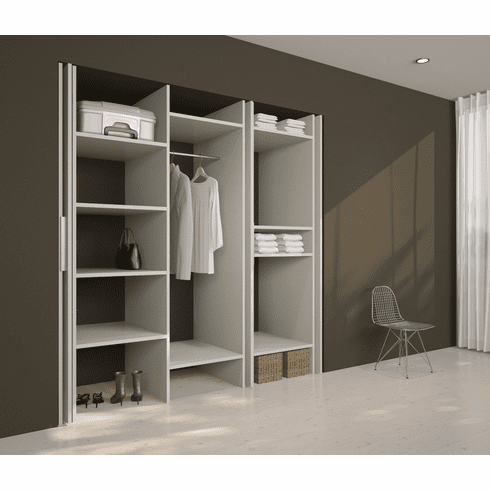

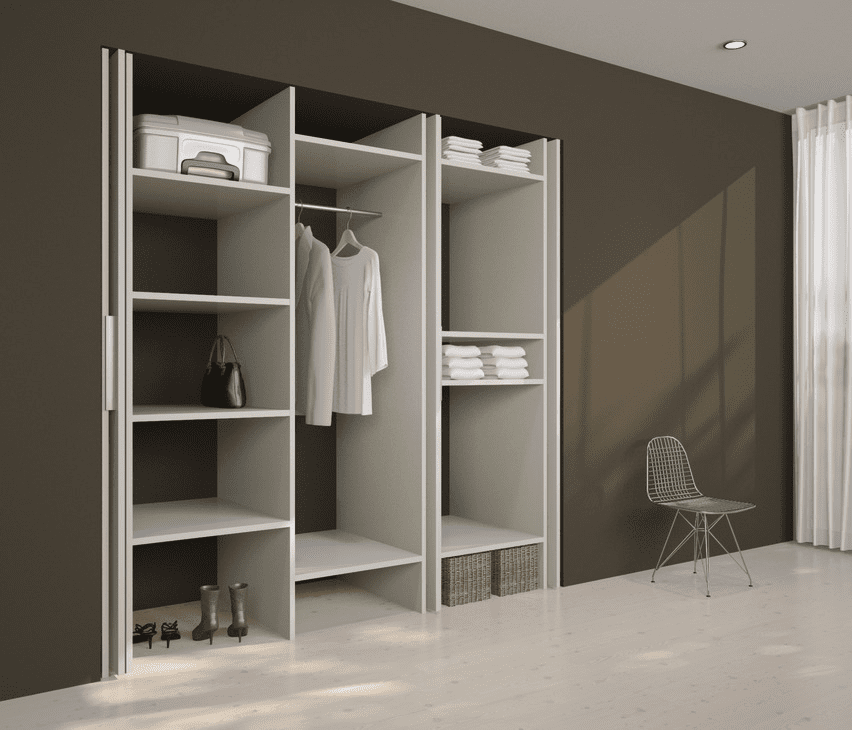

Hafele 408.30.593 HAWA Concepta 50, 2301 - 2850 mm
, 40830593, 408-30-593 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 408.30.593
Product Title: Wooden Pivot Sliding Doors, Hawa Concepta, For 1-leaf wooden pivot sliding doors, hinges with soft closing mechanism, Infront/Vorfront, for wooden doors, door weight 50 kg, hinges with soft closing mechanism
Category: Wooden Pivot Sliding Doors, Hawa Concepta, For 1-leaf wooden pivot sliding doors, hinges with soft closing mechanism
Item Details …
- Door Thickness: Straight edge: 19 - 30 mm (3/4" - 1 3/16") Rabbeted edge: >30 - 50 mm (>1 3/16" - 1 15/16")
- The door is pulled into the pocket automatically
- Suitable for room partitioning as there is no need for a base panel and top panel in wall recesses
- For left and right hand use
- Unique scissor technology accommodates large and heavy doors
- All adjustments are made from the front of the cabinet
- Area of application : For 1 door
- For door material : wood
- For door width : 300?–?900 mm
- Version : Hinges with soft closing mechanism
- For door thickness min. : 3/4"
- For door thickness max. : 1 15/16"
- Length (inch) : 2' 1 19/32"
- Door width max. : 900
- For door thickness : 19?–?30 mm
- Running gear version : 40/50 kg: 2 rollers
- Running gear guided by : Ball bearing
- Installation : For left and right hand use
- Order reference
- ? Parking pocket for 1 door
- Length 650 mm: 1 set of Cat. No. 408.30.243
- Length 900 mm: 2 pieces of Cat. No. 408.30.092
- ?, ? Parking pocket for 2 doors
- Construction with adjustable feet
- Profile for top and bottom:
- Length 650 mm: 2 pieces of Cat. No. 408.30.093
- Length 900 mm: 2 pieces of Cat. No. 408.30.094
- Construction with fixed plinth
- Profile for top:
- Length 650 mm: 1 pieces of Cat. No. 408.30.093
- Length 900 mm: 1 pieces of Cat. No. 408.30.094
- Profile for bottom:
- Length 26 mm: 1 pieces of Cat. No. 408.30.095
- Supplied with:
- 1 scissor assembly complete with 2 guides
- 1 spacer profile
- 1 door stopper with clip-in stopper
- 3 alternative profiles and brushes
- 1 pair of cover caps
- 1 end position damper
- 1 self closing mechanism for door
- 1 soft stopper bracket
- 1 upright with 2 play-free guides
- 5 concealed hinges
- 1 guide track
- 1 running track
- Mounting instructions
Additional Information …
A set is for one door.Data Sheet
