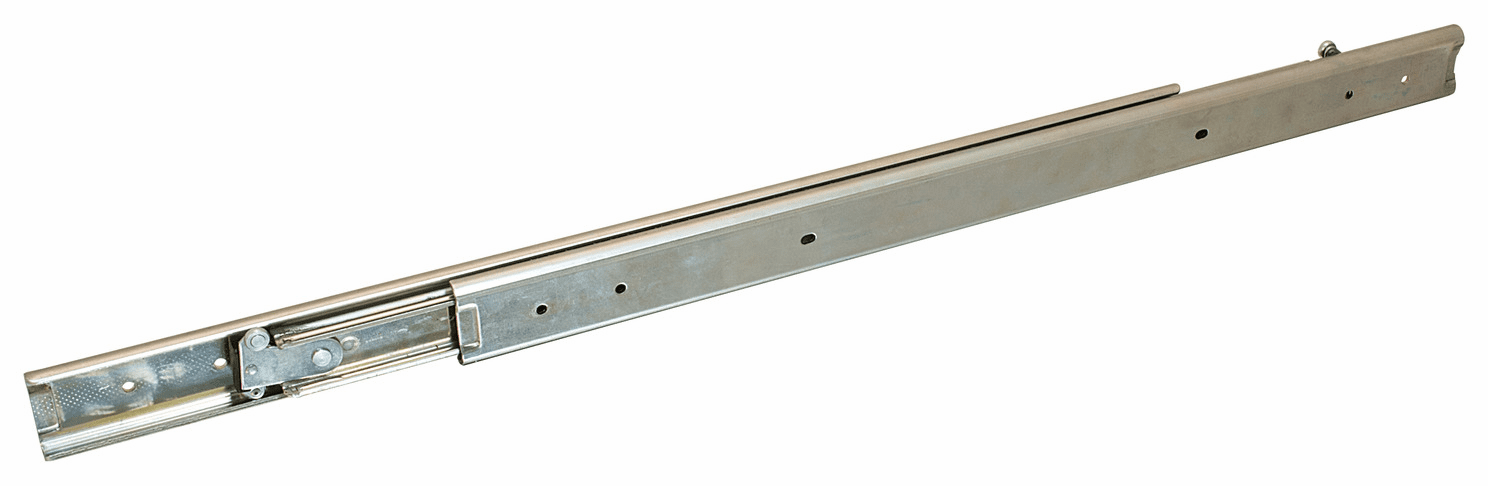

Hafele 420.13.905 Accuride C0363-20 2-way travel slides, steel, zinc plated, 100 lb

Product Information

• Description

  Manufacturer: Hafele
  Item: 420.13.905

  Product Title: Two-Way Side Mounted Travel Slide, Accuride 0363 Full Extension, 500 mm installation length

  Category: Two-Way Side Mounted Travel Slide, Accuride 0363 Full Extension,

  Item Details …

  - Two-way travel provides access from both sides of cabinet

  - Full extension from center point in both directions

  - Hold in detent at center provides easy positioning

  - Non-disconnect

  - Model series : 0363

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

  - Material : Steel

  - Color/finish : Galvanized

  - Mounting : Side-mounted

  - Drawer width max. : 457.00 mm

  - Order reference

  - Sold as singles (not pairs)


  Additional Information …

  Front panels must be notched for two-way travel drawers with continuous front panels.
