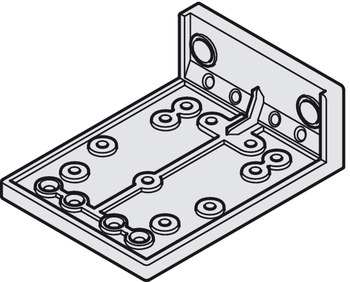

Hafele 421.23.010 Drawer Drilling Template, for Grass Dynapro Slides Orange

Product Information

• Description

  Manufacturer: Hafele
  Item: 421.23.010

  Product Title: Drawer Drilling Template, for Salice Undermount Slides, Orange, Futura 1D Clips, A199800755009

  Category: Drawer Drilling Template, for Salice Undermount Slides,

  Item Details …

  - Product type : Drawer Drilling Template

  - Area of application : Drill holes for Dynapro and Dynamoov snap-in coupling, Dynapro Soft-Close adjusting adapterdrill holes at drawer rear panel

  - Version : Integrated drilling jig for first drill hole of cabinet rail at 37 mm

  - Material : Plastic

  - Color/finish : Orange

• Data Sheet

  Detailed Data Sheet

• Specifications



  Please contact us for more information about this product
