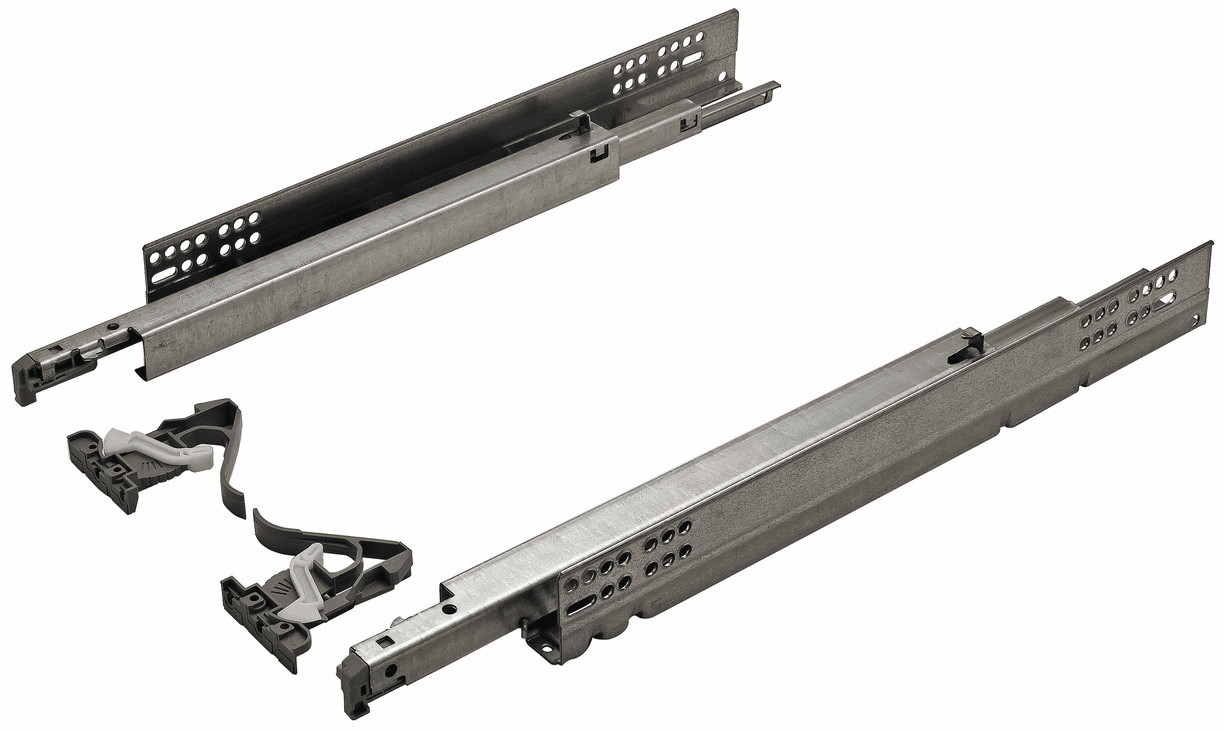

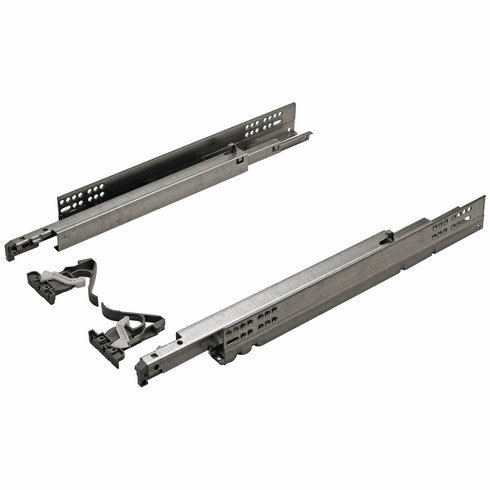

Hafele 421.23.745 Concealed Undermount Slide, Frameless, Full Extension, Soft Close,75 lbs./Pair Salice Futura, 450 mm length

Product Information

• Description

  Manufacturer: Hafele
  Item: 421.23.745

  Product Title: Concealed Undermount Slide, Frameless, Full Extension, Soft Close,75 lbs./Pair, Salice Futura, 450 mm length

  Category: ,

  Item Details …

  - 32 mm compatible

  - Slotted hole for depth adjustment

  - Front clip disconnect for easy drawer insertion and removal

  - Type of pull out : Full extension

  - Comfort functions opening/closing : Soft close

  - Load bearing capacity : 34.00 kg

  - Adjustment facility : Height adjustment + 3 mm

  - Material : Steel

  - Color/finish : Zinc

• Data Sheet

  Detailed Data Sheet

• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Spax Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
  • Mounting Bracket, for Face Frame Cabinets
  • Storage Tray, for Internal Drawer Pull-Out
