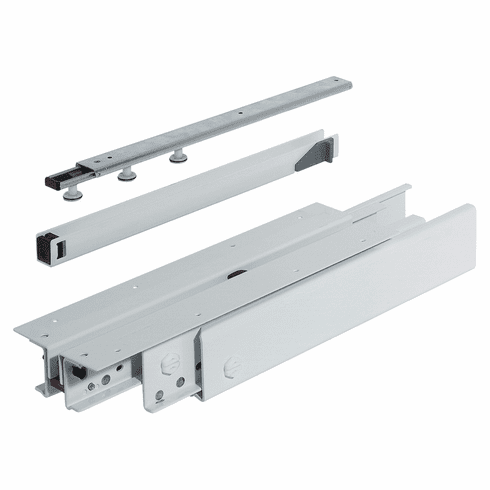

Hafele 421.50.820 Pull-Out Cabinet Slide, 777A, 3/4 extension, steel, epoxy-coated white, 440 lbs, 400 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 421.50.820

  Product Title: Top/Bottom Mounted Cabinet Slide, FR 777A, Full Extension, 440 lbs Weight Capacity, (15 3/4") 400 mm installed length

  Category: Top/Bottom Mounted Cabinet Slide, FR 777A, Full Extension, 440 lbs Weight Capacity,

  Item Details …

  - Good running characteristics and quietness due to integrated differential action

  - All stops are made of plastic

  - Patented profile shapes prevent rubbing noises

  - Easy running due to high quality steel ball bearings

  - Rear stop

  - Ceiling guide for lateral stability

  - U-profile is closed on one end to function as an end stop for the guide roller

  - Load bearing capacity : 200.00 kg

  - Load bearing capacity : Including cabinet and useful load: 440 lbs

  - Version : Full extension progressive runner

  - Color/finish : White, Epoxy-coated

  - Area of application : Pull-out cabinets

  - Material : Guides: SteelRollers: Solid Delrin, Steel ball bearing (encased)

  - Height (inch) : Max: 98"

  - Installation : Tip/bottom mountedFloor mounted

  - Supplied with:

  - Bottom slide

  - Top slide

  - Instructions


  Additional Information …

  The running tracks of these guides should not be lubricated.
