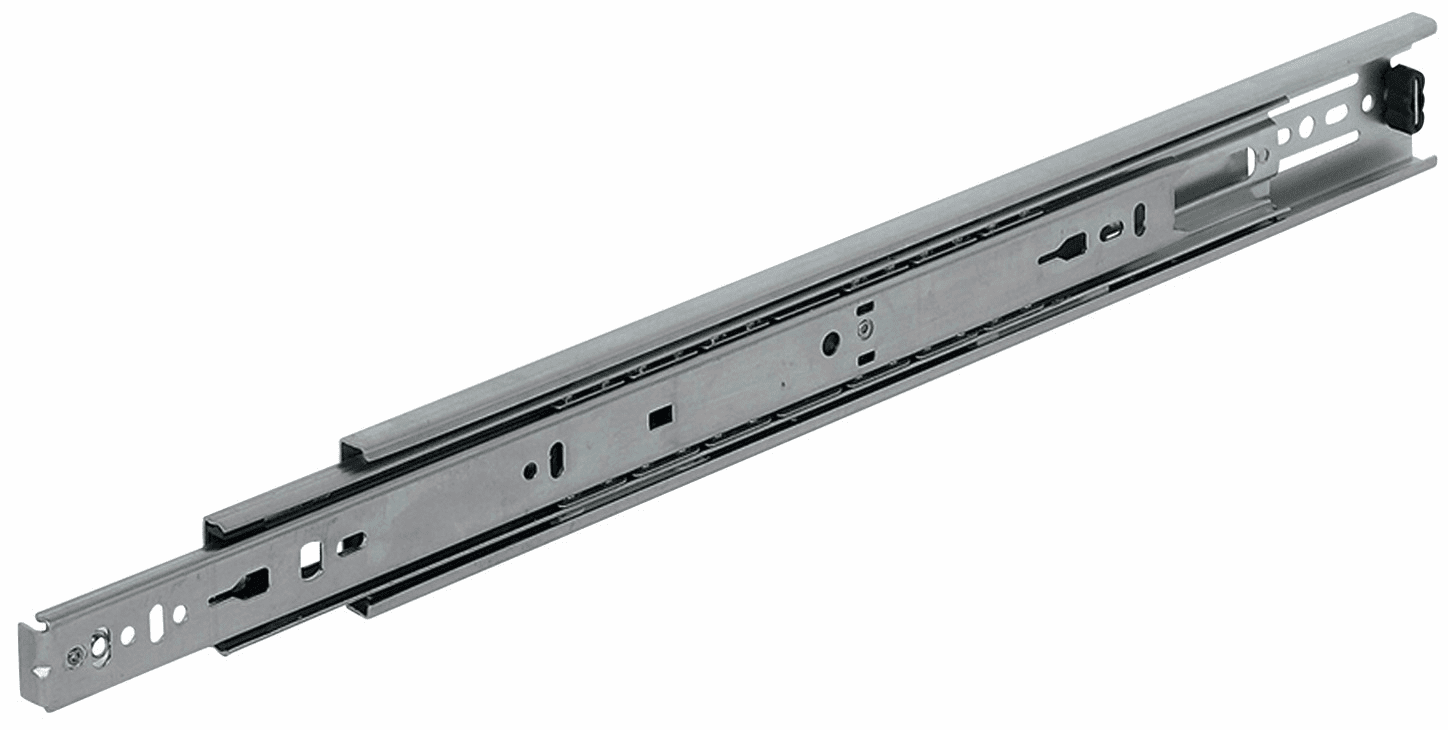

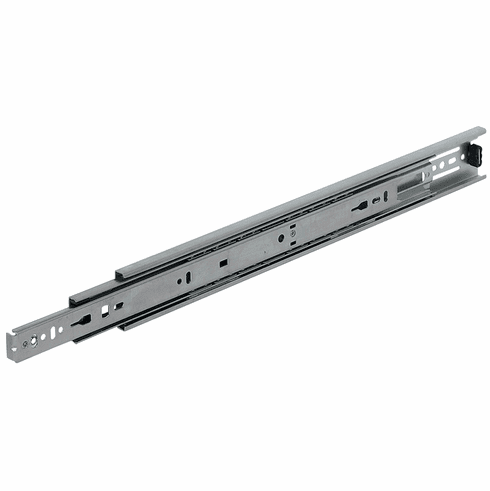

Hafele 422.04.454 Accuride 3832 Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity Shop pack, zinc, 18" installed and extension length

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.04.454

  Product Title: Accuride 3832 Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, Shop pack, zinc, 18" installed and extension length

  Category: Accuride 3832 Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity,

  Item Details …

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

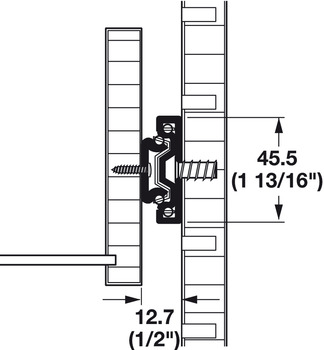

  - Mounting : Side mounted

  - Version : Lever disconnectHold-in detentBHMA certified to Grade 1 HD-100

  - Type of pull out : Full extension

  - Area of application : For drawers up to 610 mm (24") wide

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

  - Load bearing capacity per pair : 45.00 kg

  - Supplied with:

  - Shop Pack: 1 pair slides, screws & instructions

  - FP Pack: 10 pairs slides, separated

  - Bulk Pack: 10 pairs slides

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.87



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.49-8.50.pdf

  Hafele 422.04.454, 422-04-454, 42204454, 422.04


  Specifications/Hafele Catalog - Page# FC8.36: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides
