Hafele 422.05.245 Ball Bearing Slide, Accuride C3932, easy close, 20" full extension, steel, zinc-plated, shop pack, 150lbs

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.05.245

  Product Title: Ball Bearing Runners, Full extension, Accuride 3932 EC, Side Mounted, Easy Close, Shop pack, length: (20") 500 mm

  Category: Ball Bearing Runners, Full extension, Accuride 3932 EC, Side Mounted, Easy Close

  Item Details …

  - Side space: 12.7 mm (1/2") + .03 mm (1/32")

  - Hold-in detent

  - Lever disconnect

  - BHMA and AWI certified to Grade 1 HD-100

  - Load bearing capacity : 68.00 kg

  - Load bearing capacity : 150 lbs

  - Color/finish : Galvanized

  - Type of pull out : Full extension

  - Holding function : Hold-in

  - Material : Steel

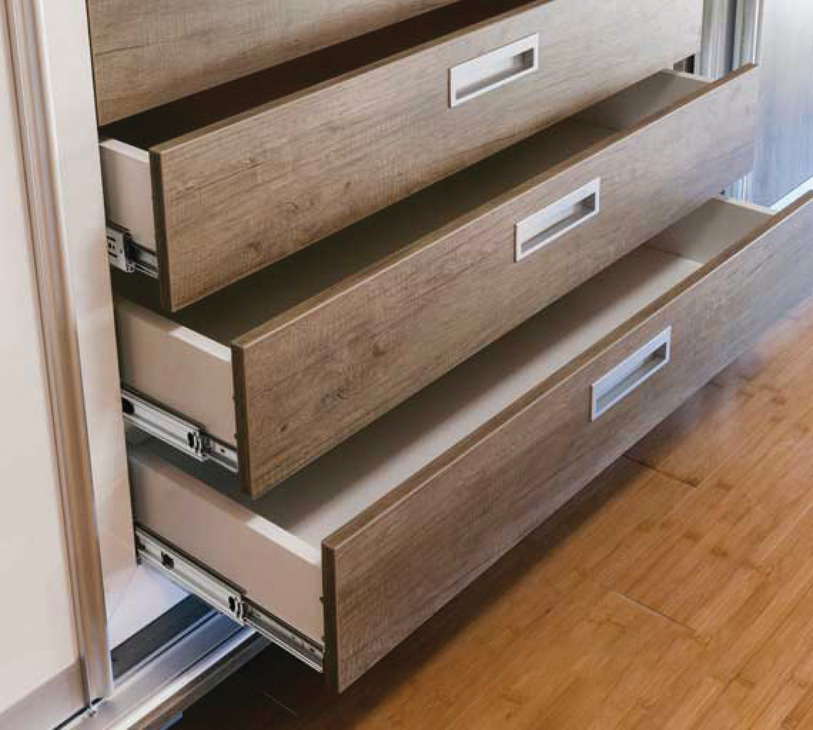

  - Installation : At drawer, side mounted

  - Load bearing capacity per pair : 68.00 kg

  - Supplied with:

  - D Pack = Shop pack; 1 pair slides, mounting screws, instructions

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Accuride 3932EC Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.97A



• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
