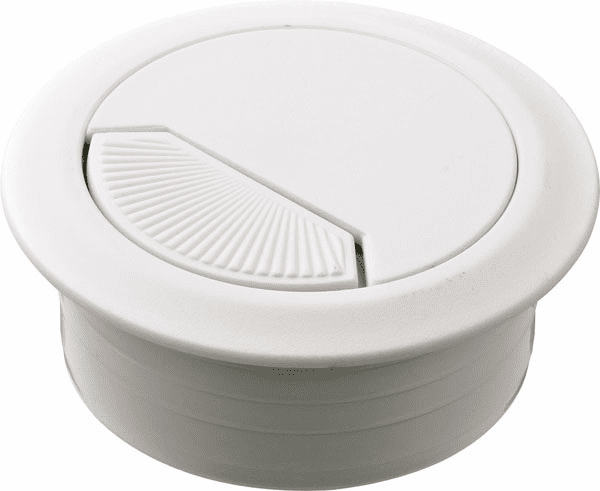

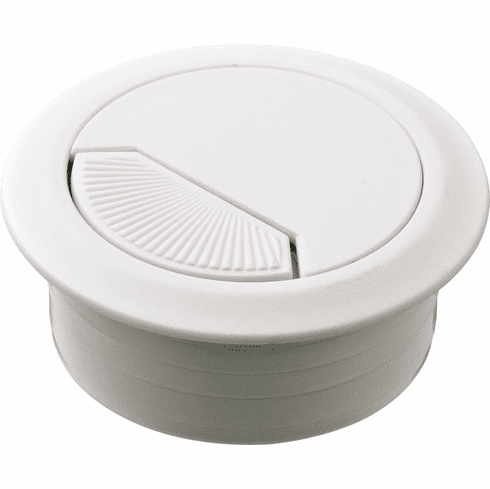

Hafele 429.99.726 Plastic Cable Grommet, Two-Piece, Round with Spring Closure White, 60 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 429.99.726

  Product Title: Plastic Cable Grommet, Two-Piece, Round with Spring Closure, Plastic, with spring loaded, swivelling section in cover, for workplace organization, White, Diameter:60 mm

  Category: Plastic Cable Grommet, Two-Piece, Round with Spring Closure, Plastic, with spring loaded, swivelling section in cover, for workplace organization

  Item Details …

  - With spring-loaded, rotating segment in the cover for leading cable through. Completely removable for leading cables through with pre-mounted plugs.

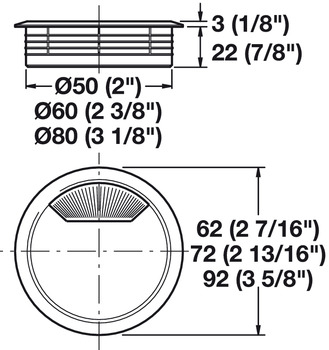

  - Installation depth : 22.00 mm

  - Version : With spring closure

  - Shape : round

  - Area of application : For workplace organization

  - Material : Plastic

  - Installation : for press-fitting or gluing

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 5.21



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_5.32-5.35.pdf

  Hafele 429.99.726, 429-99-726, 42999726, 429.99


  Specifications/Hafele Catalog - Page# FC5.55: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Office Organization Catalog Return to: All Hafele Catalogs
