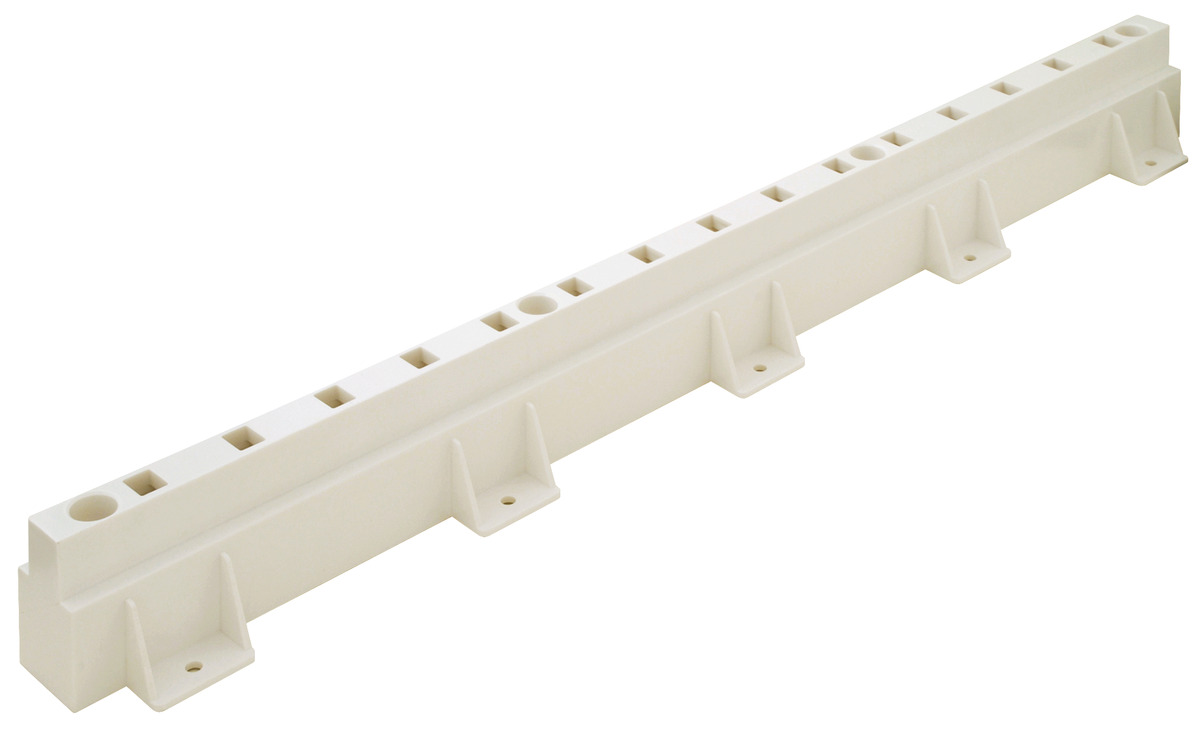

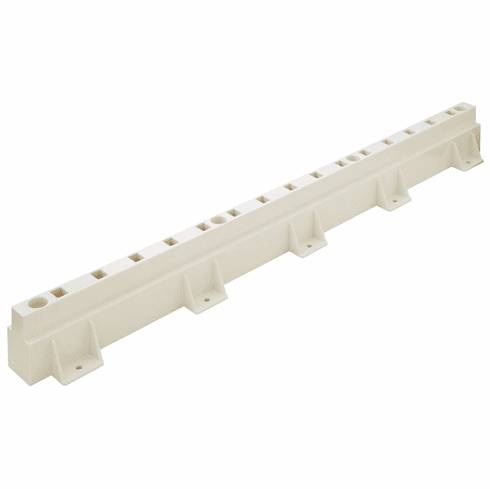

Hafele 431.01.712 Quick Tray Supports, With 0mm standoff White

Product Information

• Description

  Manufacturer: Hafele
  Item: 431.01.712

  Product Title: QuickTrayâ„¢ Supports, Large Hinge Application, 2" Thickness, with 0 mm Standoff, White

  Category: QuickTray™ Supports, Large Hinge Application, 2" Thickness, with 0 mm Standoff,

  Item Details …

  - Works with epoxy, ball bearing, concealed undermount slides, and Moovit

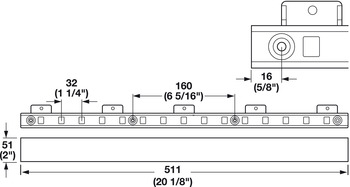

  - For 511mm (20 1/8”) supports, the maximum recommendation is 3 drawers at 75 lbs. each

  - Hook dowels attach to slides to hook onto quick tray supports

  - Easy installation

  - Load bearing capacity : For 20 1/8" supports, the maximum recommendation is 3 drawers at 75 lbs. each

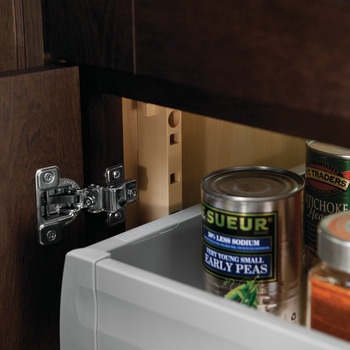

  - Area of application : A great solution for pantry roll-out shelves

  - Version : 2" height; 0mm standoff

  - Supplied with:

  - 4 supports

  - 20 mounting screws

  - 8 hook dowels

  - 8 mounting screws for hook dowels

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.128



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.89-8.90.pdf

  Hafele 431.01.712, 431-01-712, 43101712, 431.01


  Specifications/Hafele Catalog - Page# FC8.84: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
