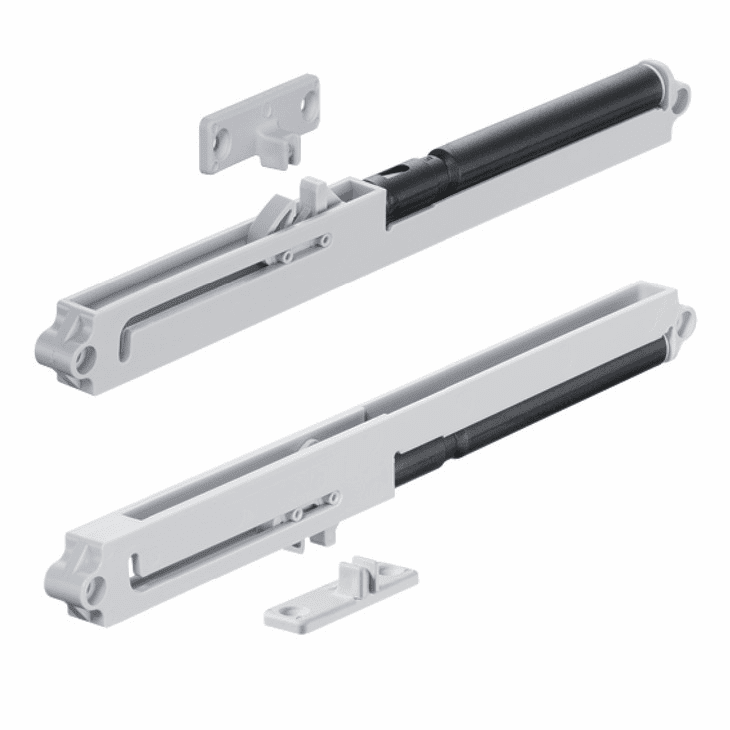

Hafele 432.13.507 Soft Closer Mechanism, for Wood or Metal Boxes For wood drawers

Product Information

• Description

  Manufacturer: Hafele
  Item: 432.13.507

  Product Title: Soft Closer Mechanism, for Wood or Metal Boxes, For wood drawers

  Category: Soft Closer Mechanism, for Wood or Metal Boxes,

  Item Details …

  - The DIN EN 15338, level 3, is exceeded with tested 100,000 cycles.

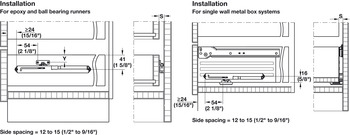

  - Note: One or two-sided installation is determined by the width, running properties and weight capacity of the runners. Always use 2 mechanisms for drawers wider than 400 mm (15 3/4�) or if the drawer depth exceeds the width.

  - Area of application : Roller runnersball bearing runners without retainer retention devicegroove mounted runners

  - Material : Plastic

  - Color/finish : Light gray and black

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs; two-sided installation

  - Note on load bearing capacity : Load bearing capacity: useful load of 25 kg with one-sided installationLoad bearing capacity: useful load of 50 kg with two-sided installation

  - Installation : Screw-on

  - Installation reference : Note: One or two-sided installation is determined by the width, running properties and weight capacity of the runners. Always use 2 mechanisms for drawers wider than 400 mm (15 3/4�) or if the drawer depth exceeds the width.

  - Supplied with:

  - 1 soft and self closing mechanism

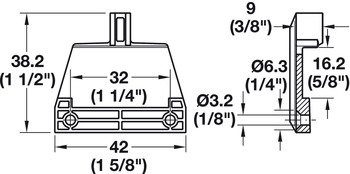

  - 1 driver

  - 1 set of installation instructions


  Additional Information …

  The installation on one side or both sides is determined by the installation situation (width, depth, running properties and load bearing capacity of the runners). Always use 2 soft closing mechanisms for drawers wider than 400 mm or if the drawer's depth exceeds its width.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for drawer soft closing mechanism for retrofitting

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.123



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.26-8.26.pdf



• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Chipboard screw, Hospa, Pan Head, PZ, Fully Threaded, Galvanized
