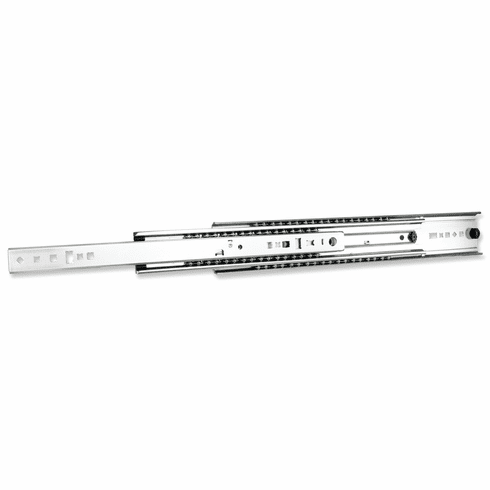

Hafele 432.48.836 Accuride 7957 Shop Pack Side/Bottom Mounted Slide with Disconnect, Full Extension, 350 lbs Weight Capacity 14"

Product Information

• Description

  Manufacturer: Hafele
  Item: 432.48.836

  Product Title: Accuride 7957 Shop Pack Side/Bottom Mounted Slide with Disconnect, Full Extension, 350 lbs Weight Capacity, 14"

  Category: Accuride 7957 Shop Pack Side/Bottom Mounted Slide with Disconnect, Full Extension, 350 lbs Weight Capacity,

  Item Details …

  - Mounting hardware not included

  - Load bearing capacity : Side mount: 350 lbs/pair#Flat mount: 150 lbs/pair

  - Mounting : Side/bottom mounted

  - Version : With disconnectBridged ball retainer prevents retainer migration

  - Color/finish : Zinc plated, Galvanized

  - Type of pull out : Full extension

  - Area of application : Use as an intermediate load rating for wide drawers in kitchens, store fixtures and institutional storage applicationsFor drawers up to 1,000 mm wide

  - Removing the running track : With release lever

  - Material : Steel

  - Installation : Side/bottom mounted


  Additional Information …

  The load bearing capacity values specified in the table apply to side mounting only. The load bearing capacity is reduced by approx. 75% when surface mounted.Example: Cat. No. 432.48.851 has a load bearing capacity of 40 kg when surface mounted.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.106



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.67-8.67.pdf

  Hafele 432.48.836, 432-48-836, 43248836, 432.48


  Specifications/Hafele Catalog - Page# FC8.53: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
