Hafele 433.17.830 Salice A7557 Futura Push Slide, for Face-Frame, Full Extension, 75 lbs 305 mm drawer box length

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.17.830

  Product Title: Salice A7557 Futura Push Slide, for Face-Frame, Full Extension, 75 lbs, 305 mm drawer box length

  Category: Salice A7557 Futura Push Slide, for Face-Frame, Full Extension, 75 lbs,

  Item Details …

  - Slight pressure on the drawer front opens the drawer

  - “Push” mechanism is fully integrated into the slide

  - Slotted hole for depth adjustment

  - Front clip disconnect for easy drawer insertion and removal

  - Perfect for drawers without handles

  - Model : A7557 Futura

  - Version : Push-to-Open(must manually push to close)

  - Model series : A7557 Futura Push Face-Frame Mounted

  - Type of pull out : Full extension

  - Features : With self-closing mechanismwith soft-closing mechanism

  - Comfort functions opening/closing : Push to open

  - Load bearing capacity : 35.00 kg

  - Load bearing capacity : Per pair: 75 lbs

  - Adjustment facility : Height adjustment + 3 mm

  - Material : Steel

  - Color/finish : Zinc

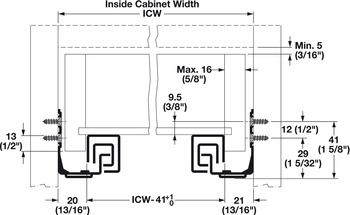

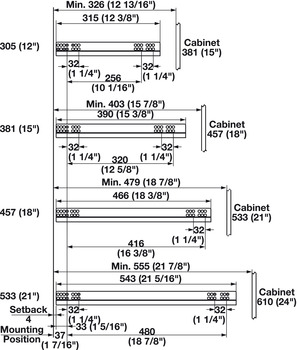

  - Installation : For screw fixing to side panel into 32 mm series drilled holesfor screw fixing to drawer, with mounting clip

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.60



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.29-8.31.pdf

  Hafele 433.17.830, 433-17-830, 43317830, 433.17


  Specifications/Hafele Catalog - Page# FC8.15: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Six-Way Adjustable Disconnect Clips, for Salice Futura Slides (choose one):


  • Orange, 6-way adjustable

    421.23.001

    Click to order



  Height Adjustable Disconnect Clips, for Salice Futura Slides (choose one):


  • Gray

    421.23.000

    Click to order



  Optional Accessories:



  • Mounting Bracket, for Face Frame Cabinets
