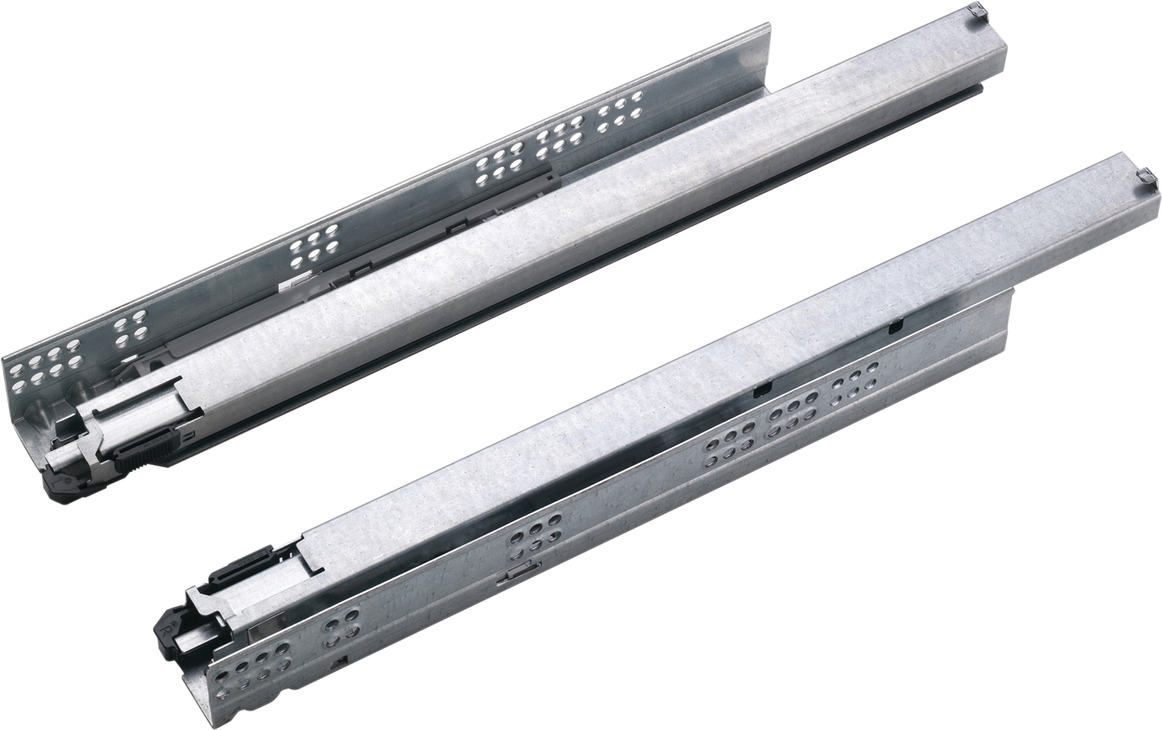

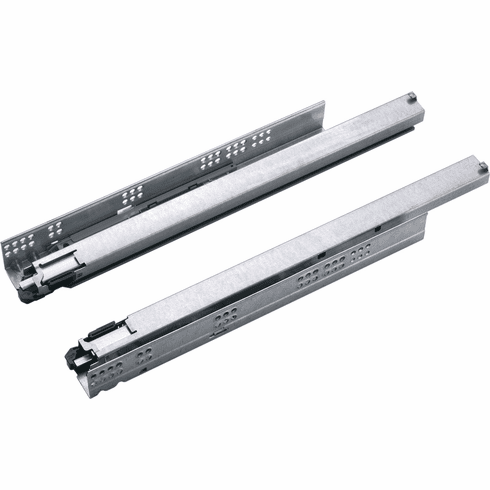

Hafele 433.19.533 Grass Dynapro 19 Full Extension Slide, 100 lbs 3D adjustment, 12" length

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.19.533

  Product Title: Grass Dynapro 19 Full Extension Slide, 100 lbs, 3D adjustment, 12" length

  Category: Grass Dynapro 19 Full Extension Slide, 100 lbs,

  Item Details …

  - Integrated soft close liquid damping provides sleek, smooth closing

  - Fully synchronized runner for the ultimate in smooth silent operation

  - Continuous self-locking of drawer when pushed onto the drawer

  - Slide-on mounting

  - Meets or exceeds BHMA Grade 1 testing requirements

  - 3-D version adds tilt adjustment +4 mm (11/64”)

  - Model series : Grass Dynapro - 19

  - Features : 3-D

  - Comfort functions opening/closing : Soft close fluid damped

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

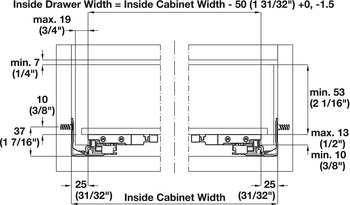

  - Adjustment facility : Height adjustment + 3.5 mmSide adjustment ± 1.5 mmTilt adjustment + 4 mmDepth adjustment + 3 mm

  - Material : Steel

  - Color/finish : Zinc-plated

  - Order reference

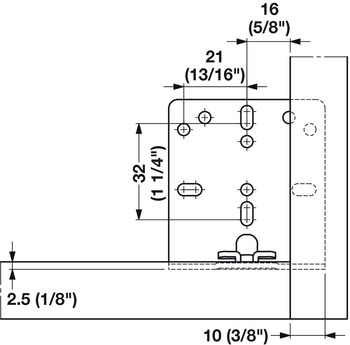

  - Front locking devices must be ordered separately and 3-D version also requires R/L rear adjustment adapter


  Additional Information …

  All items require R/L front locking device; 3-D version also requires R/L rear adjustment adapter.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.66



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Front Locking Device, For Grass Dynapro Slides, 2-D (choose one):


  • Pair (Left/Right) Left; Model F134125000633, 200 pcs/box Right; Model F134125001633, 200 pcs/box

    433.19.036 433.19.043 433.19.044

    Click to order Click to order Click to order



  Adjustment Adapter, For Grass Dynapro 3D Slides (choose one):


  • Pair (Left/Right) Left; Model F134125002233 Right; Model F134125003233

    433.19.029 433.19.041 433.19.042

    Click to order Click to order Click to order



  Optional Accessories:



  • Drawer Drilling Template, for Grass Dynapro Slides
  • Narrow Front Locking Device, For Grass Dynapro Slides
  • Rear Mounting Bracket, for Grass Dynapro/Elite Plus Concealed Undermount Slides
  • Rear Mounting Bracket, for 9" Grass Dynapro Slides
  • Depth Adjuster, for Grass Dynapro Slides
