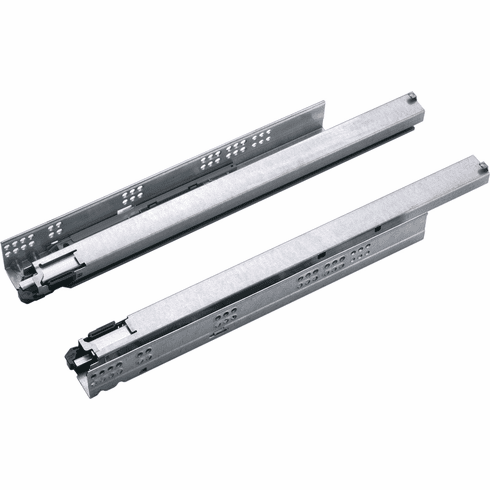

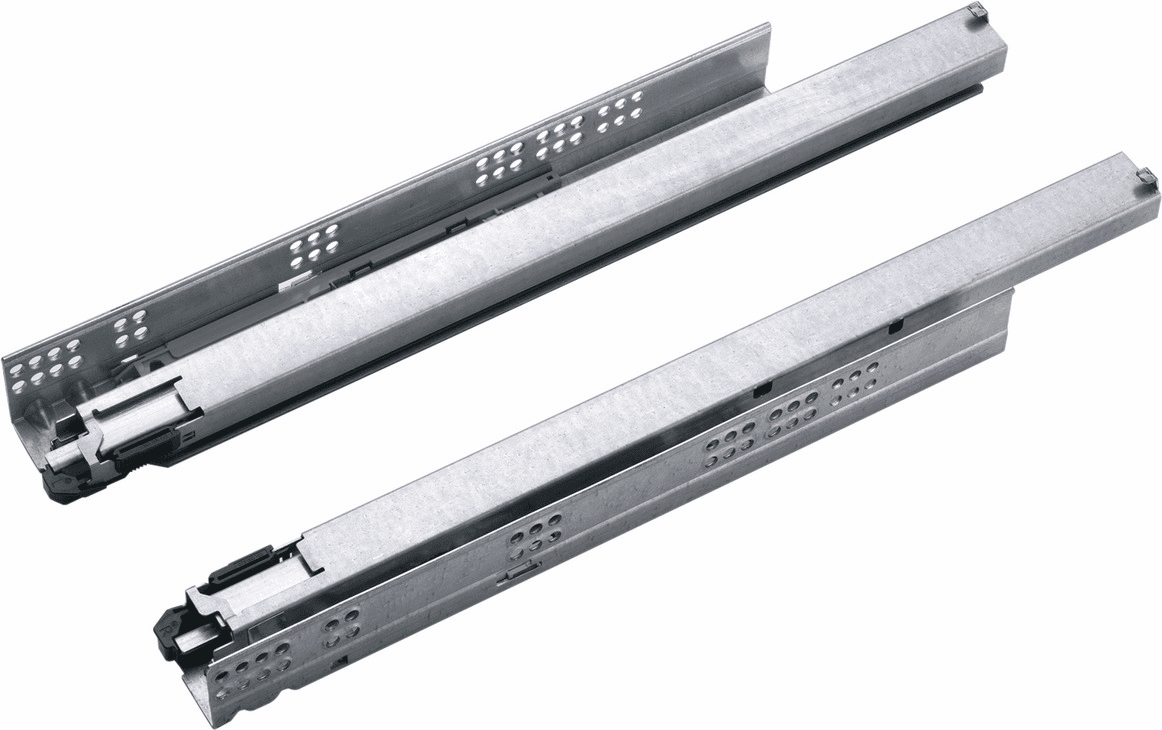

Hafele 433.20.571 Grass Heavy Duty 3D Dynapro 19 Slide, Full Extension, 132 lbs 27" length, model F130101238203

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.20.571

  Product Title: Grass Heavy Duty 3D Dynapro 19 Slide, Full Extension, 27" length, model F130136064604

  Category: Grass Heavy Duty 3D Dynapro 19 Slide, Full Extension,

  Item Details …

  - Integrated soft close liquid dampening provides sleek, smooth closing

  - Fully synchronized runner for the ultimate in smooth silent operation

  - Continuous self-locking of drawer when pushed onto the drawer

  - Slide-on mounting

  - Model series : Grass Dynapro - 19 3D

  - Comfort functions opening/closing : Soft close fluid damped

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs

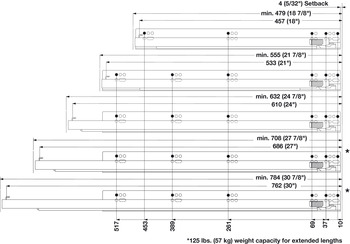

  - Note on load bearing capacity : Extended lengths (27" and 30") have 50 kg (110 lbs) load rating

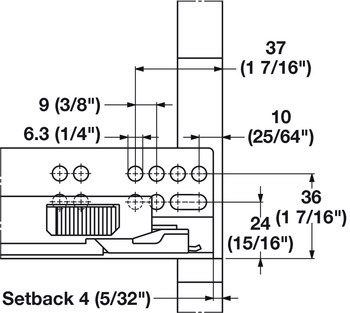

  - Adjustment facility : Height adjustment + 3.5 mmSide adjustment ± 1.5 mmTilt adjustment + 4 mmDepth adjustment + 3 mm

  - Material : Steel

  - Color/finish : Zinc-plated

  - Order reference

  - Requires R/L front locking device and R/L rear adjustment adapter

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.67



• Required Products & Optional Accessories

  Optional Accessories:



  • Drawer Drilling Template, for Grass Dynapro Slides
  • Narrow Front Locking Device, For Grass Dynapro Slides
  • Rear Mounting Bracket, for Grass Dynapro/Elite Plus Concealed Undermount Slides
  • Rear Mounting Bracket, for 9" Grass Dynapro Slides
  • Depth Adjuster, for Grass Dynapro Slides
