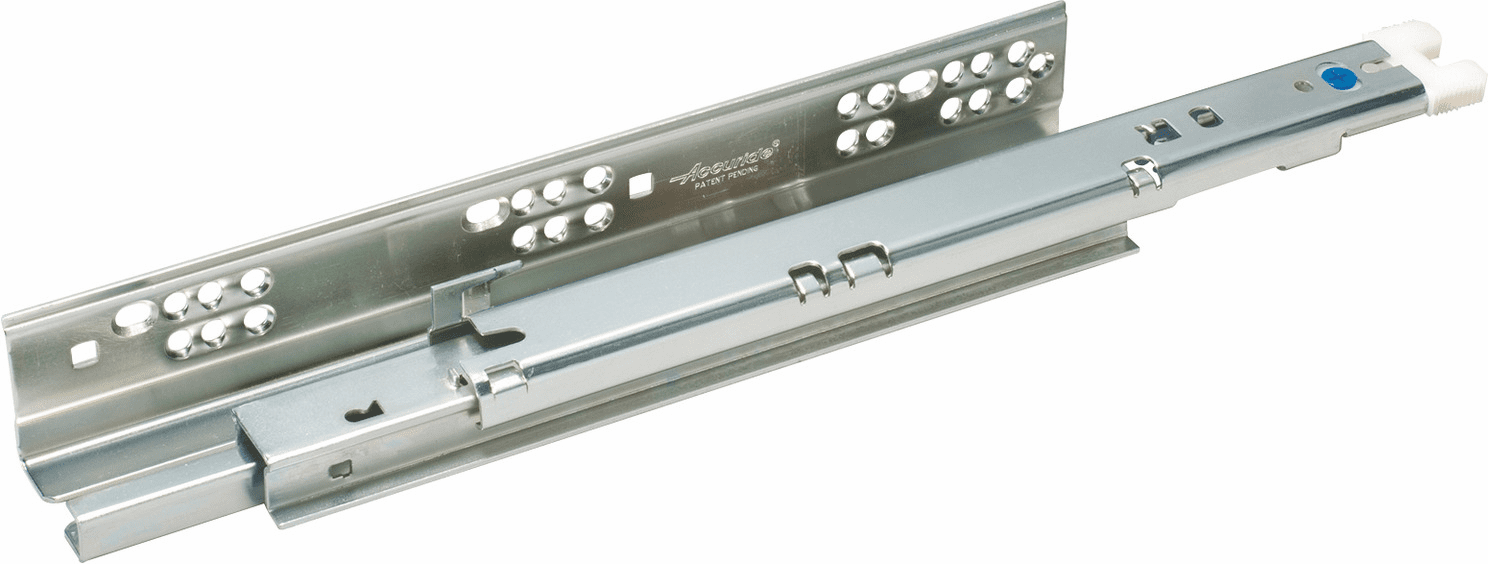

Hafele 433.29.024 Accuride C3135 Undermount Slide, Easy Close, Commerical Grade 16" extension, P-Pack

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.29.024

  Product Title: Accuride C3135 Undermount Slide, Easy Close, Commerical Grade, 16" extension, P-Pack

  Category: Accuride C3135 Undermount Slide, Easy Close, Commerical Grade,

  Item Details …

  - Commercial grade

  - Easy close mechanism consistently brings drawers to a gentle close

  - Fluid damper resists slam without adding bounce back

  - Lower space clip reduces migration and side to side movement

  - Meets ADA requirements with 4.8 lbs of pull force (up to 100 lbs.)

  - For drawers up to 30” wide

  - Frameless or face frame with back bracket

  - Model series : 3135EC

  - Features : P pack

  - Comfort functions opening/closing : Soft close fluid damped

  - Load bearing capacity : 45.50 kg

  - Load bearing capacity : 100 lbs

  - Material : Steel

  - Color/finish : Bright electro zinc

  - Supplied with:

  - D-Pack includes: 1 pair per box, 6 x #8 x 5/8” screw, disconnect levers, 4 x #6 x 5/8” screws and installation instructions
