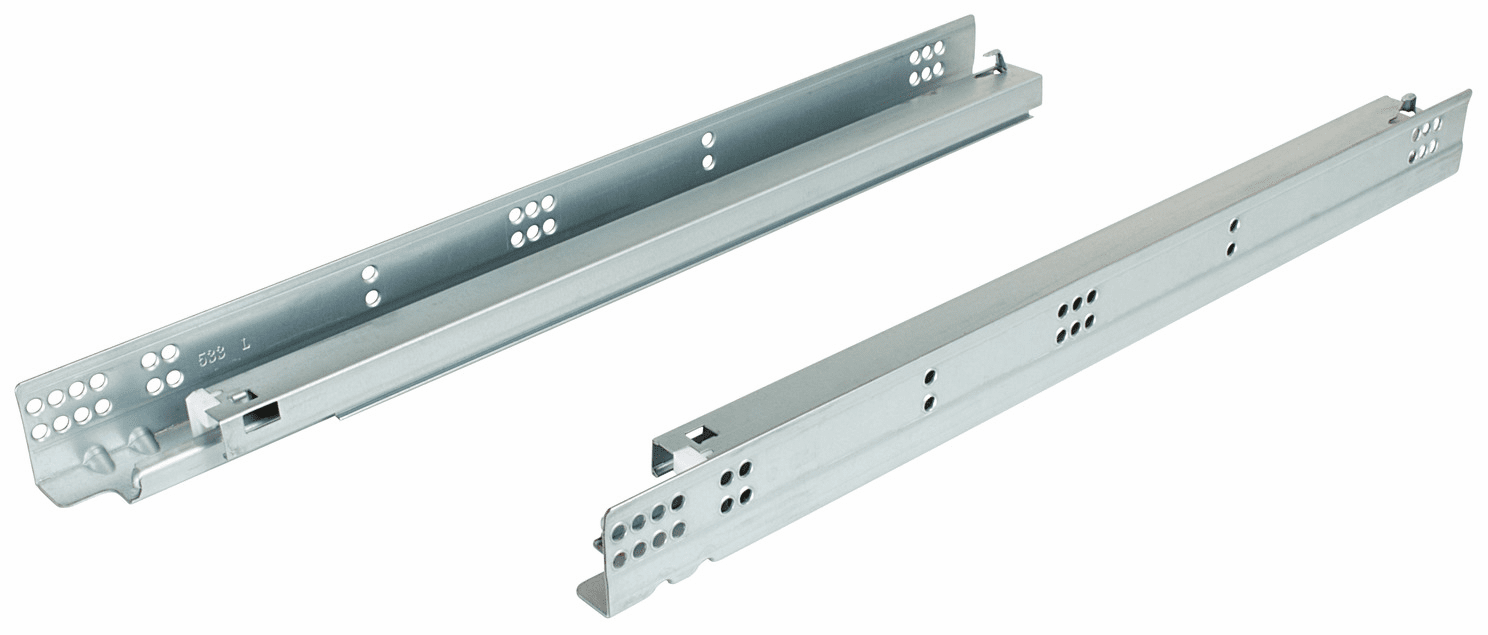

Hafele 433.32.853 Concealed undermount, soft & silent, full extension, 19mm, steel, zinc- plated, 75 pounds, 15"

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.32.853

  Product Title: Concealed Undermount Slide, Häfele Matrix UM A35, Full Extension, Length: 381 mm (15"); for 19mm material thickness

  Category: ,

  Item Details …

  - Rear face frame mounting bracket available

  - Material thickness :

  - Type of pull out : Full extension

  - Comfort functions opening/closing : Soft close

  - Load bearing capacity : 35.00 kg

  - Load bearing capacity : 75 lbs

  - Material : Steel

  - Color/finish : Galvanized

• Data Sheet

  Detailed Data Sheet

• Product Resources

  20220121_Installation Drawing

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.76A



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Front Locking Clips, for Häfele Matrix UM A35 (choose one):


  • 2D version 3D version

    433.32.990 433.32.991

    Click to order Click to order



  Optional Accessories:



  • Face Frame Mounting Brackets
