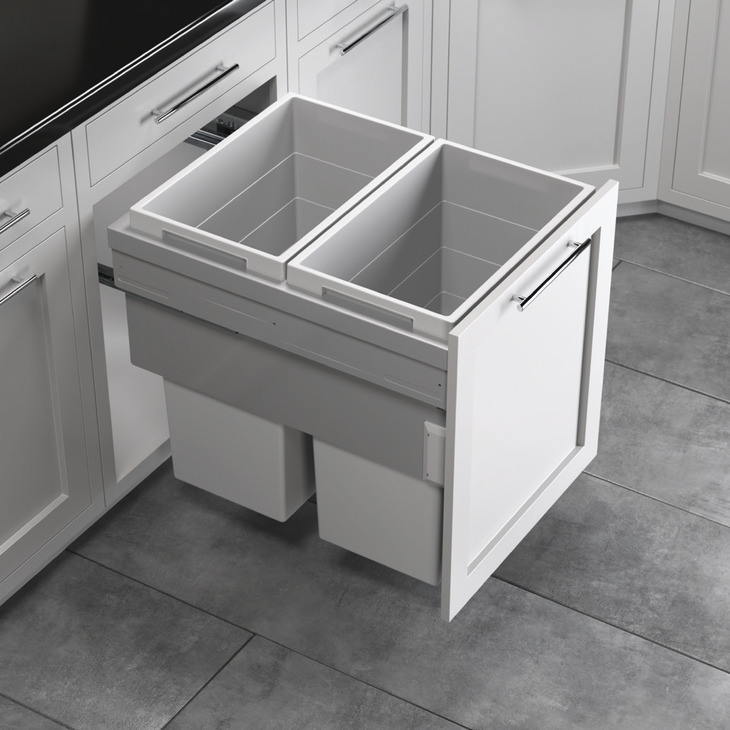

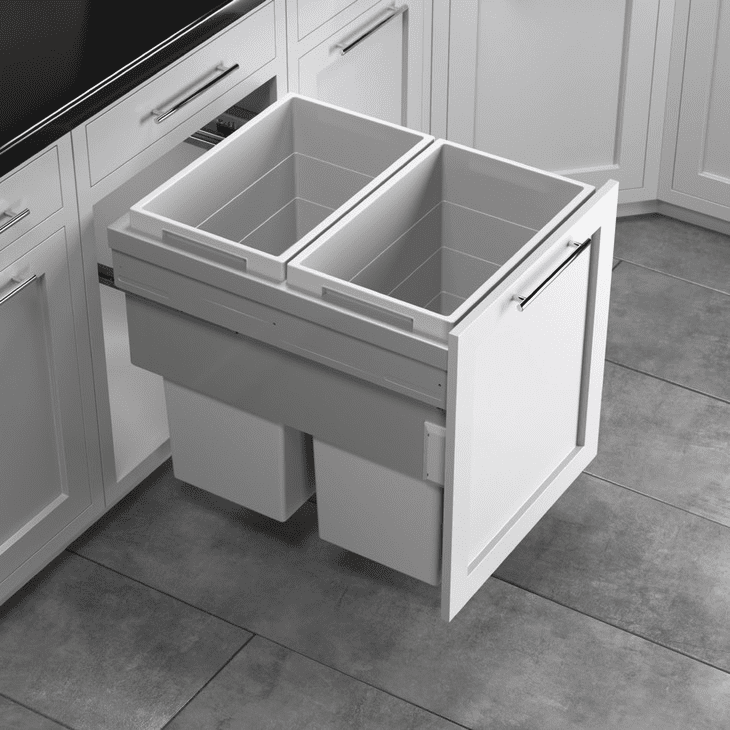

Hafele 502.77.523 Waste Bin Pull-Out, Hailo US Cargo FF 21, (Face Frame)

Product Information

• Description

  Manufacturer: Hafele
  Item: 502.77.523

  Product Title: Waste Bin Pull-Out, Hailo US Cargo FF 21, (Face Frame), Dark silver gray

  Category: Waste Bin Pull-Out, Hailo US Cargo FF 21, (Face Frame), Dark silver gray

  Item Details …

  - With synchronized soft close progressive slides

  - Cycle test: 100,000

  - For cabinet width : 533 mm

  - For internal cabinet width : 495?–?509 mm

  - Capacity : 2 x 44.4 quarts

  - Bin : 42 l / 42 l

  - Number of bins : 2.00

  - Color/finish : Lid & Frame: Silver powder-coatedBins: Light gray

  - For cabinet width : Internal: 19 1/2" - 20 1/16"

  - For cabinet depth : Required: 575 mm (22 5/8")

  - Material/finish : Lid & Frame: Steel Bins: Plastic

  - Area of application : For face frame cabinets

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs

  - Mounting : Side mounted

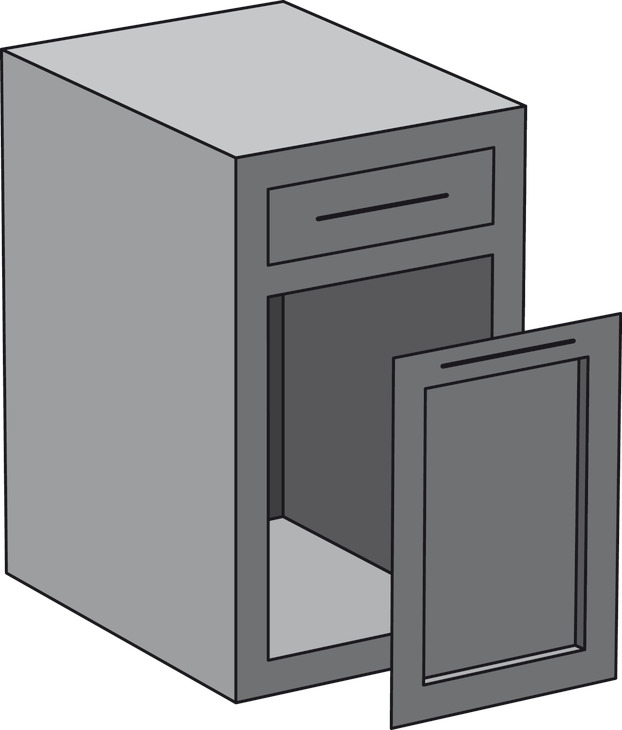

  - Installation : Fits below a drawer

  - Mounting location : Installation behind fronts, For screw fixing to side panel and cabinet door

  - Installation reference : D x H: 569 x 521 mm (22" x 20 1/2")

  - For internal cabinet width min. : 495.00 mm

  - For internal cabinet width max. : 509.00 mm

  - Installation width min. (inches) : 21"

  - Number of bins : 2.00

  - Supplied with:

  - Lid


  Additional Information …

  Overlay door bracket kit is required for full overlay applications

• Data Sheet

  Detailed Data Sheet

• Product Resources

  3613 - US Cargo Frame instructions and template

  Hailo US Cargo for Face Frame Cabinets

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.21A



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Bracket Kit, Overlay Door (choose one):


  • For full overlay applications

    502.77.990
