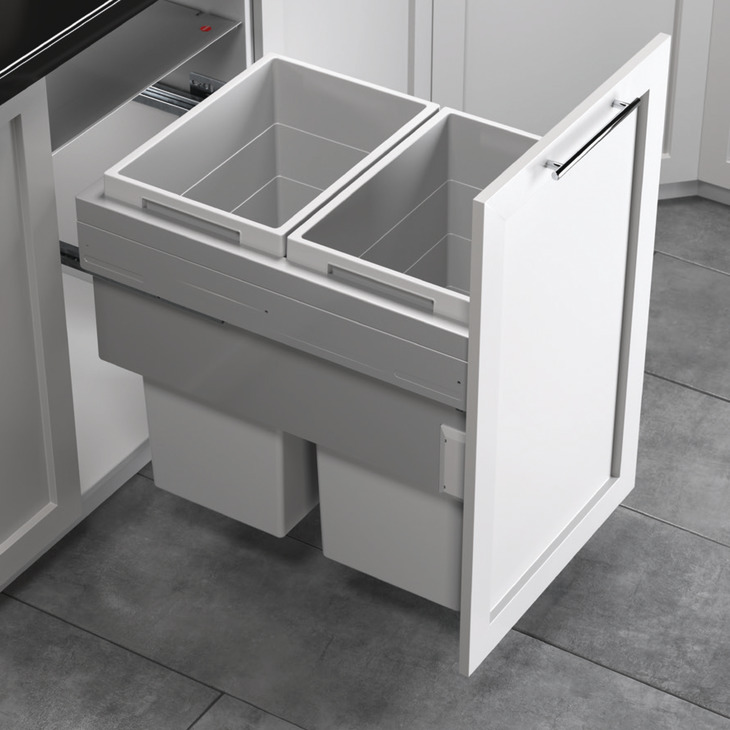

Hafele 502.77.532 US Cargo, frameless, for 18 inch cabinet, 2 x 37 liter bins, steel, plastic, gray

Product Information

• Description

  Manufacturer: Hafele
  Item: 502.77.532

  Product Title: Waste Bin Pull-Out, Hailo US Cargo 18 FL (Full Access), Dark silver gray

  Category: Waste Bin Pull-Out, Hailo US Cargo 18 FL (Full Access), Dark silver gray

  Item Details …

  - With synchronized soft close progressive slides

  - Cycle test: 100,000

  - For cabinet width : 457 mm

  - For internal cabinet width : 419?–?425 mm

  - For side panel thickness : 16 - 19 mm (5/8 - 3/4")

  - Capacity : 2 x 39 quarts

  - Bin : 37 l / 37 l

  - Number of bins : 2.00

  - Color/finish : Lid & Frame: Silver powder-coated; Bins: Light gray

  - For cabinet width : Internal: 16 1/2" - 16 3/4"

  - For cabinet depth : Required: 575 mm (22 5/8")

  - Material/finish : Lid & Frame: Steel; Bins: Plastic

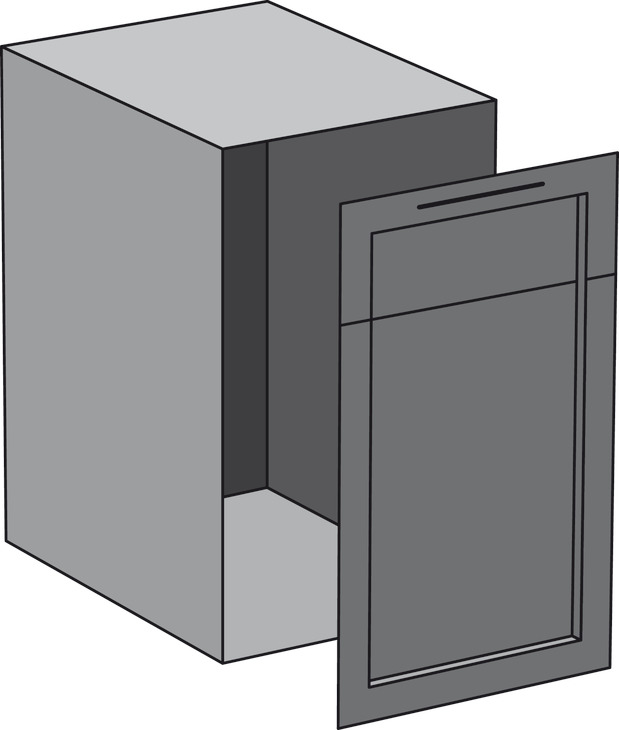

  - Area of application : For full access cabinets

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs

  - Installation : Side mountedFits below a drawer

  - Mounting location : Installation behind fronts, For screw fixing to side panel and cabinet door

  - Installation reference : D x H: 569 x 521 mm (22" x 20 1/2")

  - For internal cabinet width min. : 419.00 mm

  - For internal cabinet width max. : 425.00 mm

  - Installation width min. (inches) : 18"

• Data Sheet

  Detailed Data Sheet
