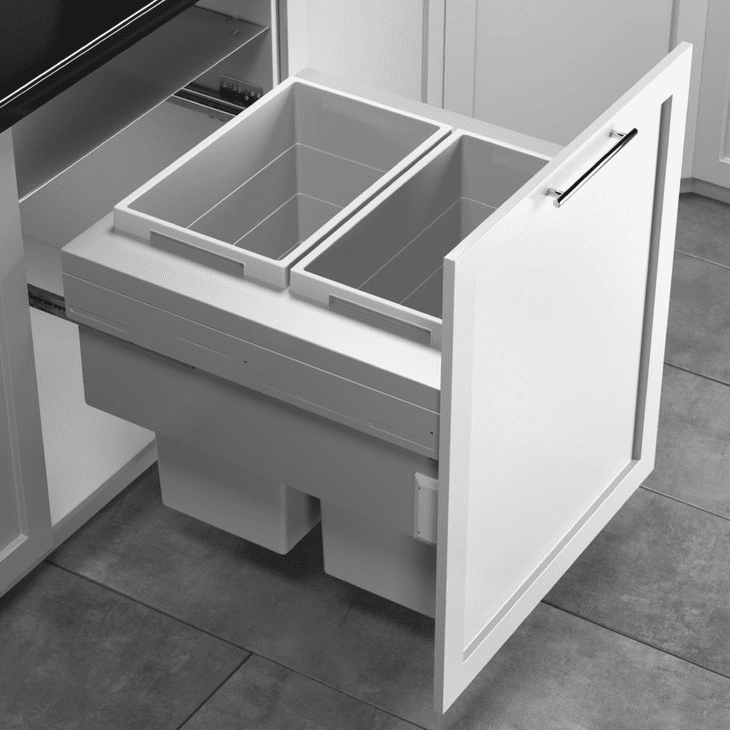

Hafele 502.77.534 US Cargo, frameless, for 24 inch cabinet, 2 x 42 liter bins, steel, plastic, gray

Product Information

• Description

  Manufacturer: Hafele
  Item: 502.77.534

  Product Title: Waste Bin Pull-Out, Hailo US Cargo 24 FL (Full Access), Dark silver gray

  Category: Waste Bin Pull-Out, Hailo US Cargo 24 FL (Full Access), Dark silver gray

  Item Details …

  - With synchronized soft close progressive slides

  - Cycle test: 100,000

  - For cabinet width : 610 mm

  - For internal cabinet width : 572?–?578 mm

  - For side panel thickness : 16 - 19 mm (5/8 - 3/4")

  - Capacity : 2 x 44.4 quarts

  - Bin : 42 l / 42 l

  - Number of bins : 2.00

  - Color/finish : Lid & Frame: Silver powder-coated; Bins: Light gray

  - For cabinet width : Internal: 22 1/2" - 22 3/4"

  - For cabinet depth : Required: 575 mm (22 5/8")

  - Material/finish : Lid & Frame: Steel; Bins: Plastic

  - Area of application : For full access cabinets

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs

  - Installation : Side mountedFits below a drawer

  - Mounting location : Installation behind fronts, For screw fixing to side panel and cabinet door

  - Installation reference : D x H: 569 x 521 mm (22" x 20 1/2")

  - For internal cabinet width min. : 572.00 mm

  - For internal cabinet width max. : 578.00 mm

  - Installation width min. (inches) : 24"

• Data Sheet

  Detailed Data Sheet

• Product Resources

  3613 - US-Cargo Boxed instructions and template

  Hailo US Cargo for Frameless Cabinets

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.21B
