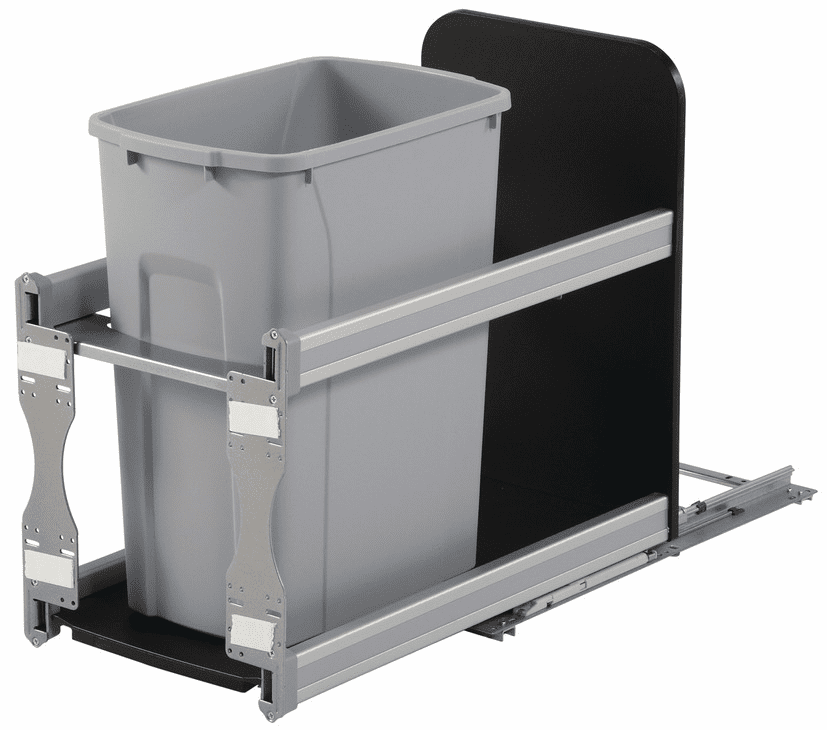

Hafele 503.11.513 Waste Bin Pull-Out, KV Bottom Mount, Single, Undermount Slide with Soft-Close Frosted nickel, 50 qt., height: 591 mm (23 9/32")

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.11.513

  Product Title: Waste Bin Pull-Out, KV Bottom Mount, Single, Undermount Slide with Soft-Close, Frosted nickel, 50 qt., height: 591 mm (23 9/32")

  Category: Waste Bin Pull-Out, KV Bottom Mount, Single, Undermount Slide with Soft-Close,

  Item Details …

  - Door brackets are reversible to adapt from standard width opening up to door sizes 3" wider

  - If using lid, add 3/4" to height

  - Heavy-duty, under-mount slide

  - Installs in minutes using self-aligning brackets secured with only four screws

  - Color coordinated aluminum side rails provide stability while concealing slide hardware

  - Unique, washable, solid backsplash and floor: Prevents debris from falling through to floor/cabinet

  - Easy to clean

  - Conceals hardware

  - Decorative rail accents can be customized to match countertops or cabinetry

  - Suitable for : Soft & silentEco-friendly finish

  - Number of bins : 1.00

  - Width (inch) : 11 13/16"

  - Depth (inch) : 22 7/16"

  - Material/finish : Frame: SteelBin: Plastic

  - Version : Soft & silentEco-friendly finish

  - Load bearing capacity : 100 lbs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions

  Soft-Close Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.32



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.19-3.27.pdf

  Hafele 503.11.513, 503-11-513, 50311513, 503.11


  Specifications/Hafele Catalog - Page# FC3.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Replacement Waste Bin, for KV Pull Out Units
  • Optional Waste Bin Lid, for KV Replacement Waste Bins
