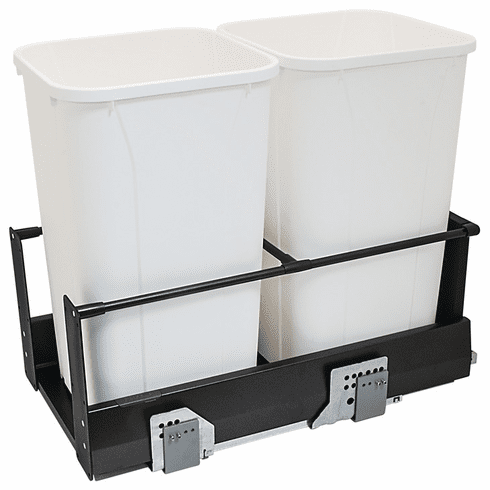

Hafele 503.15.231 Waste Bin Pull-Out, MX, Double, 2 x 27 qt Frame: anthracite, bottom and back: black melamine, bin: gray

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.15.231

  Product Title: Waste Bin Pull-Out, Häfele Matrix, Double, 2 x 27 qt, Frame: anthracite, bottom and back: black melamine, bin: gray

  Category: Waste Bin Pull-Out, Häfele Matrix, Double, 2 x 27 qt,

  Item Details …

  - Add your door thickness for inset applications

  - Double wall steel frame system provides heavy duty structure and a stylish design

  - Unit comes pre-assembled with bins included

  - Melamine Bottom and Back with Edgebanding

  - For cabinet width : ?324 mm

  - For internal cabinet height : 489.00 mm

  - For internal cabinet depth : ?554 mm

  - Capacity : 51.00 l

  - Capacity : 2 x 27 qt.

  - Bin : 25.5 l / 25.5 l

  - Suitable for : Soft & Silent

  - Internal cabinet height : Min. 19 1/4"

  - Number of bins : 2.00

  - For internal cabinet depth min. : 21 13/16"

  - Internal cabinet width : 12 - 13 1/2"

  - Material/finish : Frame: Steel, Bottom & back: Particle board, Bin: Plastic

  - Area of application : Bottom mount unit designed for Face Frame or Frameless cabinets

  - Version : Minimum Opening Width:• 305 mm (12") Face Frame• 324 mm (12 3/4") Frameless• 343 mm (13 1/2") with door brackets reversed for Full Overlay 5 piece doors

  - Type of pull out : Full extension progressive action runners

  - Load bearing capacity : 110 lbs

  - Mounting : Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)

  - Installation : Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)

  - Supplied with:

  - Mounting screws

  - Mounting instructions

• Data Sheet

  Detailed Data Sheet

• Product Resources

  MX Waste Bin Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.26
