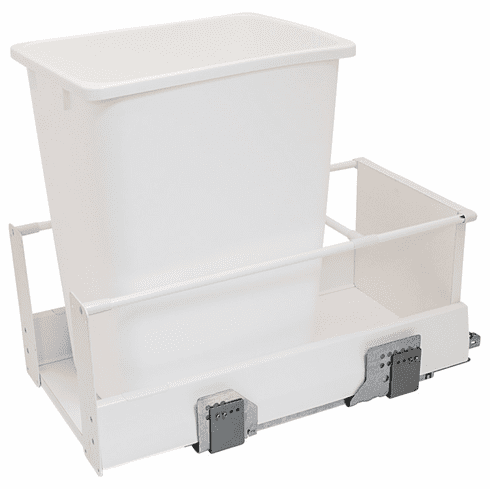

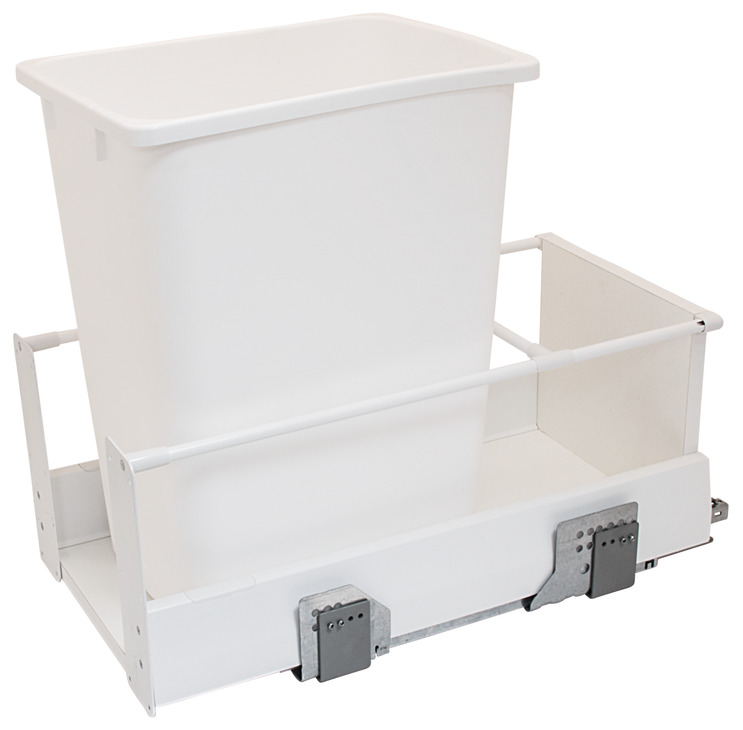

Hafele 503.15.729 Matrix Box P Trash Can, single, bottom mount, steel, white, 36 quart, 350mm deep

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.15.729

  Product Title: Waste Bin Pull-Out, Häfele Matrix, Single, White

  Category: Waste Bin Pull-Out, Häfele Matrix, Single,

  Item Details …

  - Soft & silent

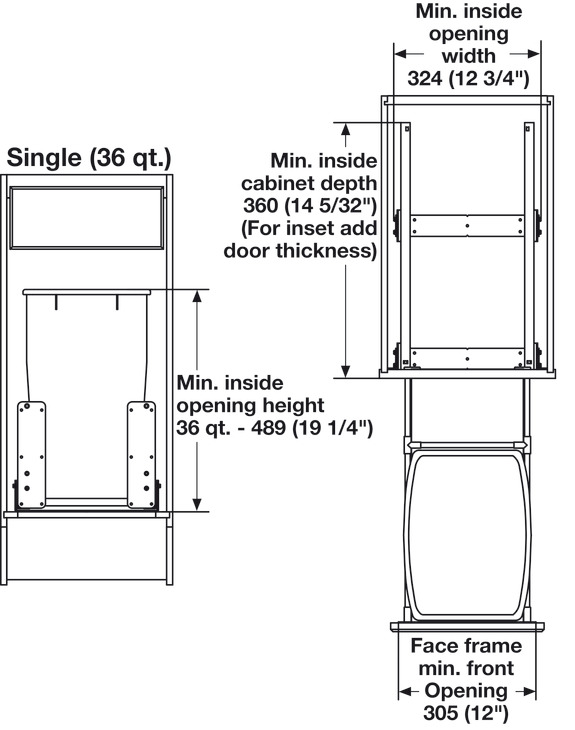

  - Minimum height of opening: 489 mm (19 1/4") for 36 qt and 610 mm (24") for 52 qt

  - Minimum Opening Width:

  - • 305 mm (12") Face Frame

  - • 324 mm (12 3/4") Frameless

  - • 343 mm (13 1/2") with door brackets reversed for Full Overlay 5 piece doors

  - Double wall steel frame system provides heavy duty structure and a stylish design

  - Unit comes pre-assembled with bins included

  - Melamine Bottom and Back with Edgebanding

  - For internal cabinet height : 489.00 mm

  - For internal cabinet height : 19 1/4"

  - For internal cabinet depth : ?360 mm

  - For internal cabinet depth min. : 14 3/16"

  - Material/finish : Frame: Steel; Bottom & back: Melamine; Bin: Plastic

  - Area of application : Bottom mount unit designed for Face Frame or Frameless cabinets

  - Type of pull out : Full extension progressive runner

  - Load bearing capacity : 50.00 kg

  - Mounting : Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)

  - Adjustment facility : 6-way

  - Supplied with:

  - Mounting screws

  - Mounting instructions
