Hafele 541.32.441 LeMans II Set, for Blind Corner Cabinets Swings left, champagne/maple, 2 x 40 shape trays

Product Information

• Description

  Manufacturer: Hafele
  Item: 541.32.441

  Product Title: LeMans II Set, for Blind Corner Cabinets, with soft closing and self closing mechanisms, with non-slip effect, Swings left, champagne/maple, 2 x 40 shape trays

  Category: LeMans II Set, for Blind Corner Cabinets, with soft closing and self closing mechanisms, with non-slip effect

  Item Details …

  - Shelves height adjustable at intervals of (2") 50 mm via post and side profile

  - Soft & Silent

  - For internal cabinet height : ?546 mm

  - Load bearing capacity : 55 lbs

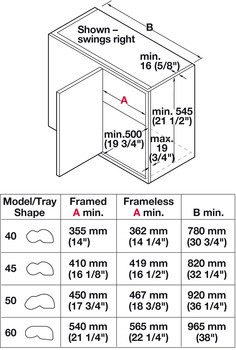

  - Internal cabinet height : Min. 21 1/2"

  - Height adjustment : Shelves are height adjustable every 2"

  - Area of application : For full height door and door/drawer applications

  - Version : 574 sq. in capacityTray Size: 12"

  - Material : Shelf: MelamineSurround: Steel

  - Note on load bearing capacity : Max. per shelf

  - Supplied with:

  - 2 trays

  - 1 post

  - 2 soft close

  - 1 mounting profile

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Lemans II Complete Mounting Instructions

  Lemans II Specs All Sizes

  Lemans II Model 40 CAD Drawing

  LeMans II 40er Face Frame Block Positions

  LeMans II 40er Frameless Adjustment Block Positions
