Hafele 541.32.750 LeMans II Set, for Blind Corner Cabinets Swings right, chrome/white, 2 x 50 shape trays

Product Information

• Description

  Manufacturer: Hafele
  Item: 541.32.750

  Product Title: LeMans II Set, for Blind Corner Cabinets, with soft closing and self closing mechanisms, with non-slip effect, Swings right, chrome/white, 2 x 50 shape trays

  Category: LeMans II Set, for Blind Corner Cabinets, with soft closing and self closing mechanisms, with non-slip effect

  Item Details …

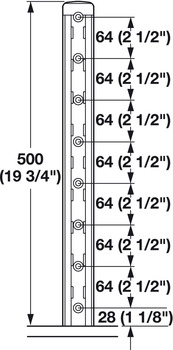

  - Shelves height adjustable at intervals of (2") 50 mm via post and side profile

  - Soft & Silent

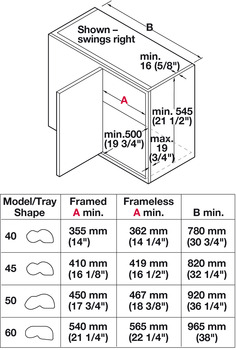

  - For internal cabinet height : ?546 mm

  - Load bearing capacity : 55 lbs

  - Internal cabinet height : Min. 21 1/2"

  - Height adjustment : Shelves are height adjustable every 2"

  - Area of application : For full height door and door/drawer applications

  - Version : 884 sq. in capacityTray Size: 18"

  - Material : Shelf: MelamineSurround: Steel

  - Note on load bearing capacity : Max. per shelf

  - Supplied with:

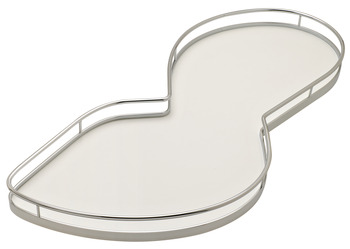

  - 2 trays

  - 1 post

  - 2 soft close

  - 1 mounting profile

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Lemans II Specs All Sizes

  Lemans II Complete Mounting Instructions

  Lemans II Model 50 CAD Drawing

  Technical data sheet

  Mounting video



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.4-3.5.pdf

  Hafele 541.32.750, 541-32-750, 54132750, 541.32


  Specifications/Hafele Catalog - Page# FC3.4: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Highboard Post Kit, for LeMans II
  • Dampener, for LeMans II
  • Optional Filler Strip, for LeMans II
  • Angle Reduction Bracket, for LeMans II
