Hafele 546.17.408 Magic Corner I, for Blind Corner Cabinets Champagne, swing left

Product Information

• Description

  Manufacturer: Hafele
  Item: 546.17.408

  Product Title: Magic Corner I, for Blind Corner Cabinets, Champagne, swing left

  Category: Magic Corner I, for Blind Corner Cabinets,

  Item Details …

  - Soft & Silent feature slows the pull-out just before final closure, creating automatic and silent closing

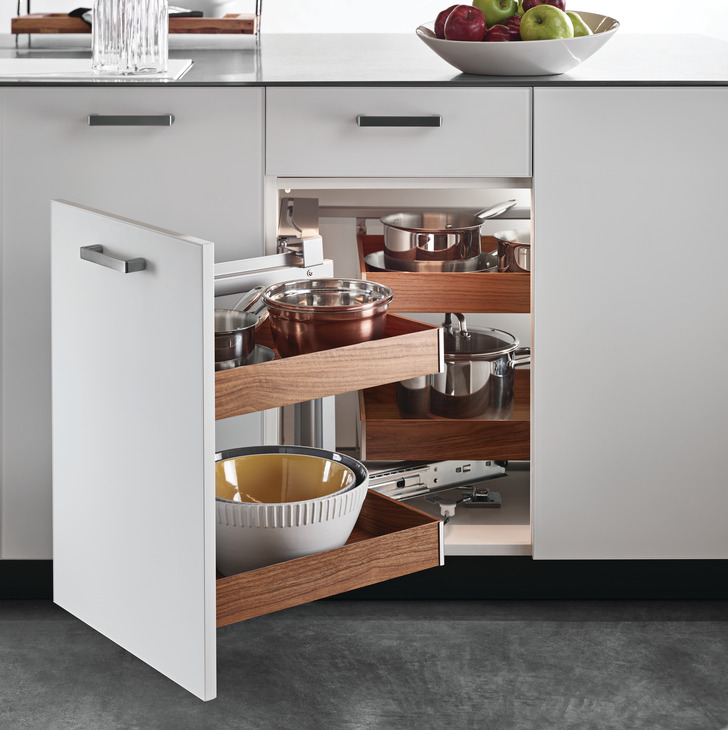

  - When the door is opened, it is pulled outward, then swiveled to the side along with the front baskets while the back baskets are simultaneously moved into the cabinet opening

  - Minimum door opening 396 mm (15 5/8") by using tray 295 mm (11 5/8") in front door position, 492 mm (19 3/8") with 390 mm (15 3/8") baskets in front

  - Storage capacity: 1,001 in2 using 295 mm x 470 mm (11 5/8" x 18 1/2") front and 390 mm x 470 mm (15 3/8" x 18 1/2") back 1,138 in2 using 390 mm x 470 mm (15 3/8" x 18 1/2") front and back

  - For internal cabinet height : ?525 mm

  - Load bearing capacity : Back/per basket: 20 lbs; Front/per basket: 15 lbs

  - Dim. C : 38 3/8 – 43 7/8"

  - Internal cabinet height : 21 1/4"

  - Dim. A : 15 5/8 – 23 5/8”

  - Dim. B : 19 3/4"

  - Material : Frame: Steel, powder-coatedSlide: Steel

  - For internal cabinet width : 974?–?1,115 mm

  - Load bearing capacity at front : 6.80 kg

  - Load bearing capacity at rear : 9.00 kg

  - Installation : The cabinet door mounts to the pull-out frame

  - Supplied with:

  - Mounting template


  Additional Information …

  Tray sets must be ordered separately. Mounting hardware not included

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Magic Corner I Frame Instructions

  Mounting Template 300.0895.33

  Installing the Magic Corner I

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.6



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.6-3.6.pdf

  Hafele 546.17.408, 546-17-408, 54617408, 546.17


  Specifications/Hafele Catalog - Page# FC3.6: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Storage Tray, Arena Plus, for 88 lbs. Weight Capacity Pantry Pull-Out and Base and Corner Units (choose one):


  • With non-slip effect, Chrome/maple, width: 110 mm (4 3/8") With non-slip effect, Chrome/maple, width: 160 mm (6 1/4") With non-slip effect, Chrome/maple, width: 228 mm (9") With non-slip effect, Chrome/maple, depth: 295 mm (11 5/8") With non-slip effect, Chrome/maple, depth: 390 mm (15 3/8") With non-slip effect, Classic, railing: Chrome plated, shelf: White, width: 110 mm With non-slip effect, Classic, railing: Chrome plated, shelf: White, width: 160 mm With non-slip effect, Classic, railing: Chrome plated, shelf: White, width: 228 mm With non-slip effect, Chrome/white, depth: 295 mm (11 5/8") With non-slip effect, Chrome/gray, depth: 295 mm (11 5/8") With non-slip effect, Chrome/gray, depth: 390 mm (15 3/8") With non-slip effect, Chrome/white, depth: 390 mm (15 3/8") With non-slip effect, Champagne/maple, depth: 295 mm (11 5/8") With non-slip effect, Champagne/maple, depth: 390 mm (15 3/8") With non-slip effect With non-slip effect

    545.60.175 545.60.176 545.60.177 545.60.178 545.60.179 545.60.275 545.60.276 545.60.277 545.60.278 545.60.578 545.60.579 546.17.268 546.60.478 546.60.479 546.65.321 546.65.324

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order
