Hafele 546.17.917 Magic Corner I, for Blind Corner Cabinets Silver, swing right

Product Information

• Description

  Manufacturer: Hafele
  Item: 546.17.917

  Product Title: Magic Corner I, for Blind Corner Cabinets, Silver, swing right

  Category: Magic Corner I, for Blind Corner Cabinets,

  Item Details …

  - Soft & Silent feature slows the pull-out just before final closure, creating automatic and silent closing

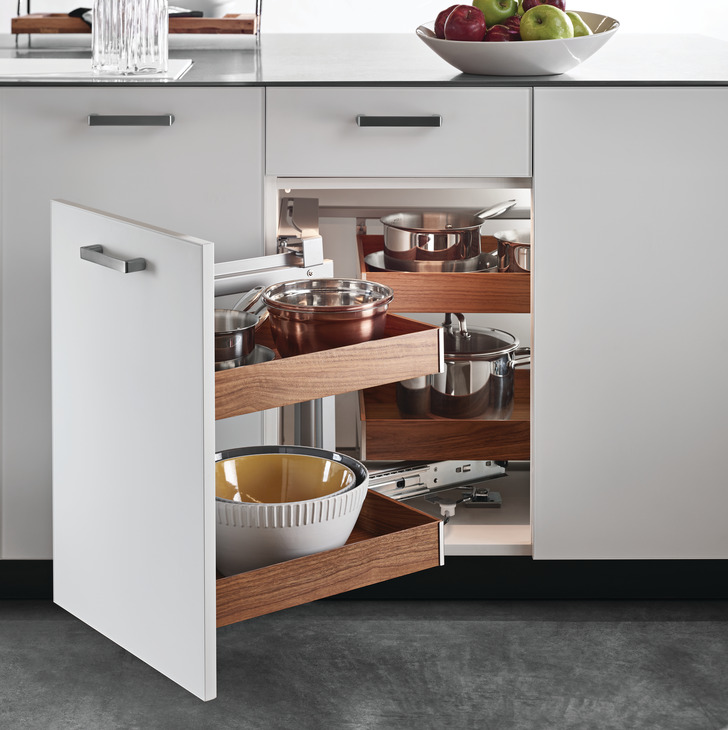

  - When the door is opened, it is pulled outward, then swiveled to the side along with the front baskets while the back baskets are simultaneously moved into the cabinet opening

  - Minimum door opening 396 mm (15 5/8") by using tray 295 mm (11 5/8") in front door position, 492 mm (19 3/8") with 390 mm (15 3/8") baskets in front

  - Storage capacity: 1,001 in2 using 295 mm x 470 mm (11 5/8" x 18 1/2") front and 390 mm x 470 mm (15 3/8" x 18 1/2") back 1,138 in2 using 390 mm x 470 mm (15 3/8" x 18 1/2") front and back

  - For internal cabinet height : ?525 mm

  - Load bearing capacity : Back/per basket: 20 lbs; Front/per basket: 15 lbs

  - Dim. C : 38 3/8 – 43 7/8"

  - Internal cabinet height : 21 1/4"

  - Dim. A : 15 5/8 – 23 5/8”

  - Dim. B : 19 3/4"

  - Material : Frame: Steel, powder-coatedSlide: Steel

  - For internal cabinet width : 974?–?1,115 mm

  - Load bearing capacity at front : 6.80 kg

  - Load bearing capacity at rear : 9.00 kg

  - Installation : The cabinet door mounts to the pull-out frame

  - Supplied with:

  - Mounting template


  Additional Information …

  Tray sets must be ordered separately. Mounting hardware not included
