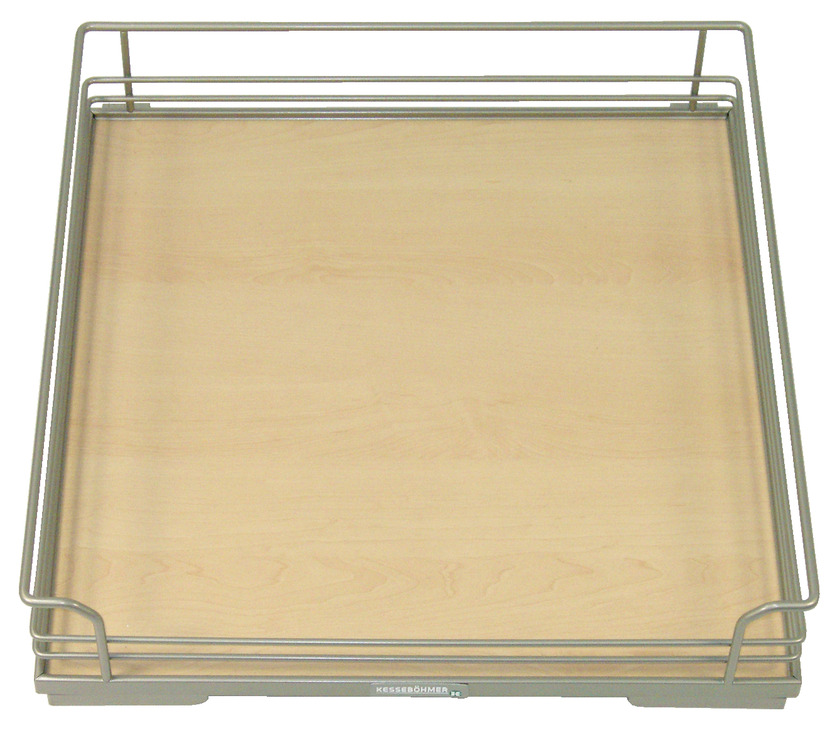

Hafele 547.12.823 Storage Tray, for Internal Drawer Pull-Out Arena Plus, Champagne/Maple, width 15 7/8"

Product Information

• Description

  Manufacturer: Hafele
  Item: 547.12.823

  Product Title: Storage Tray, for Internal Drawer Pull-Out, Arena Plus, Champagne/Maple, width 15 7/8"

  Category: Storage Tray, for Internal Drawer Pull-Out, Arena Plus

  Item Details …

  - Attractive pull-out trays offer increased usability and maximize base cabinet storage potential

  - Version : Non-slip

  - Material : Shelf: MelamineSurround: Steel

  - Installation : Consider door and hinge protrusion for clearanceOpening should be 12 mm (1/2") wider than pull-out

  - Depth (inch) : 20 5/8"

  - Height (inch) : 4 5/16"

  - Closing effect : Soft & Silent

  - Mounting : Position above or below door hinges

  - Order reference

  - Mount with designated 533 mm (21") undermount slides (Salice Futura, Salice F70, Grass Dynapro or Grass Elite). Please order separately.


  Additional Information …

  Can be blocked out with “Quick Tray” system for face frame applications

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.66



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.47-3.47.pdf

  Hafele 547.12.823, 547-12-823, 54712823, 547.12


  Specifications/Hafele Catalog - Page# FC3.42: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Salice A7555 Futura 16 Slide, Full Extension, 75 lbs (choose one):


  • 229 mm drawer box length 305 mm drawer box length 381 mm drawer box length 457 mm drawer box length 533 mm drawer box length

    433.17.723 433.17.730 433.17.738 433.17.745 433.17.753

    Click to order Click to order Click to order Click to order Click to order



  Mounting Bracket, for Face Frame Cabinets (choose one):


  • Standard Narrow

    433.17.000 433.17.001

    Click to order Click to order



  Height Adjustable Disconnect Clips, for Salice Futura Slides (choose one):


  • Gray

    421.23.000

    Click to order
