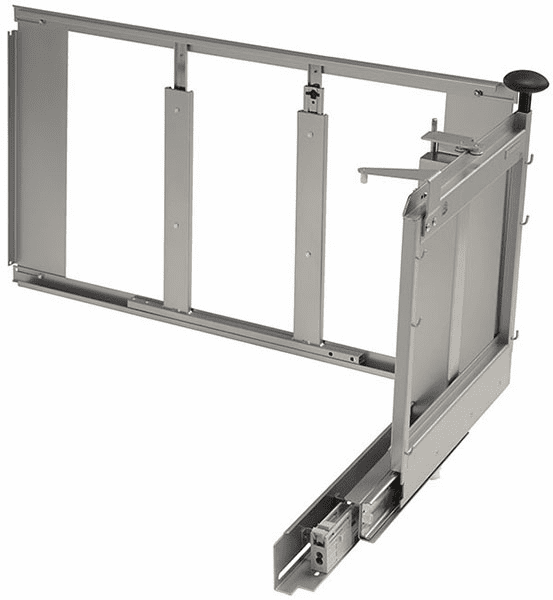

Hafele 548.10.240 Magic Corner II, for Blind Corner Cabinets Silver, swings right

Product Information

• Description

  Manufacturer: Hafele
  Item: 548.10.240

  Product Title: Magic Corner II, for Blind Corner Cabinets, Silver, swings right

  Category: Magic Corner II, for Blind Corner Cabinets,

  Item Details …

  - Storage capacity: 1,138 in˛

  - Soft & Silent feature slows the pull-out just before final closure, creating automatic and silent closing

  - Back baskets slide forward individually providing total access

  - Requires minimum door opening of 520 mm (20 1/2") and additional clearance for door hinge

  - Front baskets pull out and swivel to a 90° open position while back baskets are simultaneously moved to the cabinet opening

  - For internal cabinet height : ?555 mm

  - Load bearing capacity : Back/per basket: 17 lbs; Front/per basket: 22 lbs

  - Internal cabinet height : 21 7/8"

  - Area of application : For use with hinged door

  - Version : Soft & silent

  - Material : Steel, powder-coated

  - Load bearing capacity at front : 10.00 kg

  - Load bearing capacity at rear : 8.00 kg

  - Supplied with:

  - Mounting instructions


  Additional Information …

  Traverse kit and mounting hardware are not included

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Magic Corner II Frame Instructions

  Magic Corner II RH CAD

  Installing the Magic Corner II

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.8



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.7-3.7.pdf

  Hafele 548.10.240, 548-10-240, 54810240, 548.10


  Specifications/Hafele Catalog - Page# FC3.7: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Tray Set, for Magic Corner II (choose one):


  • Chrome surround/white bottom Chrome surround/maple bottom Chrome surround/anthracite bottom Champagne surround/maple bottom Chrome surround/gray bottom

    548.11.264 548.11.266 548.11.376 548.11.466 548.11.566

    Click to order Click to order Click to order Click to order Click to order



  Wire Basket Set, for Magic Corner II (choose one):


  • Chrome

    548.11.261

    Click to order



  Magic Corner II Traverse Set (choose one):


  • silver champagne

    548.10.290 548.10.890

    Click to order Click to order



  Fineline™ Magic Corner Side Hang Box (choose one):


  • 11 5/8" depth, black ash 15 3/8" depth, black ash 11 5/8" depth, walnut 15 3/8" depth, walnut 11 5/8" depth, birch 15 3/8" depth, birch

    546.04.381 546.04.382 546.04.781 546.04.782 546.04.881 546.04.882

    Click to order Click to order Click to order Click to order Click to order Click to order



  Fineline™ Magic Corner II Rear Box (choose one):


  • Black ash Walnut Birch

    546.04.390 546.04.790 546.04.890

    Click to order Click to order Click to order
