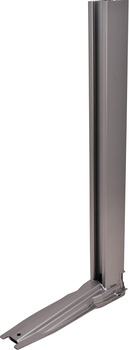

Hafele 549.60.906 Pantry Frame, for LAVIDO Pantry Pull-Out 1130 mm (48"), for 57" to 77" height

Product Information

• Description

  Manufacturer: Hafele
  Item: 549.60.906

  Product Title: Pantry Frame, for LAVIDO Pantry Pull-Out, Top shelf storage: (48") 1219 mm

  Category: Pantry Frame, for LAVIDO Pantry Pull-Out,

  Item Details …

  - Infinite height adjustment feature on shelves; simply lift a lever to unlock the shelf for repositioning

  - This extremely flexible pantry storage solution provides high visibility and easy-to-reach access from three sides

  - Synchronized runner, for perfectly smooth operation

  - Full access to shelves from all 3 sides

  - Width dimensions are actual shelf width

  - Tempered glass sides come standard and are removable

  - For cabinet width : 500?–?600 mm

  - Load bearing capacity : Per shelf: 44 lbs/Total:286 lbs

  - Extension length : 470 mm (18 1/2")

  - For internal cabinet depth min. : 19 11/16"

  - Version : Height of storage surface of top shelf: 48"

  - Material : Steel

  - Finish : Silver

  - Min. internal cabinet depth : 500.00 mm

  - Order reference

  - There are 3 components you need to order for the Lavido Pantry:

  - A. Pantry Frame

  - B. Trays

  - C. Full Extension Runner

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Lavido Mounting Instructions

  Installing the LAVIDO Pantry Pull-Out

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.58



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.44-3.45.pdf

  Hafele 549.60.906, 549-60-906, 54960906, 549.60


  Specifications/Hafele Catalog - Page# FC3.39: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Tray Set (of Four), for LAVIDO Pantry Pull-Out (choose one):


  • Chrome/Anthracite, 403 mm (15 1/4") Chrome/Anthracite, 449 mm (17 11/16") Chrome/Anthracite, 549 mm (21 5/8") Chrome/White, 403 mm (15 1/4") Chrome/White, 449 mm (17 11/16") Chrome/White, 549 mm (21 5/8") Chrome/Maple, 403 mm (15 1/4") Chrome/Maple, 449 mm (17 11/16") Chrome/Maple, 549 mm (21 5/8") Chrome/Gray, 403 mm (15 1/4") Chrome/Gray, 449 mm (17 11/16") Chrome/Gray, 549 mm (21 5/8")

    549.60.254 549.60.255 549.60.256 549.64.204 549.64.205 549.64.206 549.64.214 549.64.215 549.64.216 549.64.224 549.64.225 549.64.226

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Full Extension Runner, for LAVIDO Pantry Pull-Out (choose one):


  • undefined

    549.60.990

    Click to order



  Optional Accessories:



  • Individual Adjustable Tray, for LAVIDO Pantry Pull-Out
  • Optional E-Touch Auto Opener, for LAVIDO Pantry Pull-Out
  • Tray Set (of Four), for LAVIDO Pantry Pull-Out
  • Individual Adjustable Tray, for LAVIDO Pantry Pull-Out

• Videos

  Play: Lavido Mounting Video
