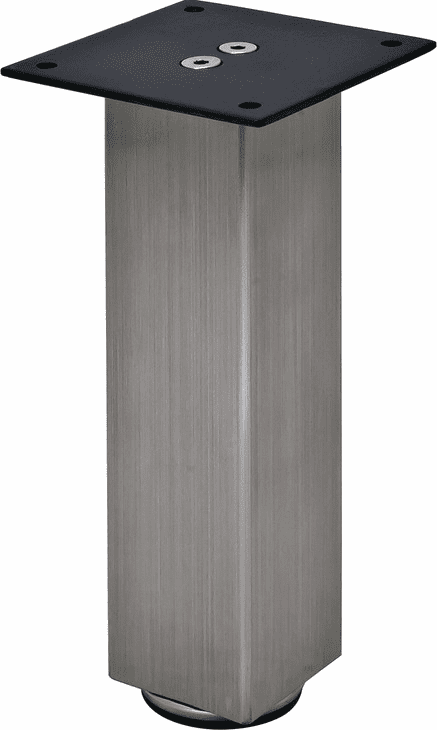

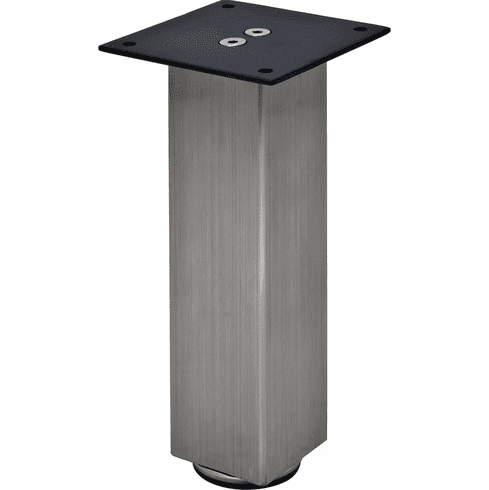

Hafele 635.70.032 Mini Leg, Square 203 mm (8")

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.70.032

  Product Title: Mini Leg, Square, 203 mm (8")

  Category: Mini Leg, Square,

  Item Details …

  - High quality: 304 grade brushed stainless steel

  - All legs have a wall thickness of 1.5 mm

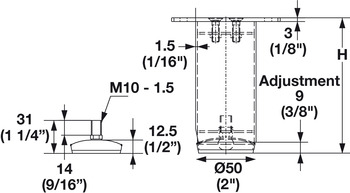

  - Adjustable leveler offers 3/8” of adjustment

  - Width (inch) : 2"

  - Diameter (inch) : 2"

  - Material : Legs: 304 Stainless SteelMounting Plate: Steel, black powder-coated

  - Installation reference : High quality: 304 grade brushed stainless steelAll legs have a wall thickness of 1.5 mmAdjustable leveler offers 3/8” of adjustment

  - Supplied with:

  - Leg

  - Mounting plate

  - Adjustable lever

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.53



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.42-6.43.pdf



• Required Products & Optional Accessories

  Optional Accessories:



  • Anchoring Foot, Optional
