Manufacturer: Hafele
Item: 637.45.297

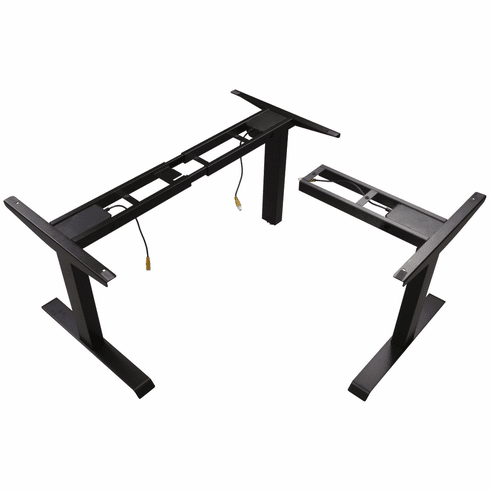

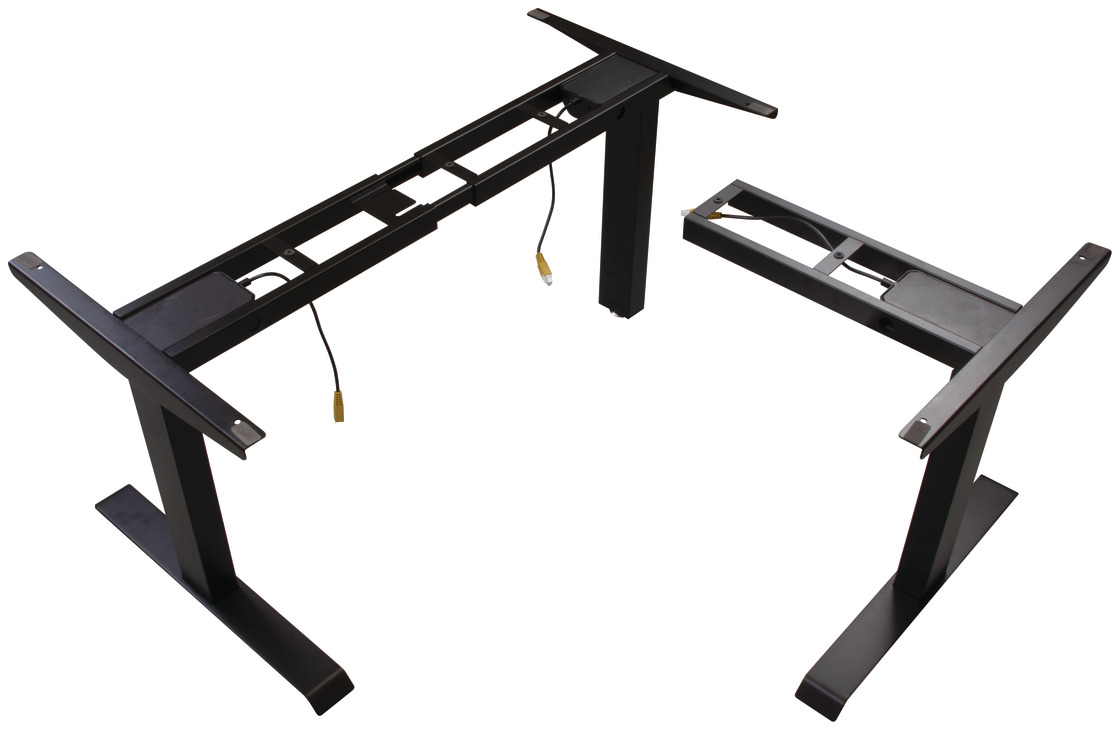

Product Title: Adjustable Table 3-Leg System, STAR, silver
Category: Adjustable Table 3-Leg System, STAR,
Item Details …
- STAR tables are safe, with an integrated Collision Protection System:
- 1). AMP Draw – If the control box detects that any of the legs receive a spike in amp-draw due to for example, something hitting the table, the table will reverse direction to avoid damage.
- 2). Gyro Sensor – This internal sensor will detect the following:
- • Sudden change in speed (up or down)
- • Sudden change in the angle of the desk (up or down)
- • An impact to the worksurface (up or down)
- Stroke: 25 1/2â€
- Meets BIFMA X5.5 standards
- UL 962 Recognized
- Made in the USA.
- Weight rating: 335 lbs including top weight

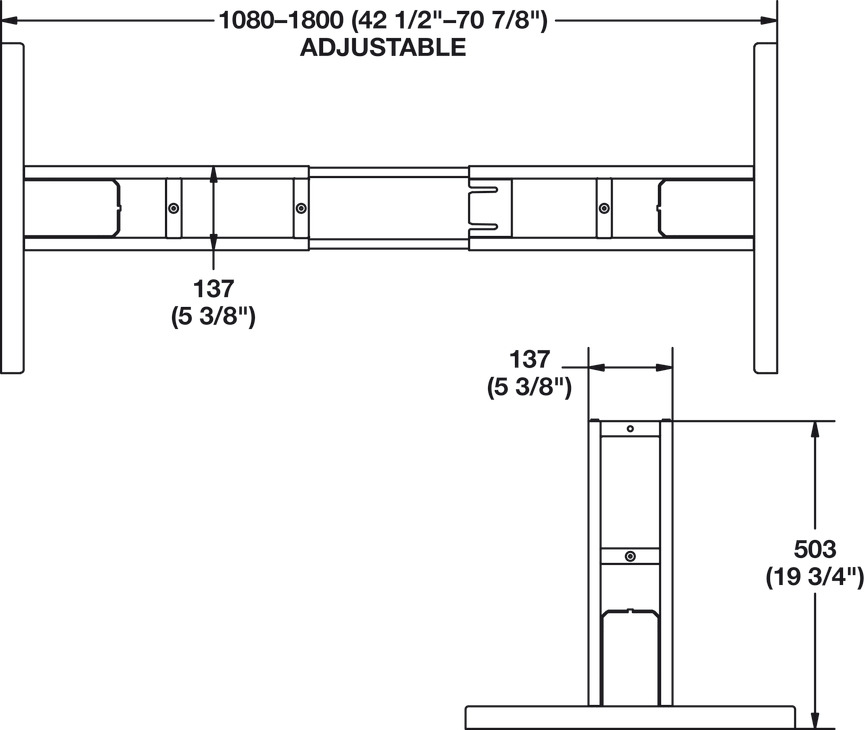

- Version : With 3-stage adjustable columnsWith 4-setting programmable switchWith adjustable width support beam, adjustment range 42 ½†– 71†and a floating 3rd leg fixed beam at 19 ¾â€
- Material : Steel
- Travel : 40 mm /sec
- Area of application : Designed for corner table workstations.Recommended for:Top widths: 36" - 84"Top depths: 24" - 30"

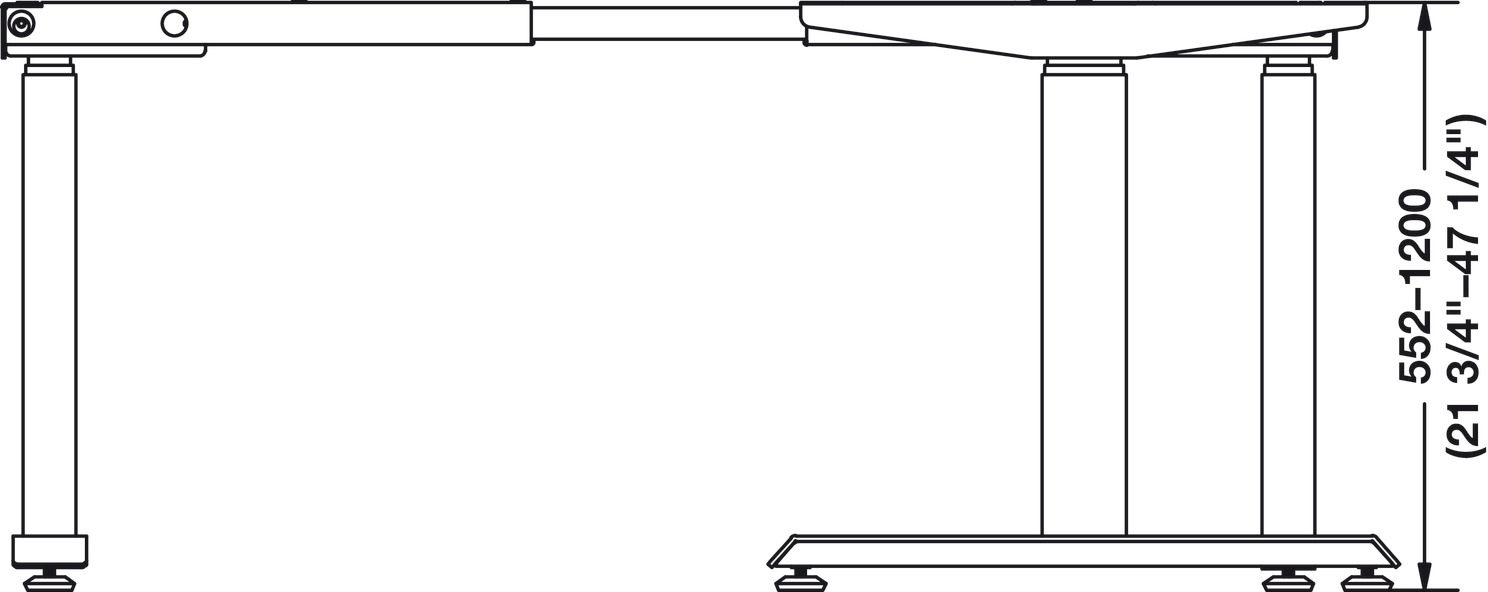

- Height adjustment : 21 3/4†– 47 1/4â€, not including top thickness
- Load bearing capacity : 335 lbs. including top weight
- Supplied with:
- 3 Adjustable columns
- Support beams
- 3 Top Supports plates
- 2 Feet
- Programmable switch
- Control box, wiring and assembly hardware
Additional Information …
Weight rating is based on an evenly distributed load over tabletop. Please provide at least 1†space between tabletop and any adjoining surfaces, cabinets, etc.
