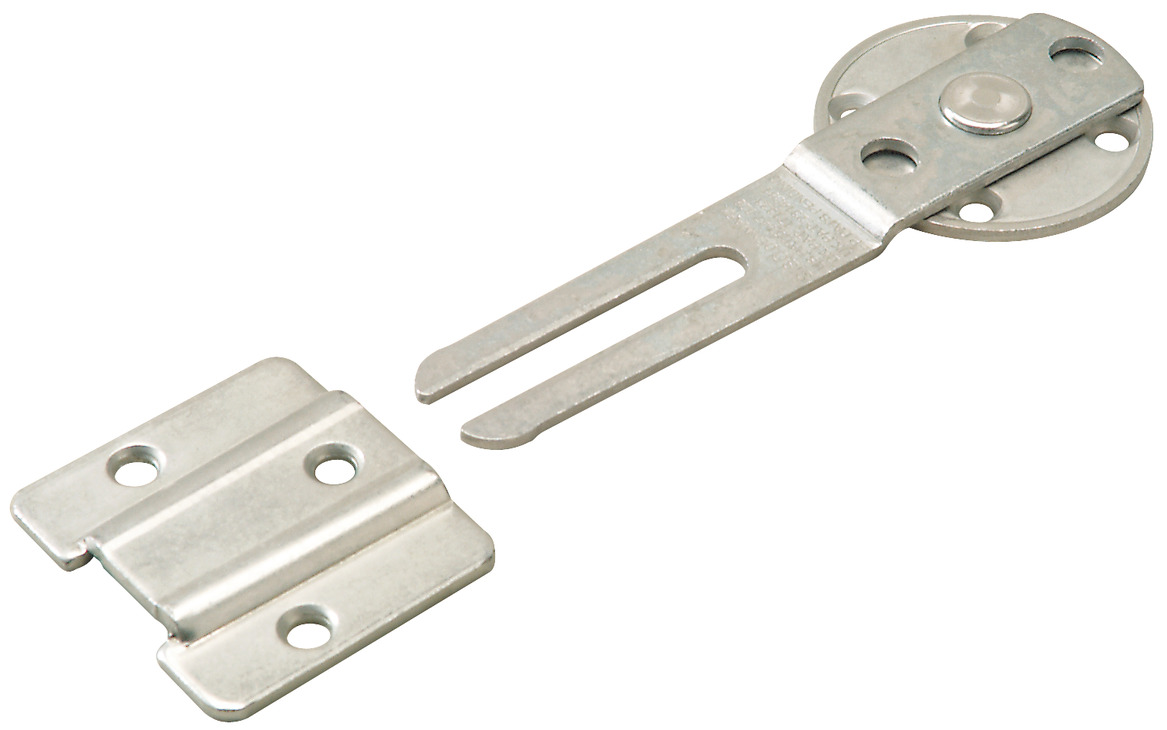

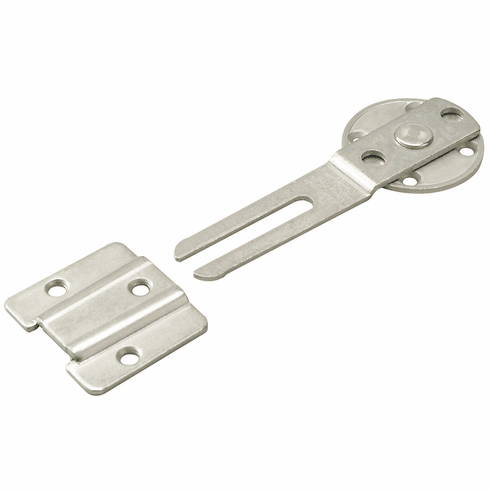

Hafele 642.42.900 Click Catch Connector, steel, zinc-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 642.42.900

  Product Title: Table Top Connector, "Click Catch", For connecting tables, table tops, chairs, beds, etc., steel galvanized, installation height: 9 mm

  Category: Table Top Connector, "Click Catch", For connecting tables, table tops, chairs, beds, etc., steel galvanized, installation height: 9 mm

  Item Details …

  - Clicks together, no tool required for tightening

  - Extremely thin design, will not interfere with leg movement

  - Product type : Table Top Connector

  - Area of application : for connecting tables, table tops, chairs and beds, for separable table tops

  - Color/finish : Zinc-plated

  - Material : Steel

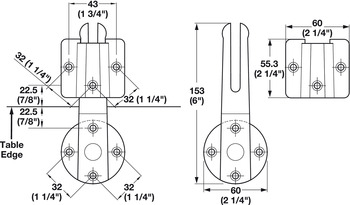

  - Installation height : 9.00 mm

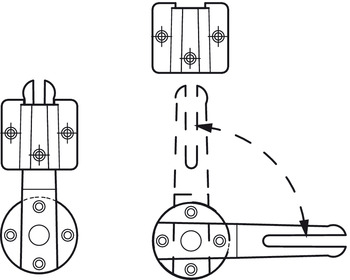

  - Installation reference : Male portion rotates 360° with stops ever 90°

  - Order reference

  - 2 table top connectors must be ordered for one table extension.

  - Supplied with:

  - Male piece

  - Female piece

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.83



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.68-6.69.pdf
