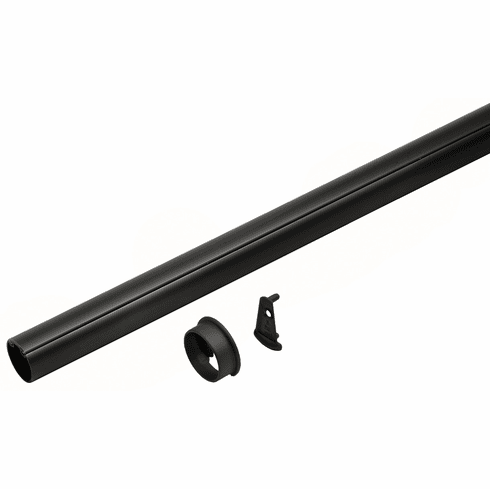

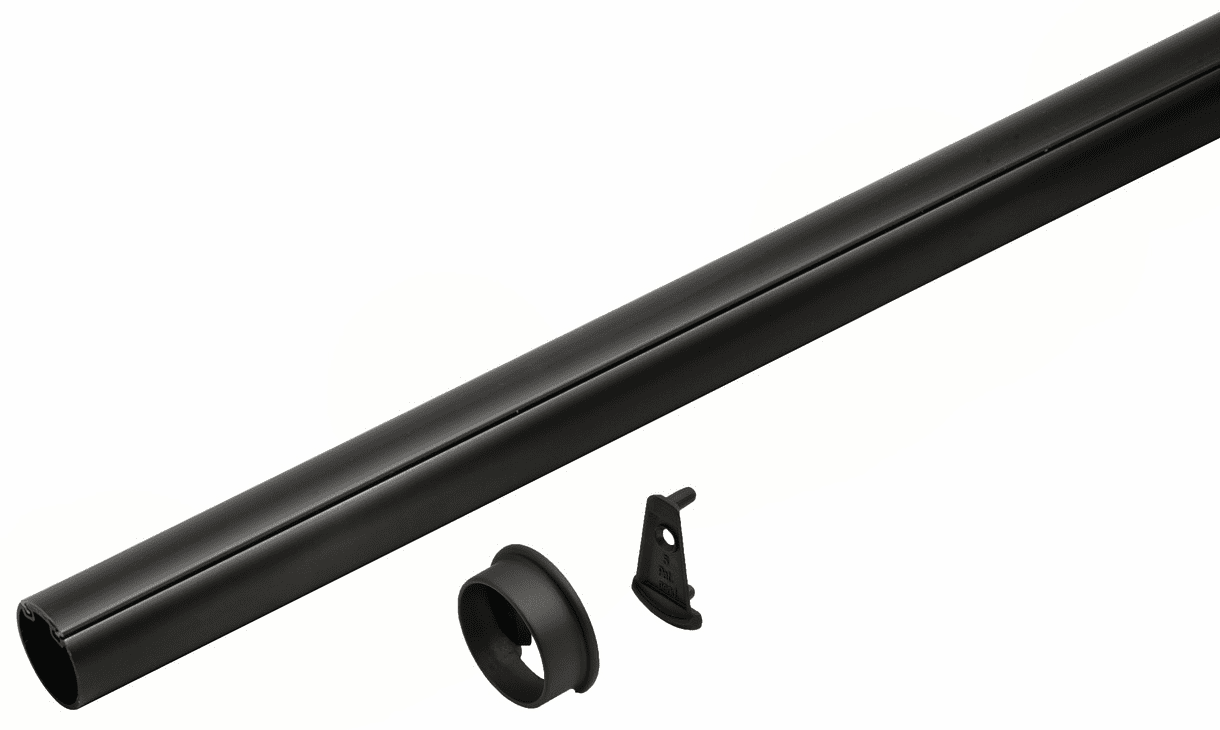

Hafele 801.43.346 Synergy Elite, Wardrobe Tube, aluminum, black, 1 5/16" x (23 3/4") 603mm, with supports

Product Information

• Description

  Manufacturer: Hafele
  Item: 801.43.346

  Product Title: Round Wardrobe Tube with Supports, TAG Synergy Elite Collection, Black protective insert, Black, 23 3/4"

  Category: Round Wardrobe Tube with Supports, TAG Synergy Elite Collection, Clear protective insert

  Item Details �

  - Unique two-part design allows the support to fully surround the tube ends

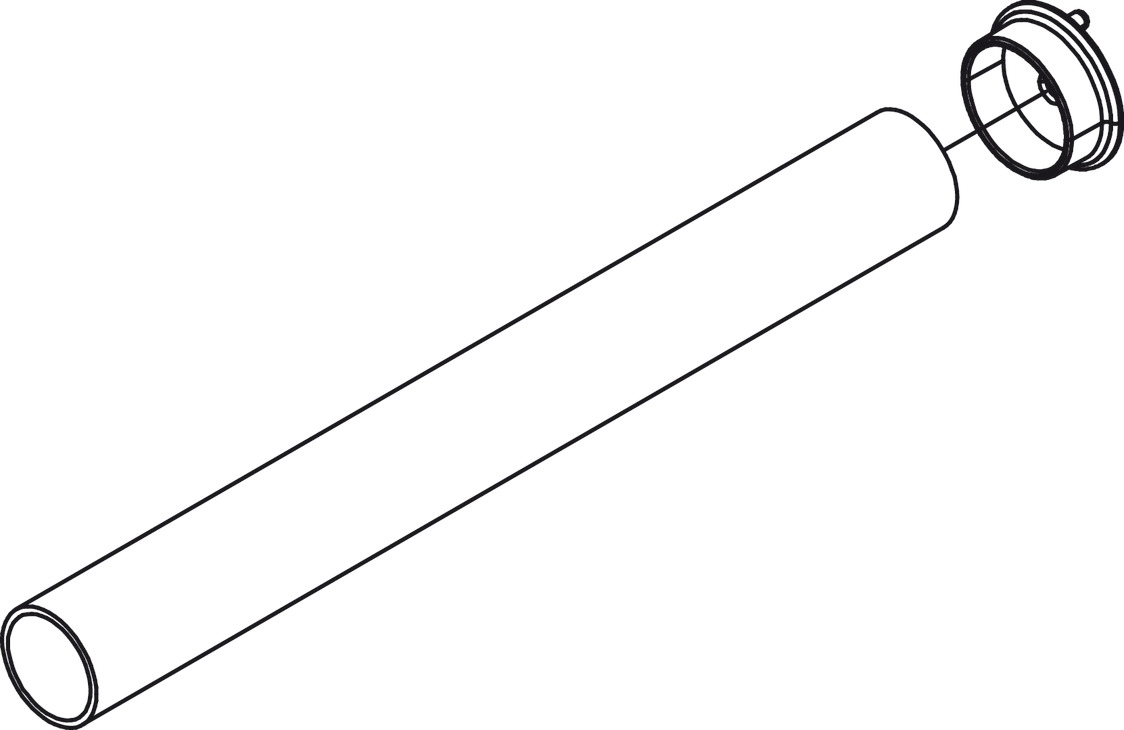

  - Connect the wedge shaped brackets into line bore holes and side supports onto the end of the tube, then side supports onto the wedge shaped brackets

  - With two pins for 5 mm holes

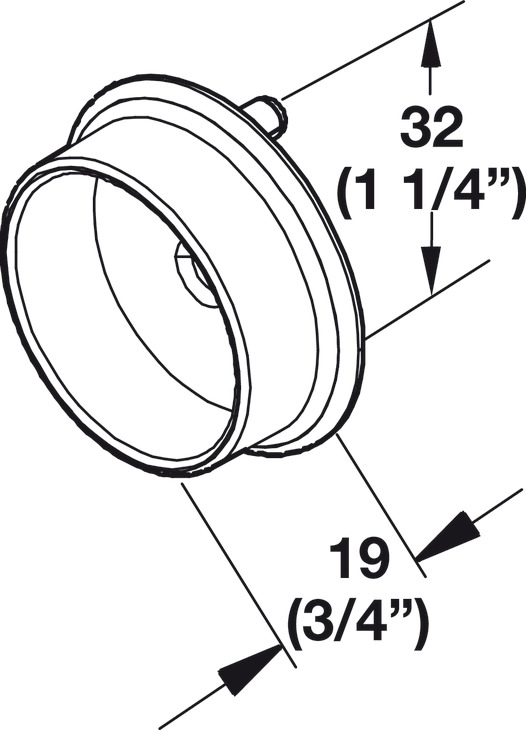

  - 32 mm (1 1/4”) spacing with an additional screw hole for side panel mounting

  - Suitable for : TAG Synergy Elite Collection

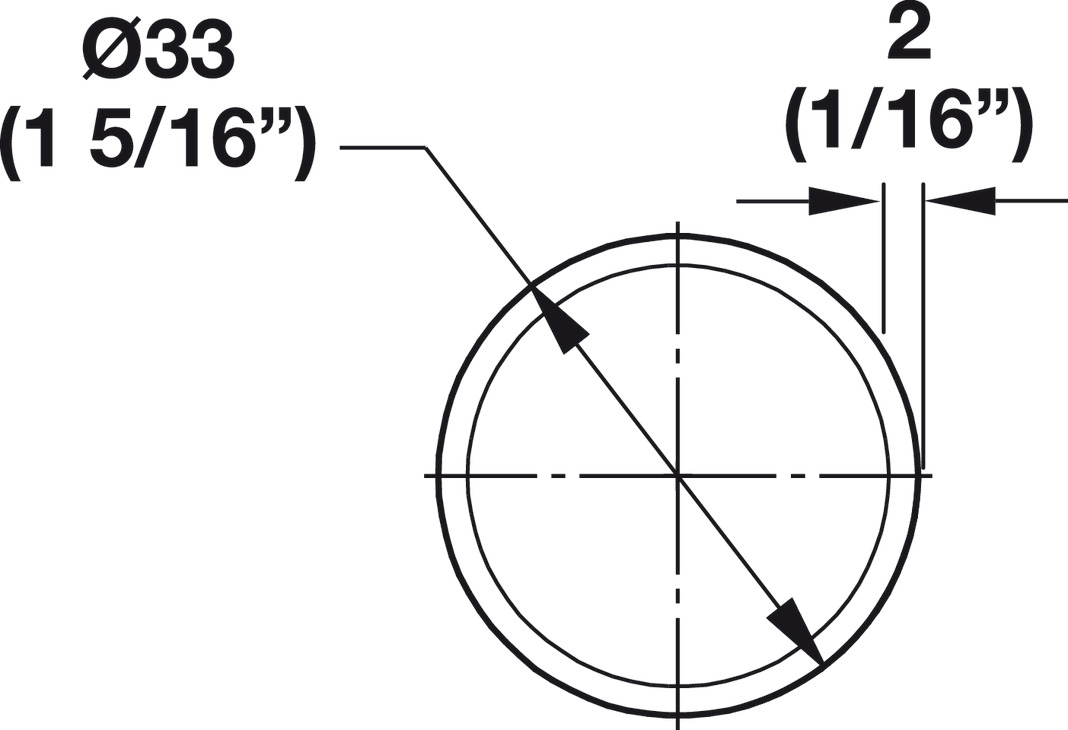

  - Diameter (inch) : 1 5/16"

  - Wardrobe rail type : Straight

  - For wardrobe rail : Round, 33 mm

  - Material : Anodized aluminumInsert: Plastic

  - Version : Round with protective cap

  - Installation : Insertion on top

  - Supplied with:

  - 1 Tube

  - 2 Supports

• Data Sheet

  Detailed Data Sheet

• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
