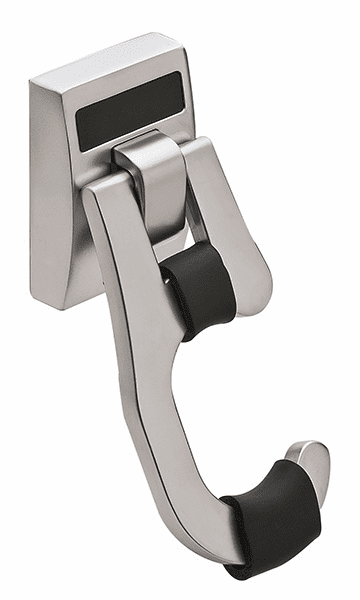

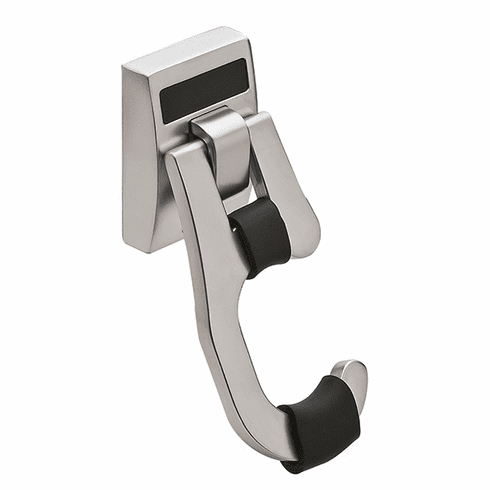

Hafele 807.69.050 Broom Hook, Synergy Elite Collection Matt aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 807.69.050

  Product Title: Broom Hook, TAG Synergy Elite Collection, Matt aluminum

  Category: Broom Hook, TAG Synergy Elite Collection,

  Item Details …

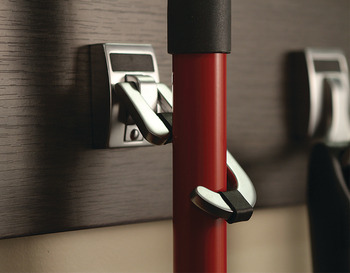

  - Hooks are to be used on customer supplied cleat boards

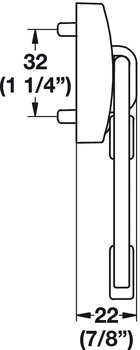

  - There are 5 mm pins on back of base to help pre-install by lining up the hooks on the boards

  - To secure hook to board there are two #8 holes for screws (included). Cover caps (included) conceal screws.

  - Number of hooks : 1.00

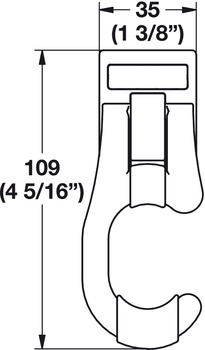

  - Dim. (L x W x H) : 35 x 22 x 109 mm

  - Installation : There are 5 mm pins on back of base to help pre-install by lining up the hooks on the boards

  - Length (inch) : 1 3/8"

  - Width (inch) : 7/8"

  - Height (inch) : 4 5/16"

  - Material : Zinc

  - Supplied with:

  - Screws

  - Cover caps

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.103



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.60-4.61.pdf

  Hafele 807.69.050, 807-69-050, 80769050, 807.69


  Specifications/Hafele Catalog - Page# FC4.34: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Home & Closet Organization Catalog Return to: All Hafele Catalogs
