Hafele 833.05.855 LOOX5 Reed switch, 24V 2.5A with Loox5 2 pin plug, for monochrome ribbon, with magnet

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.05.855

  Product Title: Switch, with In-Line Lead Cable, For Interior Cabinet Lighting, In-line reed switch - Monochrome, 24 V

  Category: Switch, with In-Line Lead Cable, For Interior Cabinet Lighting

  Item Details …

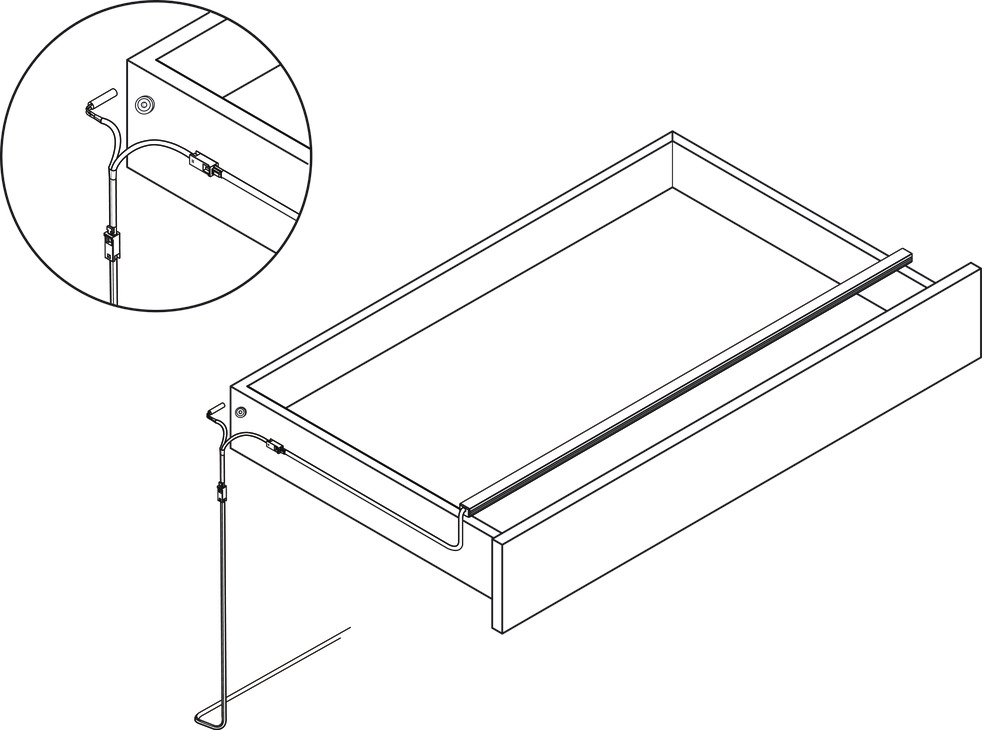

  - Light turns on when cabinet door is opened; when door closes (magnet and reed switch are < 2" apart), the lights will turn off.

  - Ideal for controlling a single light e.g., drawer lights

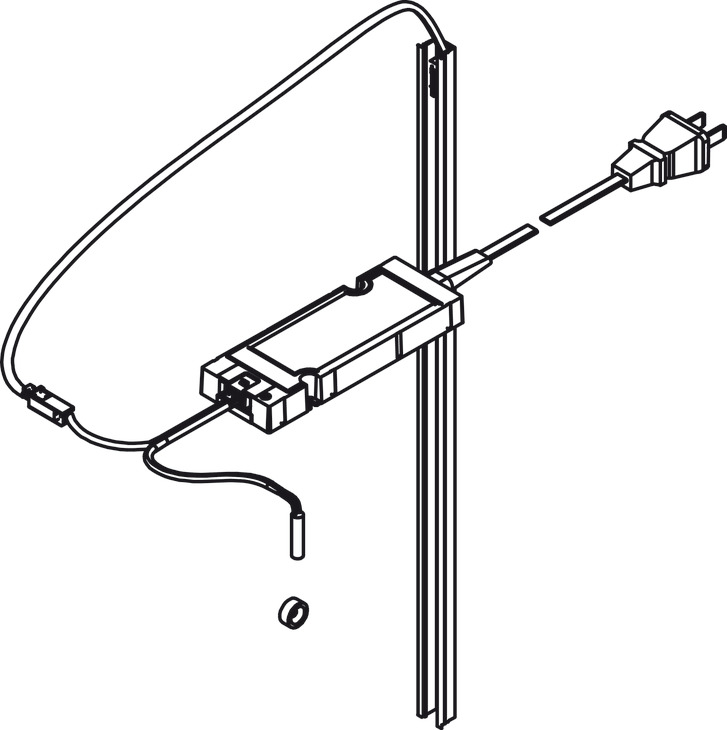

  - Connects directly to a driver or distributor output; the switch port is not required

  - Versions are available in 12V and 24V for monochrome, 2-wire tunable white, and 3-wire tunable white lights

  - Color/finish : Black

  - Nominal voltage : 24 V

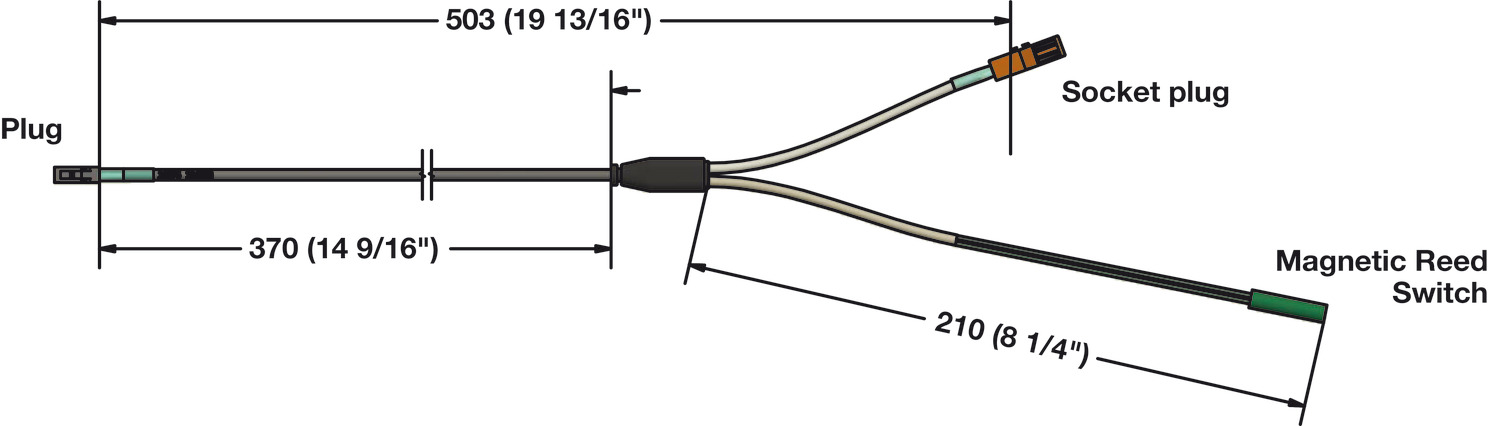

  - Length (inch) : 12"

  - Length : 306.00 mm

  - Material : Plastic

  - Area of application : Interior cabinet lighting

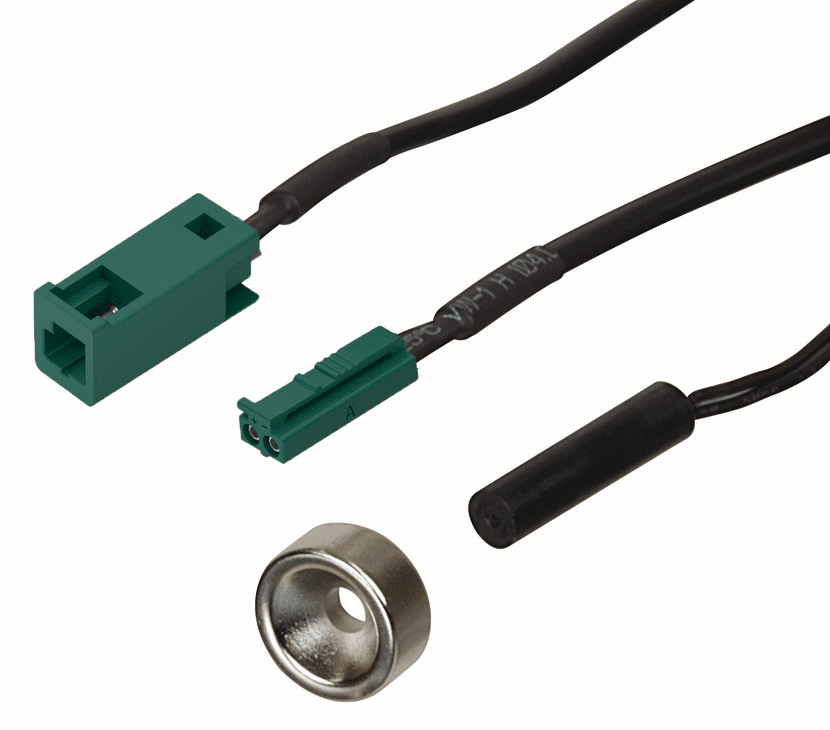

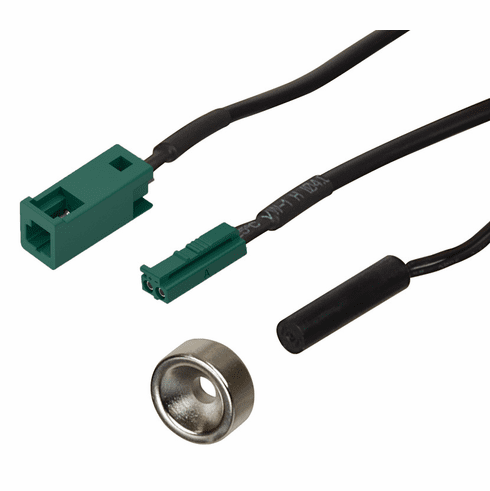

  - Supplied with:

  - 1 magnetic reed switch

  - 1 plug

  - 1 socket

  - 1 magnet

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Hafele_Lighting_2024|Page 232



• Required Products & Optional Accessories

  Optional Accessories:



  • Housing, for Magnetic Reed Switch
