Hafele 833.72.052 Surface Mounted Round Light, Loox LED 2027, 12 V Coolwhite 5000 K,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.052

  Product Title: Surface Mounted Light, Häfele Loox LED 2027, 12 V, Monochrome, Ø 65 mm (2 9/16"), Cool white 5000 K

  Category: Surface Mounted Light, Häfele Loox LED 2027, 12 V, Monochrome, Ø 65 mm (2 9/16")

  Item Details …

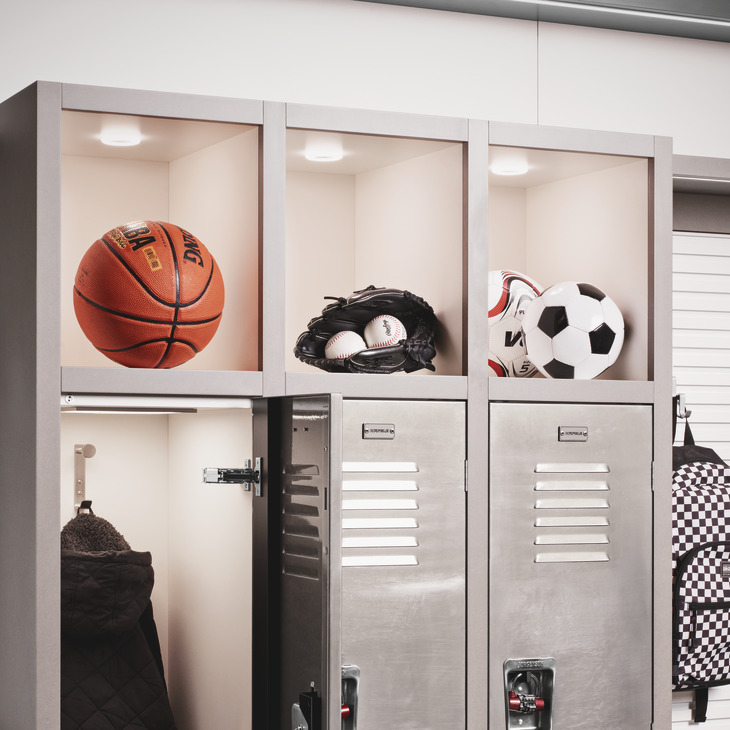

  - This flat surface mounted light can be used extensively

  - The edge is illuminated, without visable diodes, and the hardware is concealed beneath a removable center covers

  - Light color : Cool white

  - Nominal voltage : 12.00 V

  - Wattage : 2.60 W

  - Number of LEDs : 27

  - Diameter : 65.00 mm

  - Housing color/finish : silver colored

  - Installation : Surface mount with screws

  - Height (inch) : 3/8"

  - Diameter (inch) : 2 9/16"

  - Version : Dimmable

  - Dimmable : yes

  - Area of application : ---Cabinets, shelving units, display cabinets, shelves

  - Housing material : Aluminum

  - Diffuser material : Plastic

  - Design : Cover plastic silver colored

  - Dim. (Ø x H) : 65 x 9 mm

  - Color rendering index Ra : 85

  - Energy efficiency class : A+

  - Degree of protection : IP20

  - Installation : Screwing

  - Cable length : 2,000.00 mm

  - Installation reference : This flat surface mounted light can be used extensivelyThe edge is illuminated, without visable diodes, and the hardware is concealed beneath a removable center covers

  - Supplied with:

  - 1 light with 2 m (78 3/4”) lead

  - Mounting screws

  - Fixing materials

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  Installation instructions for Loox LED 2027

  EU Declaration of Conformity

  Loox – Electrical Code Compliance



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Adapter, Loox device – Loox5 driver (choose one):


  • For connecting to Loox5 driver, Voltage: 12 V, max. connected wattage: 42 W, length 50 mm

    833.95.753
