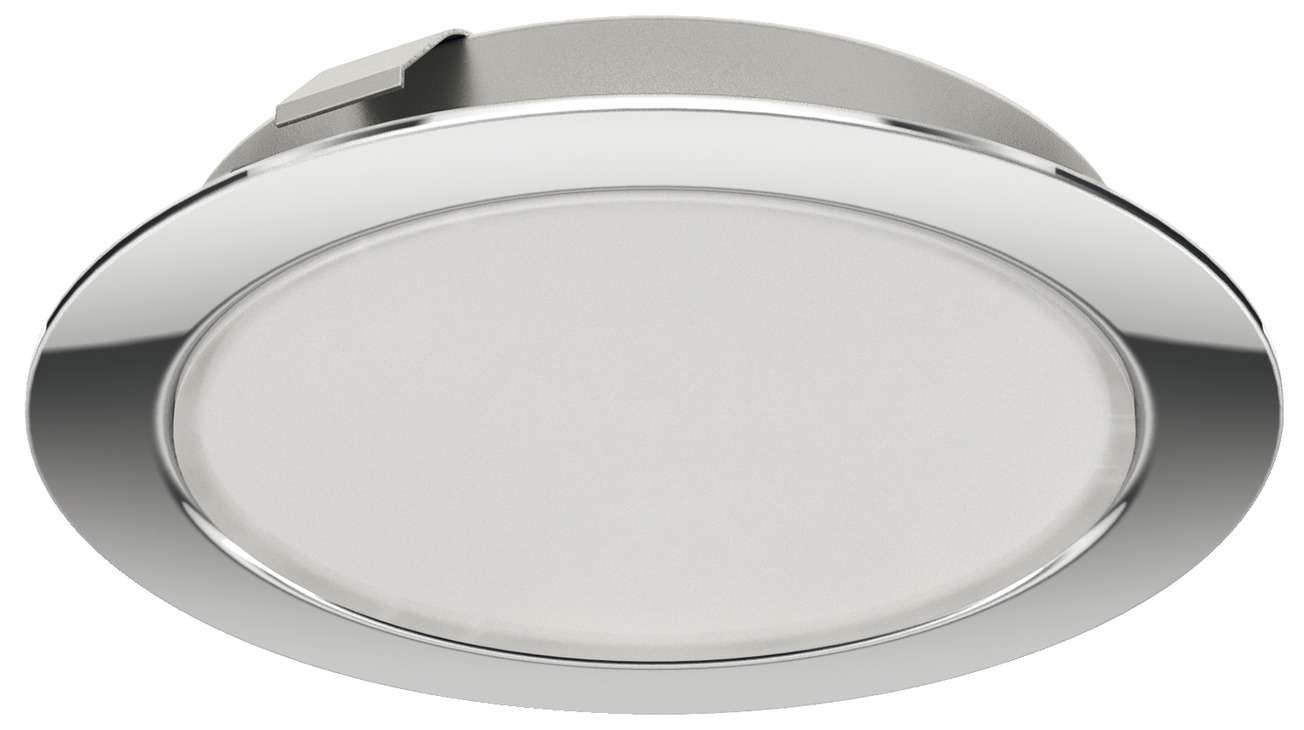

Hafele 833.72.310 Recess/Surface Mounted Light, Multi-White, Loox LED 2048, 12 V Polished chrome,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.310

  Product Title: Recess/Surface Mounted Light, Multi-White, Loox LED 2048, 12 V, Drill hole ?: 55 mm (2 3/16"), Polished chrome

  Category: Recess/Surface Mounted Light, Multi-White, Loox LED 2048, 12 V, Drill hole ?: 55 mm (2 3/16")

  Item Details …

  - The light color can be adjusted continuously from warm white to cool white

  - High-quality metal housing

  - Light color and brightness can be adjusted for any area of the house via multi white mixer

  - Optional surface mounted housing provides flexibility in installation

  - Dimmable via multi white mixer only

  - Multi white mixer can handle up to 30 W; Max. 10 multi white mixers with 1 - 10 remote controls within a radius of 15 m (49’)

  - Color temperature : 2700?–?5,000 K

  - Light color : Warm white to cool white

  - Luminous flux : 255 lm

  - Nominal voltage : 12.00 V

  - Wattage : 3.00 W

  - Luminous efficacy : 85 lm/W

  - Drill hole Ø : 55.00 mm

  - Model : LED 2048

  - Installation : For mounting in drilled hole and for clamp fixing

  - Installation reference : Light color and brightness can be adjusted for any area of the house via multi white mixerOptional surface mounted housing provides flexibility in installationDimmable via multi white mixer onlyMulti white mixer can handle up to 30 W; Max. 10 multi white mixers with 1 - 10 remote controls within a radius of 15 m (49’)

  - Energy efficiency class : G

  - Drill hole Ø : 2 3/16"

  - Height (inch) : 1/2"

  - Dimmable : yes

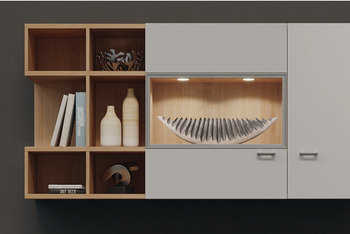

  - Area of application : As ambient light in furniture

  - Housing material : Steel

  - Weighted energy consumption : 3.00 kWh/1000 h

  - Degree of protection : IP45 (recess mounted light); IP20 (surface mounted downlight)

  - Cable length : 2,000.00 mm

  - Order reference

  - Color control via Häfele Connect Mesh 6-way distributor with multi-white adapter and remote control or smartphone. Please order separately.

  - Installation of the free Häfele Connect Mesh app is required.

  - Supplied with:

  - 2 m (78 3/4”) lead


  Additional Information …

  The degree of protection IP45 is reduced to IP20 when using housing for undermounted light.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for LED 2048

  EU Declaration of Conformity

  Loox – Electrical Code Compliance



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Adapter, Häfele Loox5, multi-white, for Häfele Connect Mesh 6-way distributor (choose one):


  • for Häfele Connect Mesh 6-way distributor, 60 W, Voltage 12 V, max. connected wattage 60 W

    833.95.745

    Click to order



  Optional Accessories:



  • Surface Mounted Ring, for Loox LED 2020/2047/2048/3038/3039
  • Remote control, Häfele Connect Mesh
  • Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome)
