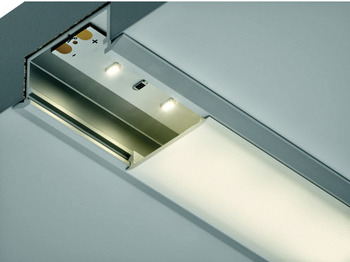

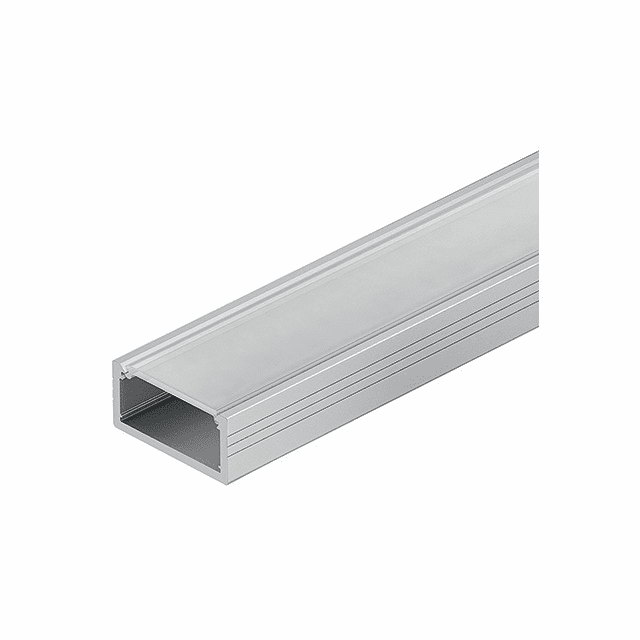

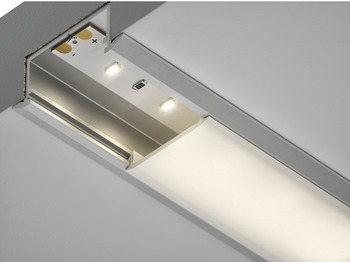

Hafele 833.72.860 Aluminum Profile, for Surface Mounting, Shallow For Loox LED 2013/2015/2029/2037/3015, Cover: Milk

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.860

  Product Title: Aluminum Profile, Häfele Loox5 Profile 2109/2191, for LED strip lights, for Surface Mounting, Cover: Milk

  Category: Aluminum Profile, Häfele Loox5 Profile 2109/2191, for LED strip lights, for Surface Mounting

  Item Details …

  - Please note the dimensions of the clip connector

  - LED 3015 is not rated for continuous duty (less than 8 hours)

  - Please note shallow profiles are not suitable for operation with LED 3028

  - LED points are always visible when this profile is used.

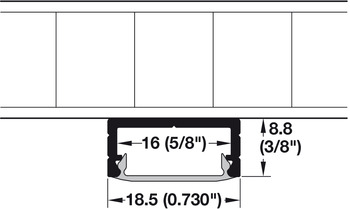

  - Length : 2,500.00 mm

  - Length (inch) : 98 3/8"

  - Height (inch) : 3/8"

  - Width (inch) : 3/4"

  - Material : Profile: Aluminum, Diffuser: Plastic

  - Installation : Screwing onto

  - Supplied with:

  - 1 profile

  - 1 diffuser


  Additional Information …

  Milk cover: The material contains pigment.- Creates a “diffused glow” surface-directed light with uniform intensity- The light appears “soft”Frosted cover: The surface is frosted-The light appears “velvet-white” and creates a sophisticated, high-quality impression

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Installing a Surface Mount Profile for LED Lighting

  Hafele_Lighting_2024|Page 216



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Flexible Strip Light, Loox LED 3015, 24 V
  • Retaining Clip, for Häfele Loox 2190-2192
  • Square End Cap, For Häfele Loox Profile 2190
