Hafele 833.76.333 LED3044, 24 volts direct current 4.8 watts per meter 2700K-5000K CRI90 50 meters
, 83376333, 833-76-333 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 833.76.333

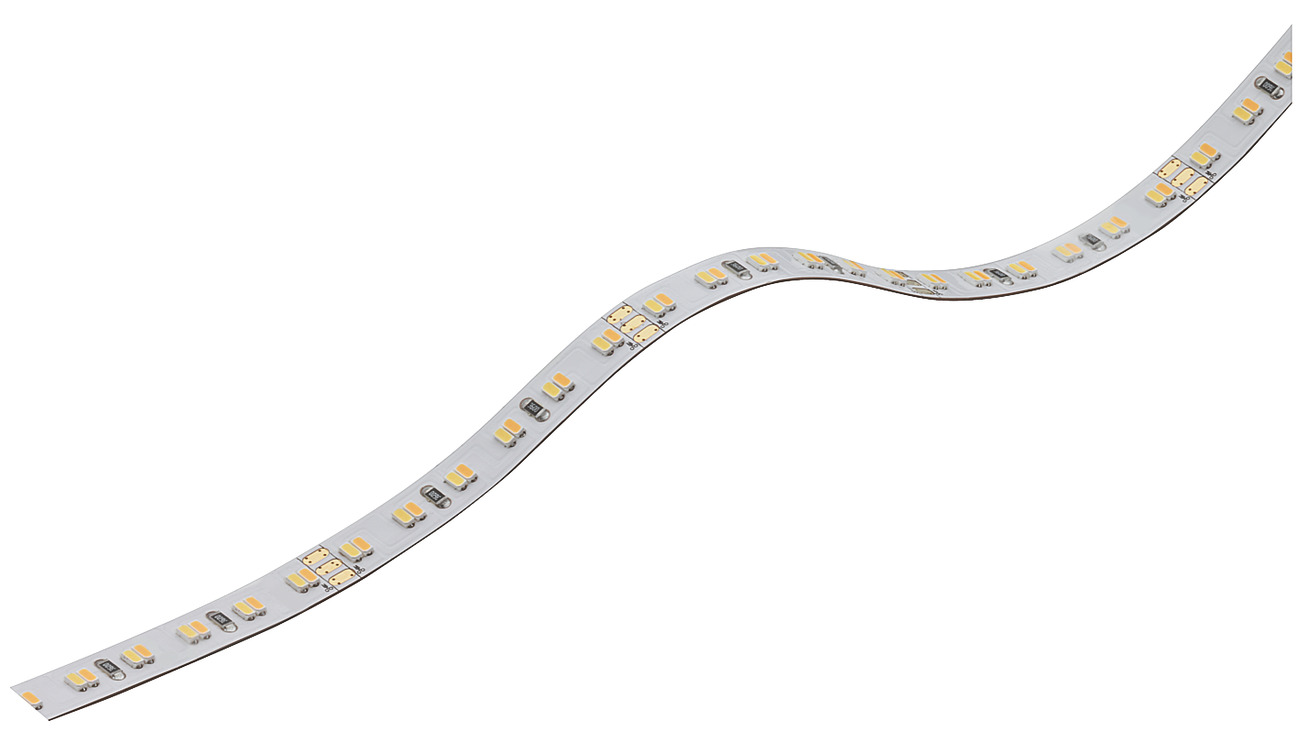

Product Title: Flexible Strip Light, Häfele Loox5 LED 3044, 24 V, multi-white, (5/16") 8 mm, 2 x 120 LEDs/m, 4.8 W/m, Warm white 2700 K to cool white 5000 K, (1968 1/2") 50 m
Category: Flexible Strip Light, Häfele Loox5 LED 3044, 24 V, multi-white, (5/16") 8 mm, 2 x 120 LEDs/m, 4.8 W/m
Item Details …
-
- Optimized light mixture
-
- Cool white and warm white LEDs in the smallest of spaces
- Optimal light mixture without flickering
- Color temperature : 2700?–?5,000 K
- Light color : Warm white to cool white
- Nominal voltage : 24.00 V
- Wattage/m : 4.80 W

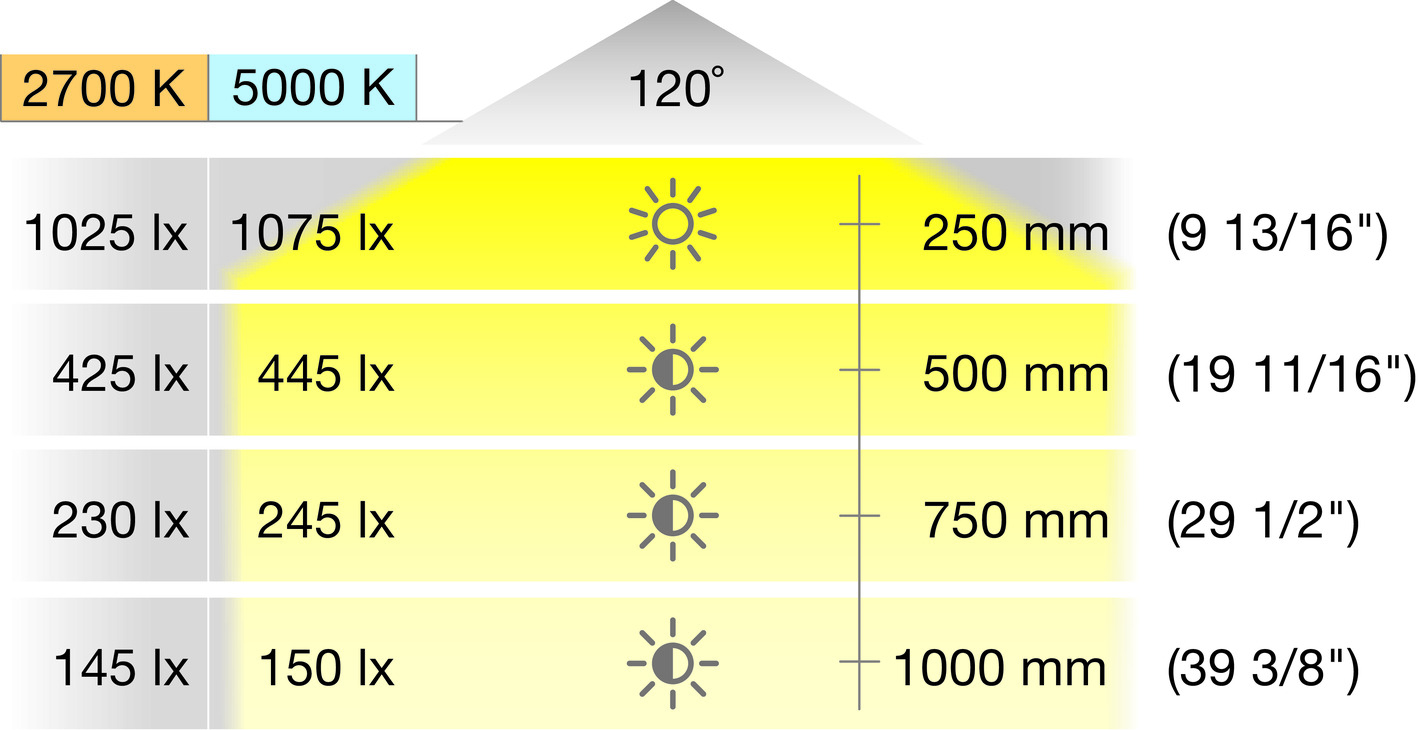

- Luminous flux/m : 425?–?465 lm
- Luminous efficacy : 89?–?97 lm/W
- Max. strip length (visual) : 8.50 m
- Energy efficiency class : F
- Height (inch) : 1/16"
- Width (inch) : 5/16"
- Dimmable : yes

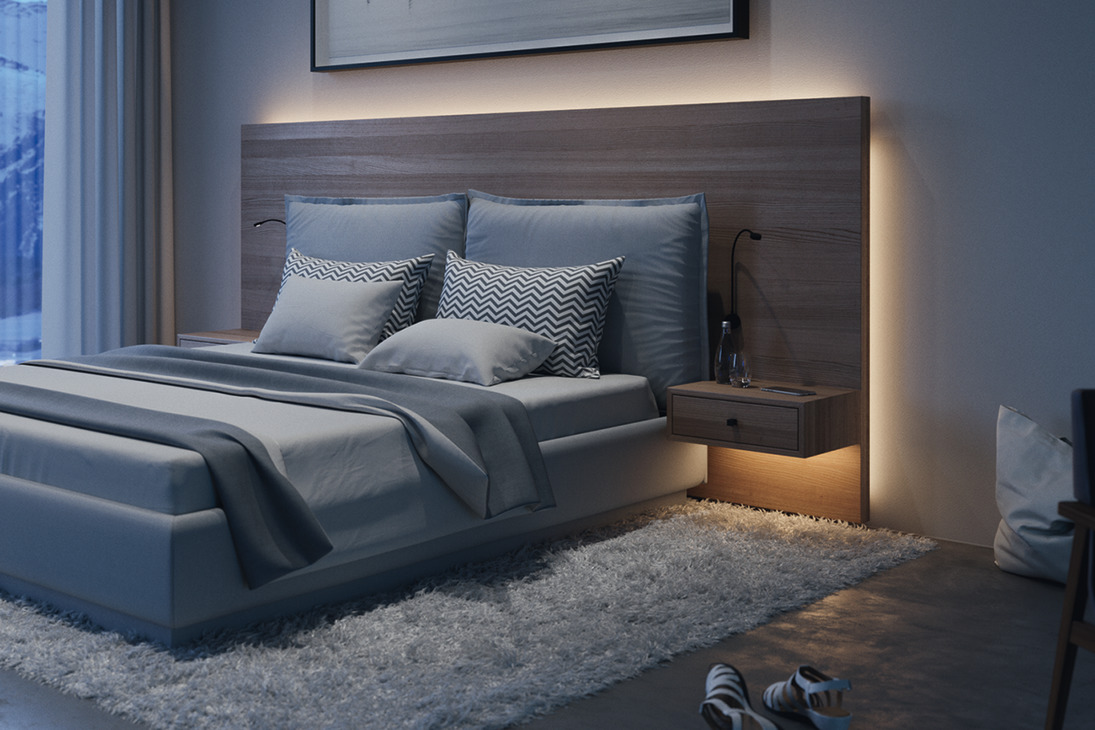

- Area of application : Plinths, behind furniture and objects, Ceiling light direct/indirect
- Material : Plastic
- Color : White
- Strip width : 8.00 mm
- Section length : 50.00 mm
- Life time : L80/B10: >50,000 h
- Color rendering index Ra : >90
- Color rendering index R9 : >50
- Degree of protection : IP20
- Installation : Self-adhesive
- Order reference
- Please order lead separately. Color control via Häfele Connect Mesh 6-way distributor with multi-white adapter and remote control or smartphone. Please order separately. Installation of the free Häfele Connect Mesh app is required.
- Supplied with:

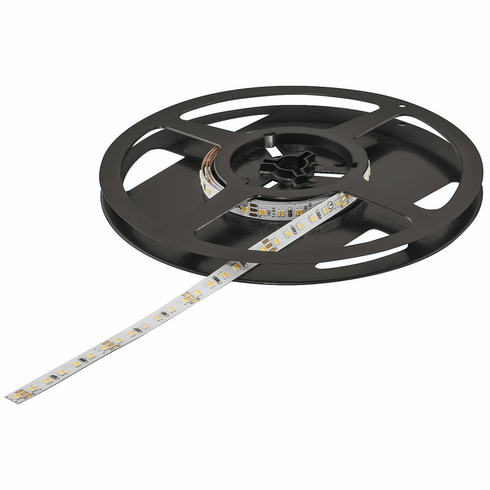

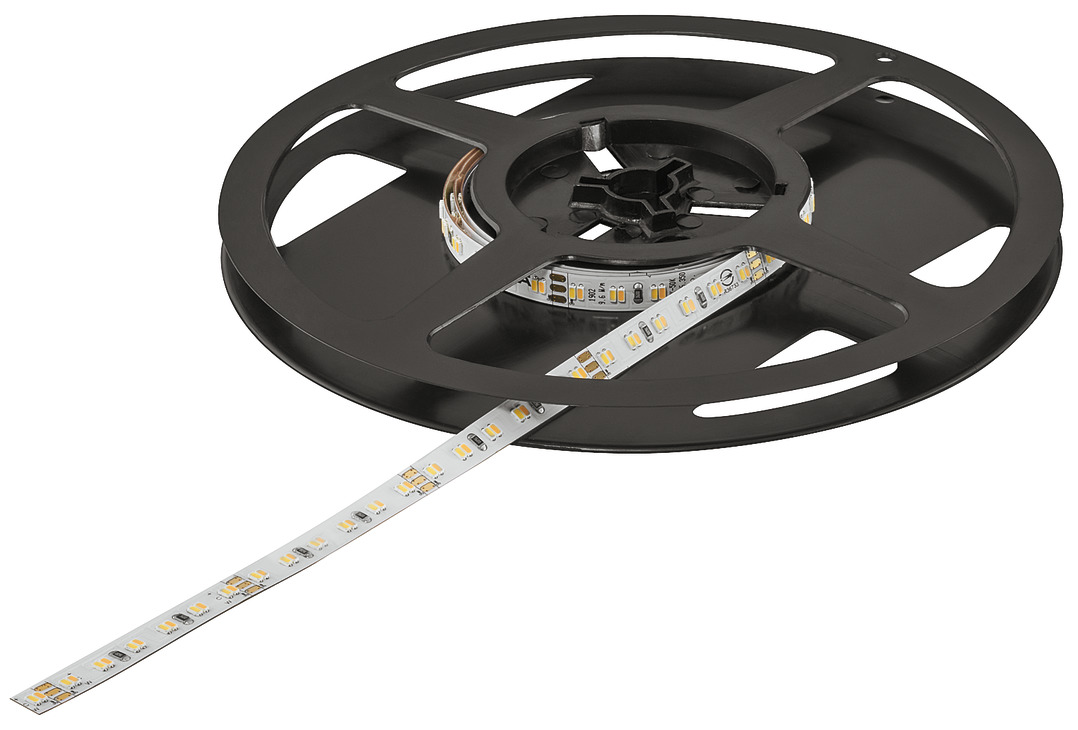

- 1 roll
Additional Information …
Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.Data Sheet
Product Resources
Required Products & Optional Accessories
Note: Add the current product in cart before ordering required products below ...
Required Products:
Lead, Häfele Loox5 for LED-Band multi-white (5/16") 8 mm, 24 V, AWG 20 (choose one):Clipbreite 10 mm, Length: 100 mm (4")
Clip width 10 mm, Length: 2000 mm (78 3/4")833.93.743
833.95.708Click to order
Click to order
Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome) (choose one):with programmable switching input, Voltage 24 V, max. connected wattage 90 W 850.00.043 Click to order
Adapter, Häfele Loox5, multi-white, for Häfele Connect Mesh 6-way distributor (choose one):For Häfele Connect Mesh 6-way distributor, Voltage 24 V, max. connected wattage 90 W 833.77.830 Click to order
Optional Accessories:- Interconnecting lead, Häfele Loox5 for LED strip light, multi-white, (5/16") 8 mm
- Clip connector, Häfele Loox5 for LED strip light, multi-white, 8 mm (5/16")
- Corner connector, Häfele Loox5 for LED strip light, multi-white, 8 mm (5/16")
- Remote control, Häfele Connect Mesh
- Wall mounted push button, Häfele Connect Mesh
