Hafele 833.76.341 LED3045 24 volt direct current 9.6 watts per meter 5000K CRI90 50 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.76.341

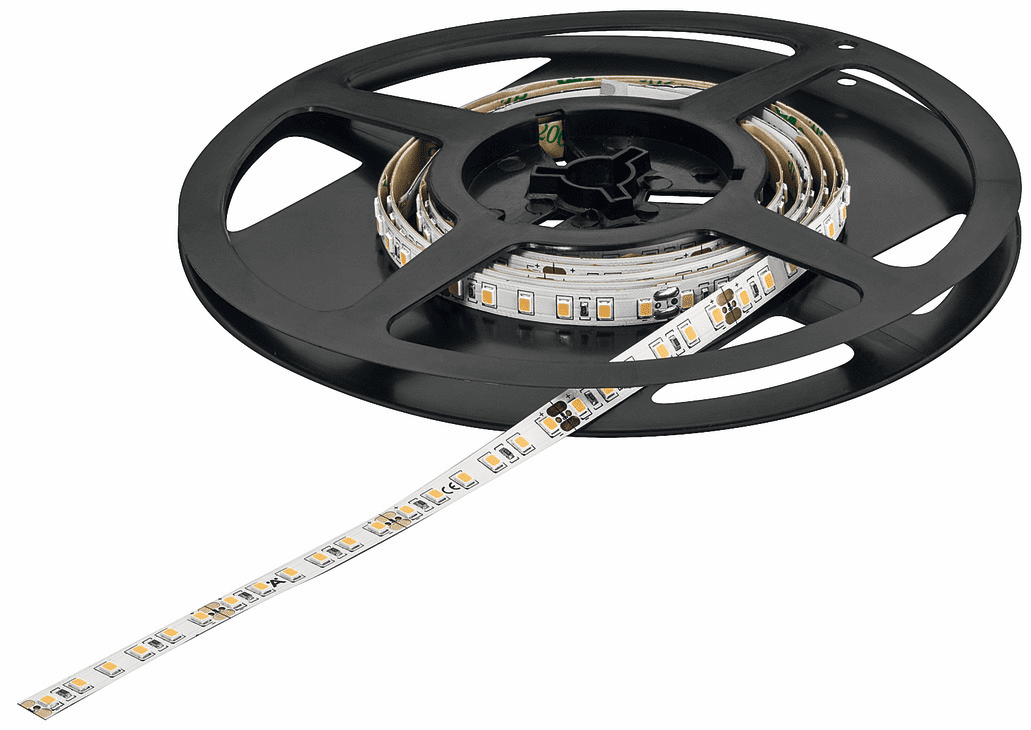

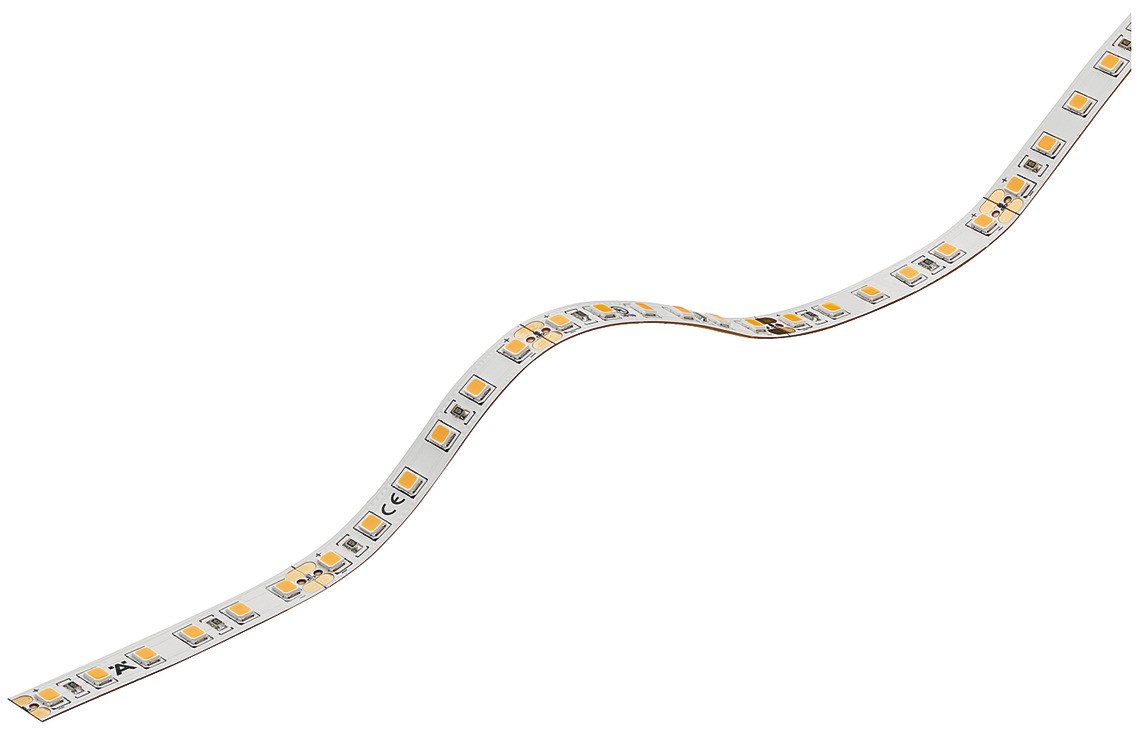

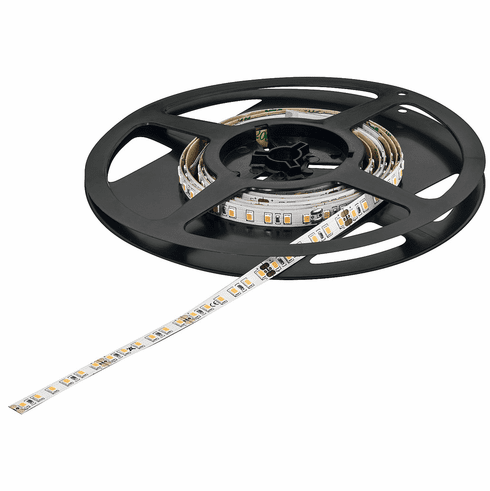

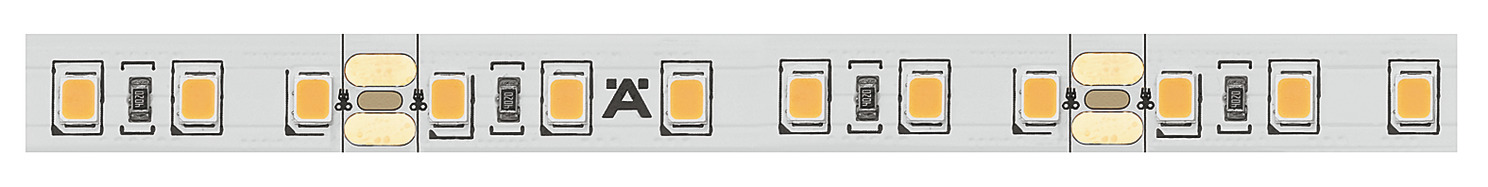

  Product Title: Flexible Strip Light, Häfele Loox5 LED 3045, 24 V, monochrome, (5/16") 8 mm, 120 LEDs/m, 9.6 W/m, cool white 5000 K, 50 m, energy efficiency class F

  Category: Flexible Strip Light, Häfele Loox5 LED 3045, 24 V, monochrome, (5/16") 8 mm, 120 LEDs/m, 9.6 W/m

  Item Details …

  - Equipped with high-quality Samsung® LEDs

  - Nominal voltage : 24.00 V

  - Wattage/m : 9.60 W

  - Max. strip length (visual) : 8.00 m

  - Energy efficiency class : F

  - Height (inch) : 1/16"

  - Width (inch) : 5/16"

  - Dimmable : yes

  - Area of application : Storage spaces, Working areas, Reading areas

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Section length : 50.00 mm

  - Contact surface length : 4.00 mm

  - Life time : L80/B10: >50,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately.

  - Aluminum profile is recommended from 9.6 W/ m.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox Strip Lights Mounting Instructions

  Safety Notes for LED Strip Lights

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 111



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), AWG 18 (choose one):


  • 5 A, 18 AWG, clip width 10 mm, Length: 100 mm (4"), 5 A/18, 24V 5 A, 18 AWG, clip width 10 mm, Length: 2,000 mm (78 3/4"), 5 A/18, 24V 5 A, 18 AWG, clip width 10 mm, Length: 500 mm (19 11/16"), 5 A/18, 24V

    833.75.743 833.95.706 833.95.707

    Click to order Click to order Click to order



  Optional Accessories:



  • Interconnecting lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Clip connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Corner connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Remote control, Häfele Connect Mesh
  • Wall mounted push button, Häfele Connect Mesh
  • Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
