Hafele 833.76.344 LED3046 24 volts direct current 9.6 watts per meter 4000K CRI90 5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.76.344

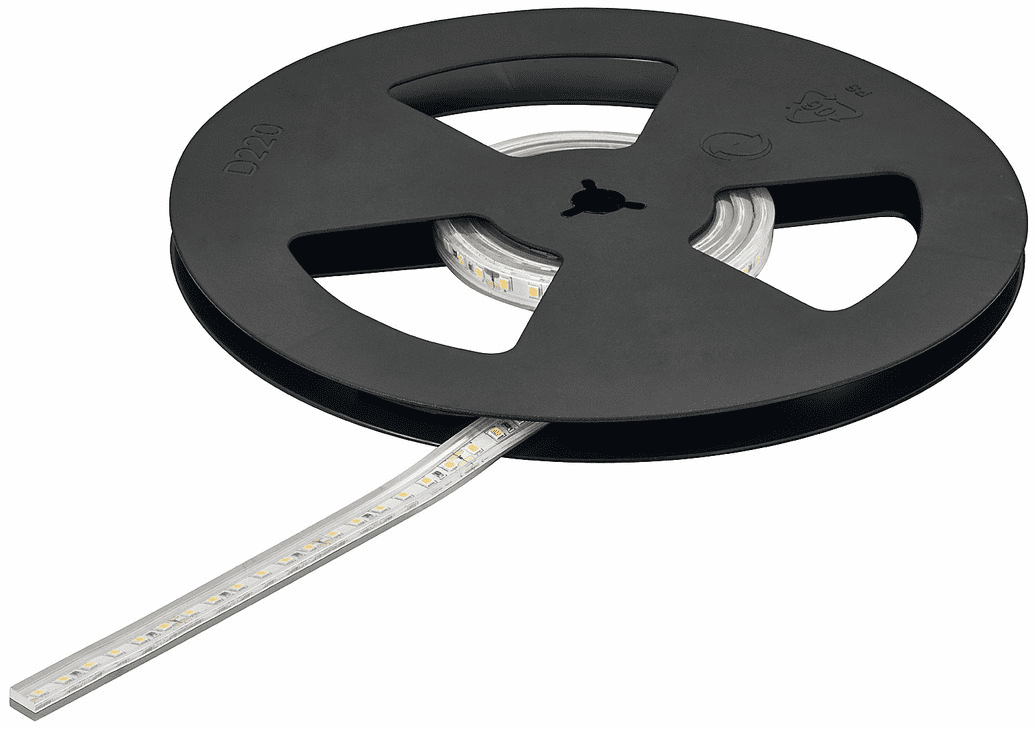

  Product Title: LED strip light with silicone sleeve, Häfele Loox5 LED 3046, 24 V, monochrome, (5/16") 8 mm, 120 LEDs/m, 9,6 W/m, Cool white 4000 K, (196 7/8") 5 m available length

  Category: LED strip light with silicone sleeve, Häfele Loox5 LED 3046, 24 V, monochrome, (5/16") 8 mm, 120 LEDs/m, 9,6 W/m

  Item Details …

  - Equipped with high-quality Samsung® LEDs

  - Nominal voltage : 24.00 V

  - Wattage/m : 9.60 W

  - Max. strip length (visual) : 8.00 m

  - Height (inch) : Strip: 1/16", silicone sleeve: 3/16"

  - Width (inch) : Strip: 5/16", silicone sleeve: 3/8"

  - Dimmable : yes

  - Area of application : Stairs, Mirror, Bathroom (zone 2), Wash basins

  - Material : Silicone

  - Color : White

  - Silicone tube width : 10.00 mm

  - Silicone hose height : 4.80 mm

  - Strip width : 8.00 mm

  - Section length : 50.00 mm

  - Contact surface length : 4.00 mm

  - Life time : L80/B10: >50,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP44

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.For maximum wattage-dependent strip length at the driver, see technical data for LED strip lights.If required, you can implement an IP20 version with leads, interconnecting leads and clip connectors for Häfele Loox5 8 mm monochrome LED strip lights, see accessories for LED strip lights monochrome 8 mm.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Loox5 LED 2063 / 3043 / 3046

  Safety Notes for LED Strip Lights

  UL Certificate E473379 - US

  Loox – Electrical Code Compliance



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Häfele Loox5, for LED silicone strip light, monochrome, (5/16") 8 mm (choose one):


  • IP44, Length: 2000 mm (78 3/4"), 5 A/18 AWG, 24 V

    833.95.709

    Click to order



  Optional Accessories:



  • Clip connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Corner connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Interconnecting lead, Häfele Loox5, for LED silicone strip light, monochrome, 8 mm (5/16")
  • End cap set, Häfele Loox5 for LED strip light in 8 mm silicone sleeve
  • Silicone Stripping Tool, for Häfele Loox5 LED silicone strip lights
  • Remote control, Häfele Connect Mesh
  • Wall mounted push button, Häfele Connect Mesh
  • Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
