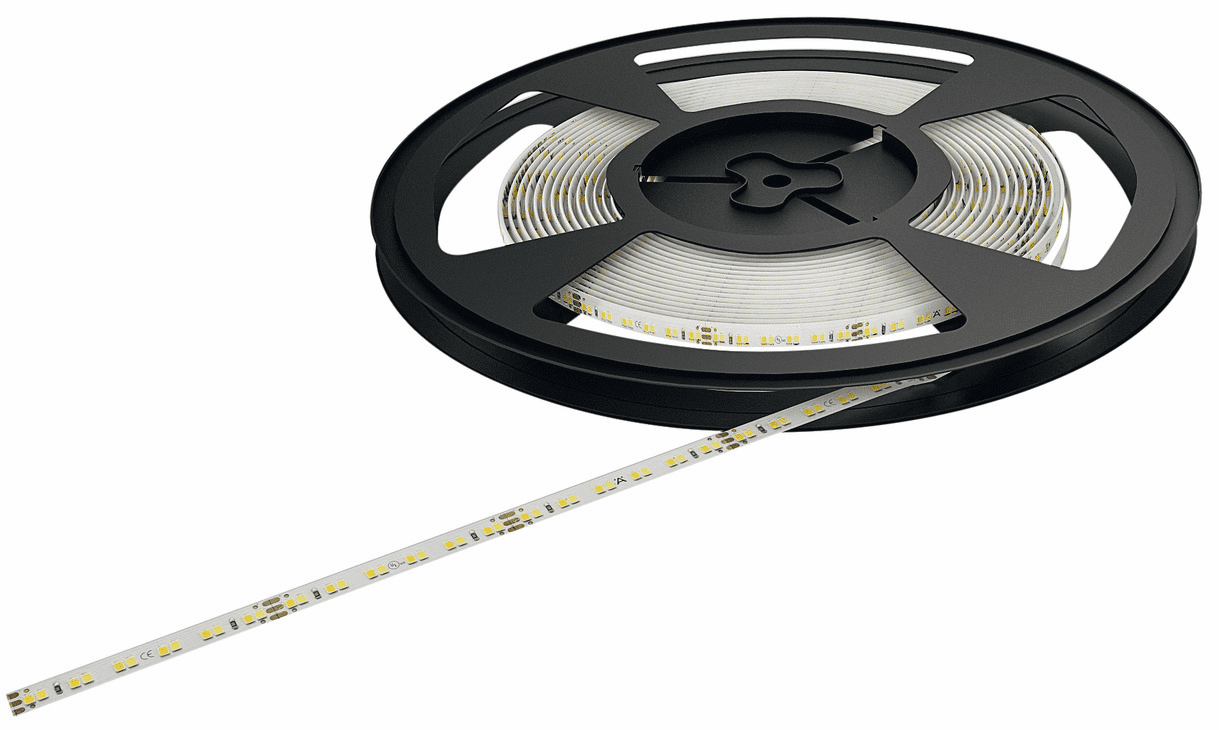

Hafele 833.77.200 LED Strip Lights, Loox LED 3032, 24 V 2 x 84 multi-white LEDs/m, 13 W/m,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.77.200

  Product Title: LED Strip Lights, Loox LED 3032, 24 V, 2 x 84 multi-white LEDs/m, 13 W/m, Light color: Warm white 2700 K to cool white 5000 K, 5,000 mm

  Category: LED Strip Lights, Loox LED 3032, 24 V, 2 x 84 multi-white LEDs/m, 13 W/m, Light color: Warm white 2700 K to cool white 5000 K, 5,000 mm

  Item Details …

  - The perfect light color and brightness can be adjusted via multi-white mixer

  - Dimmable

  - Color temperature : 2700?–?5,000 K

  - Light color : Warm white to cool white

  - Nominal voltage : 24.00 V

  - Wattage/m : 13.00 W

  - Luminous efficacy : 100 lm/W

  - Strip length : 5.00 m

  - Dimmable : yes

  - Area of application : For Retrofitting

  - Material : Plastic

  - Color : White

  - Strip width : 10.00 mm

  - Strip height : 1.30 mm

  - Section length : 71.00 mm

  - Energy efficiency class : A+

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Cable length : 2,000.00 mm

  - Order reference

  - Please note the max. permitted strip light length when ordering components and drivers.

  - Supplied with:

  - 5 meter roll with 2 m (78 3/4”) lead


  Additional Information …

  Color temperature can be adjusted with multi-white color mixer with remote control. Max. 10 color mixers can be freely combined with 1–10 remote controls within a range of 15 m per installation.The light is connected to the Loox multi-white mixer 24 V with a multi-white lead. The lead of the multi-white mixer can be extended with standard Loox leads.It is not recommended to control multi-white LEDs and multi-white silicone strip lights jointly with one multi-white color mixer as the light colors vary slightly due to the silicone coating.Alternative control: Häfele Connect with BLE box and app

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for LED 3032 (3.5 A/20 AWG)

  EU Declaration of Conformity

  Loox – Electrical Code Compliance

  Installation instructions for LED 2029/2045/2043/2037
